Carbine Picatinny Rails

The Cadex 4.2″ and 6″ Carbine Picatinny Rails attach to the handguard of the M4/C8 Carbine or M16/C7 rifle to provide a sturdy Picatinny rail for mounting grips, lasers and other accessories. Also, fit AR15s equipped with an A2 handguard. The rail’s base is angled to match the handguard taper.

Features

  • Rails can be installed on the top and bottom of the handguard to provide multiple mounting points.

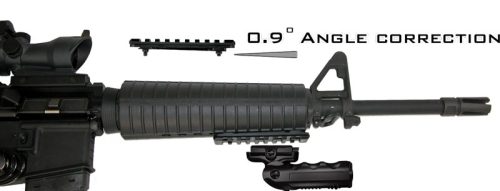

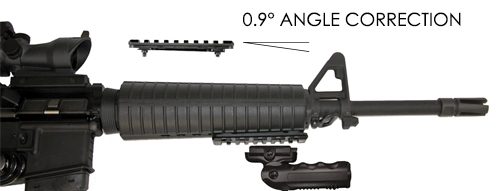

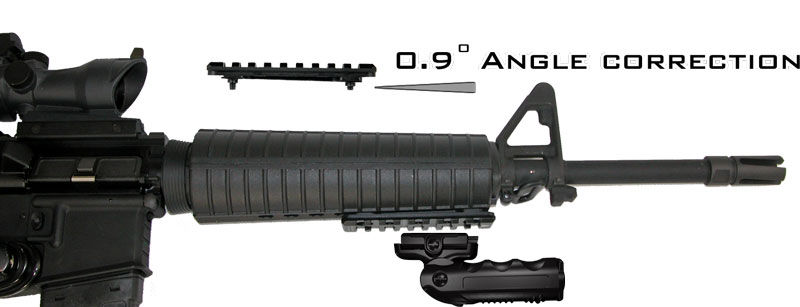

  • The rail’s base is angled to match the handguard taper.
  • Made from lightweight aluminum.

For more information, please refer to our Catalog (pdf-format or flipbook), or contact us at customerservice@cadexinc.com

For more information, please refer to our Catalog (pdf-format or flipbook), or contact us at customerservice@cadexinc.com

Specifications

4.2″ CARBINE PICATINNY RAIL

Part#: CMR-418-01 (NSN#: 1005-20-002-9377)

Dimensions: 4.2″ x 0.83″ x 0.56″ | 10.66 x 2.11 x 1.43 cm
Weight (±) : 0.07 lbs | 32 grams
Material: 6061-T6 aluminum

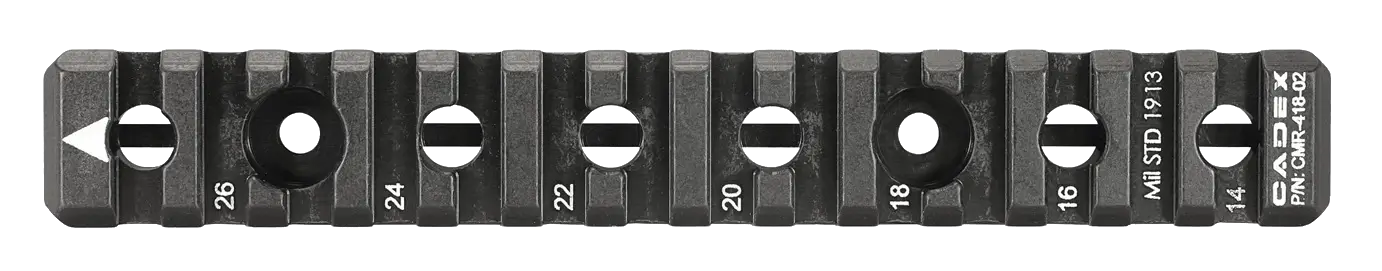

6″ CARBINE PICATINNY RAIL

Part#: CMR-418-02

Dimensions:6″ x 0.83″ x 0.56″ | 15.24 x 2.11 x 1.43 cm
Weight (±) :0.09 lbs | 43 grams
Material:6061-T6 aluminum
