MX2-ST Tactical Muzzle Brakes

The new Cadex MX2 Self Timing Muzzle Brake design comes from the need to offer a muzzle brake small enough to fit inside a compact suppressor design. Cadex has moved away from crush washers in favor of a locking ring, allowing you to install and remove the MX2 with the included wrench quickly and easily. The end of the muzzle brake is tapered to perfectly align the compact suppressor. The MX2 Self Timing Muzzle Brake is lightweight while maintaining enough performance to control the muzzle jump on the rifle. Multiple bore sizes are available from .30 to .33. Comes standard on the CDX-R7 SHP Series rifles.

FEATURES

  • Ultra-solid Stainless 416.
  • Deflects the muzzle blast away from the shooter.
  • Gases exit sideways to reduce felt recoil and improve rifle control.
  • Self-Timing

For more information, please refer to our Catalog (pdf-format or flipbook), or contact us at customerservice@cadexinc.com

For more information, please refer to our Catalog (pdf-format or flipbook), or contact us at customerservice@cadexinc.com

Specifications

MX2-st Muzzle brake (5/8-24 BARREL THREAD)

Part#: 3850-228-ST

*Fits all calibers up to .338
Dimensions: 2.250″ x 0.995″ (5.7 x 2.4 cm)
Weight: 0.21 lbs (95 grams)
Suppressor Thread: 1-24
Bore: 0.380″
Max Barrel Dia: 0.865″
Material: Stainless Steel 416

MX2-st Muzzle brake (3/4-24 BARREL THREAD)

Part#: 3850-229-ST

*Fits all calibers up to .338
Dimensions: 2.250″ x 0.995″ (5.7 x 2.4 cm)
Weight: 0.17 lbs (78 grams)
Suppressor Thread: 1-24
Bore: 0.380″
Max Barrel Dia: 0.865″
Material: Stainless Steel 416

MX2-ST 50BMG muzzle brake

The Cadex MX2-ST 50BMG Tactical muzzle brake is designed to adapt to the compact 50BMG suppressor. The MX2-ST secures the barrel muzzle threads and its self-timing lock nut stops the rotation in the desired position using the provided wrench. The compact 50BMG suppressor screws on the 4 port design muzzle brake external threads, until it sits firmly on the muzzle brake tapered end. This allows for the perfect alignment of the suppressor with the bore and seals the burnt gases.

Specification

MX2-ST 50bmg Muzzle brake (1-14 BARREL THREAD)

Part#: 3850-439-ST

*Fits all calibers up to .50
Dimensions: 4.750″ x 1.500″ (12 x 3.81 cm)
Weight: 0.90 lbs (410 grams)
Suppressor Thread: 1  1/2-12
Bore: 0.562″
Max Barrel Dia: 1.135″
Material: Stainless Steel 416

*  Recommended use: CDX-50 Tremor® Tactical 20.6″
* Maximum recoil reduction effectiveness is achieved only
when combined with the compact 50BMG suppressor

For more information, please refer to our catalog or contact us at customerservice@cadexinc.com

Available Colors

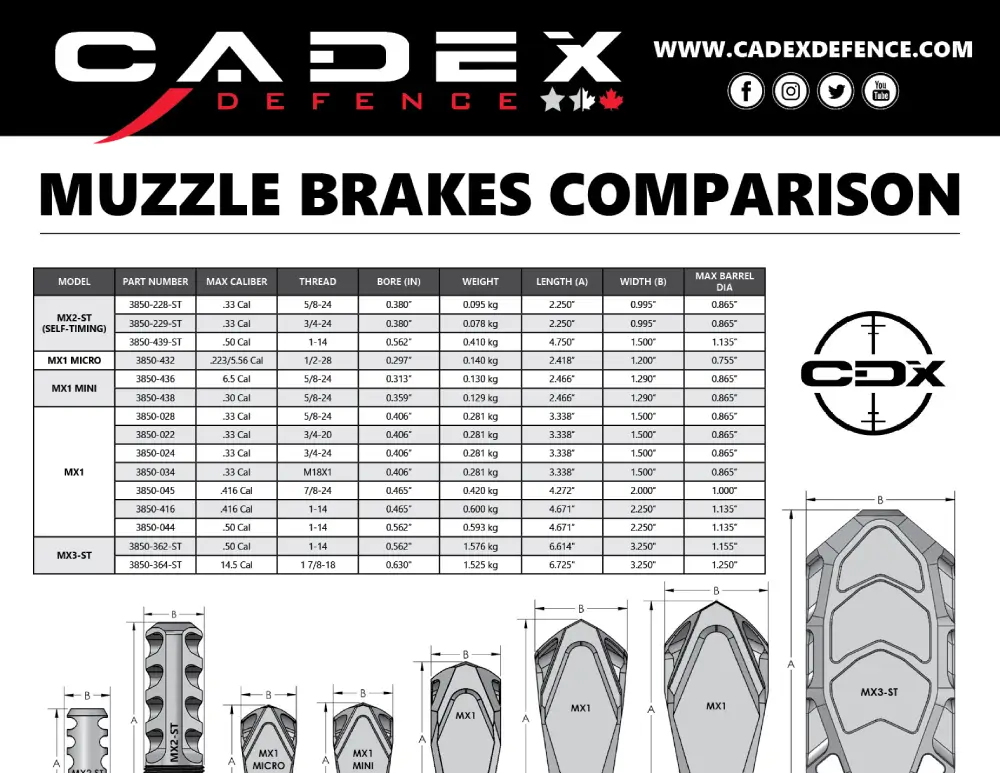

Comparison Table
