M2 CRADLE MOUNT
The Cadex M2 cradle mount has been developed to provide an easy-to-operate and affordable mounting solution for the Browning M2.

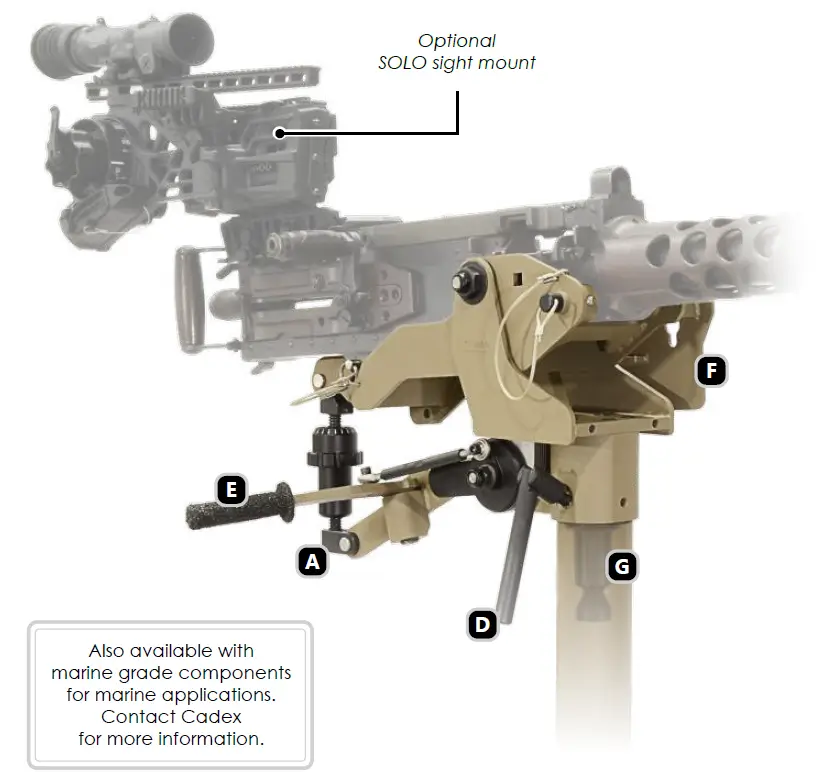

FEATURES
A: Micro-adjustable elevation system with 1 mil increment per click.

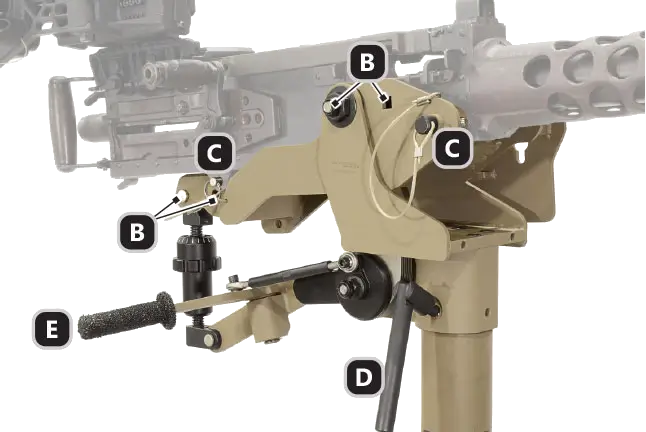

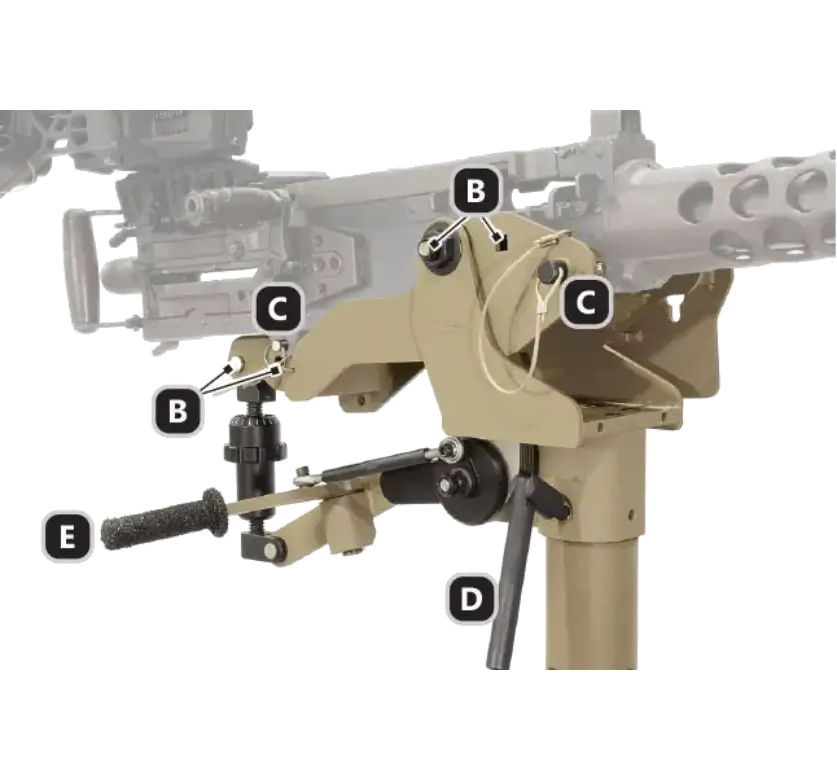

B: 2-point balanced mounting system. SOLO Optic enhancement package ready.
C: Blackened stainless steel Machine Gun mounting pins.
D: User-friendly threaded traverse locking mechanism.
E: Responsive clutch locking elevation mechanism.

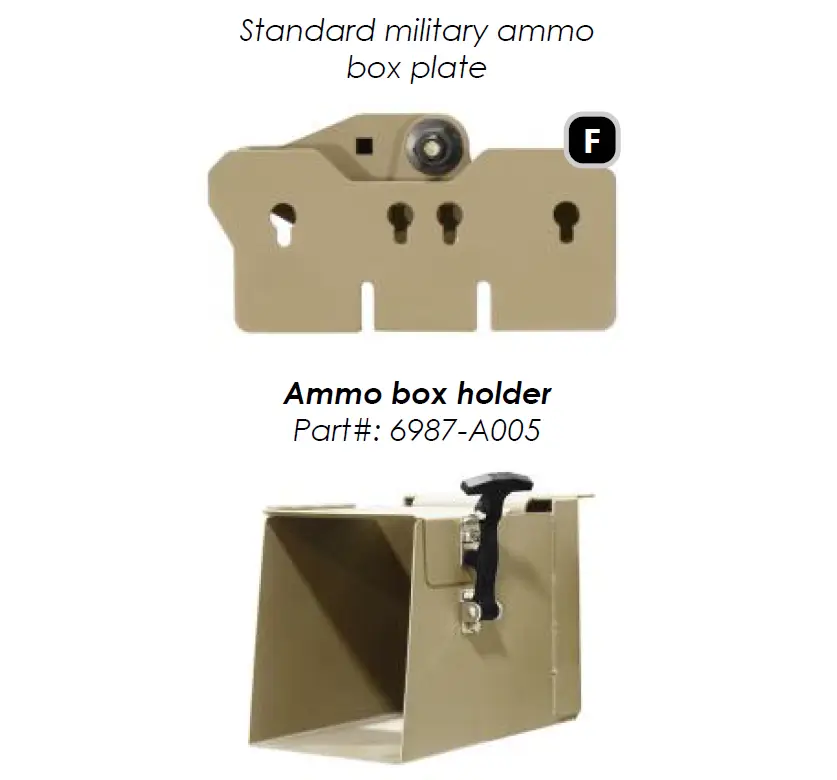

F: Standard military ammo box plate.
G: Standard M2 pintle adaptor.

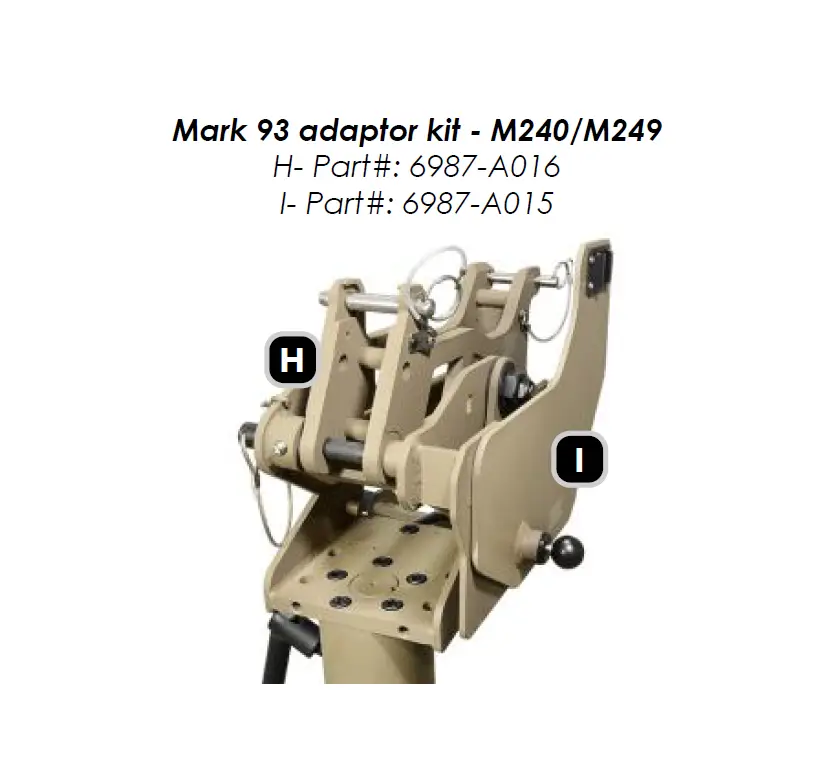

H: Mark 93 Adaptor Kit – M240/M249.
I: M249 ammo box adaptor plate.
*Available on special request for
grenade machine gun

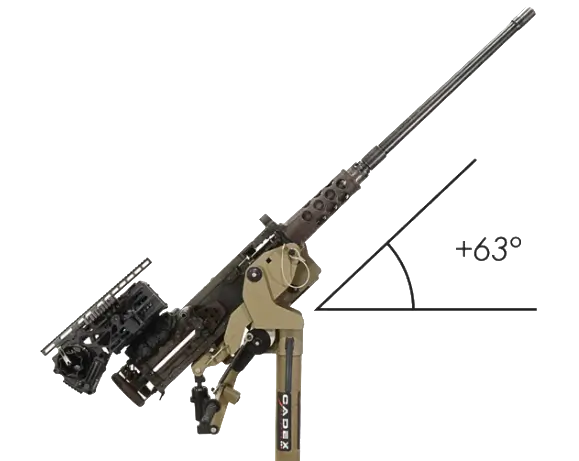

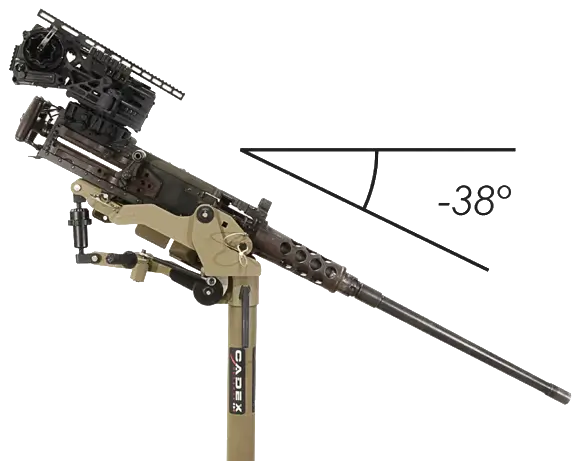

MAXIMUM ELEVATION RANGE
For more information, please refer to our store or contact us at customerservice@cadexinc.com
Specifications
M2 Cradle Mount
Part#: 6987-A100
| Dimensions: | 20″ x 13.75″ x 15″ | 50.8 x 34.93 x 38.1 cm |
| Weight (±) : | 50.1 lbs | 22 725 grams |
| Material: | Steel / Cerakote Paint |
