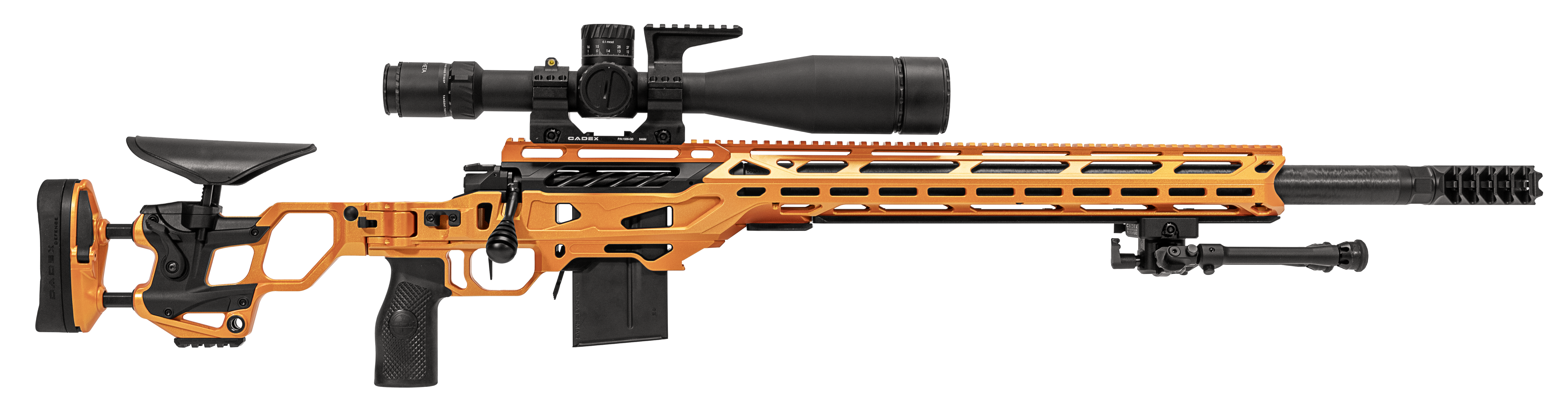

CDX-30 X-LITE
*Riflescope, scope mount, bipod, tripod adaptor and AES rail are sold separately.
The new CDX-30 X-LITE was meticulously designed with a singular mission in mind: to be the most visually stunning rifle Cadex has crafted in the last decade. As you know, Cadex has built its reputation on creating firearms with distinctive aesthetics and an unmatched appearance and this model continues that legacy.
RIFLE STOCK FEATURES

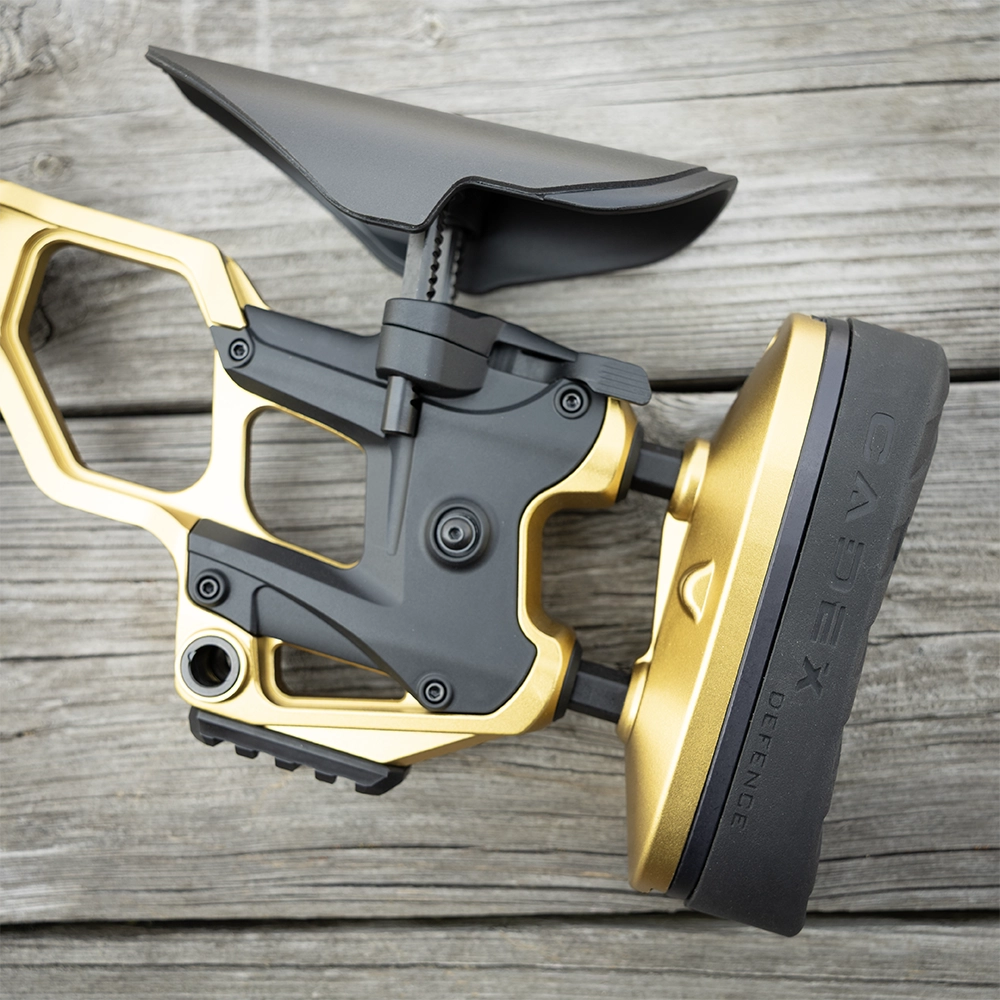

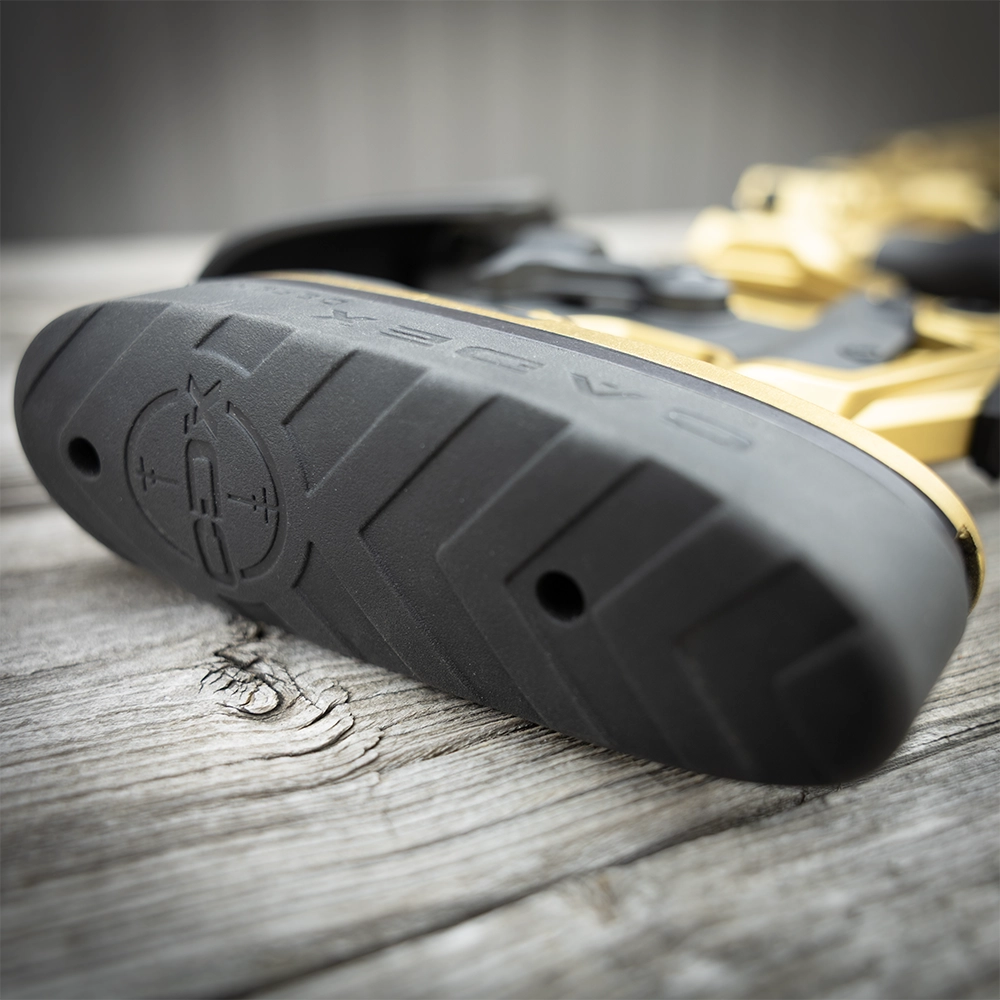

Standard recoil pad
Part#: 175-00087-BLK
The Cadex Recoil Pads is designed to deliver comfort and stability with every shot. Whether you’re on the range or in the field, this pad reduces felt recoil, improving overall shooting performance and comfort.

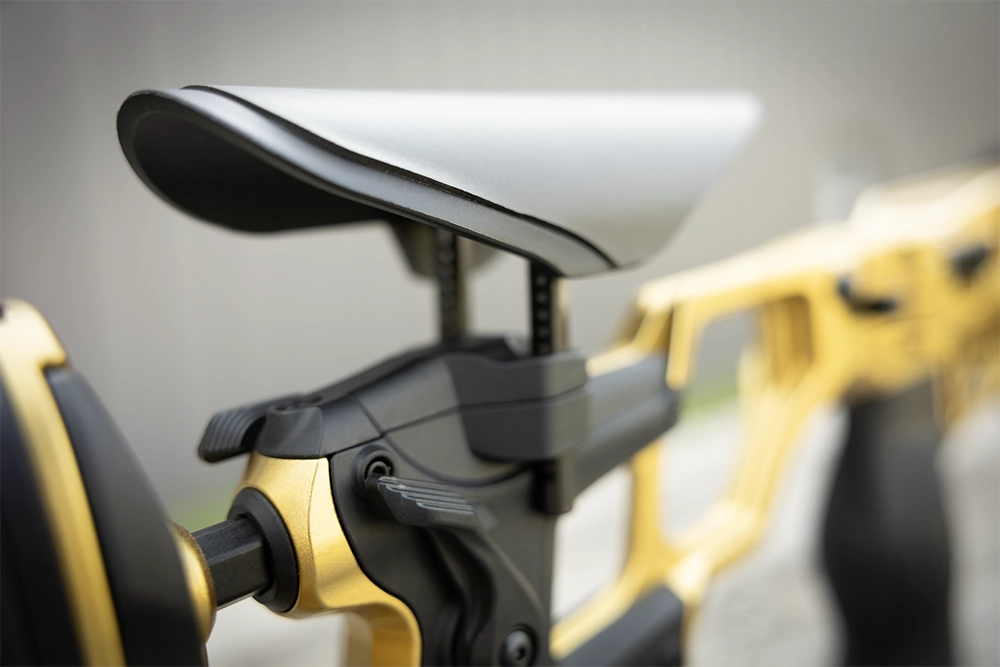

Neoprene cheek pad
Part#: 03127-693-N18
The Neoprene Cheek Pad offers enhanced comfort and durability for precision rifle users. Crafted from high-quality neoprene, this cheek pad enhances cheek weld, reduces fatigue, and improves consistency in your shooting position.

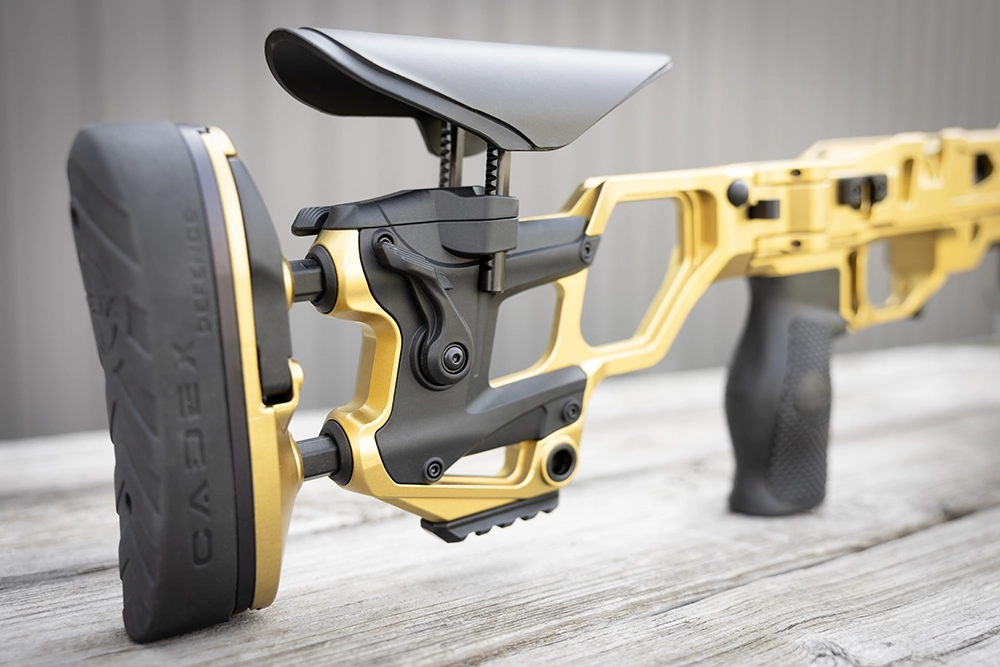

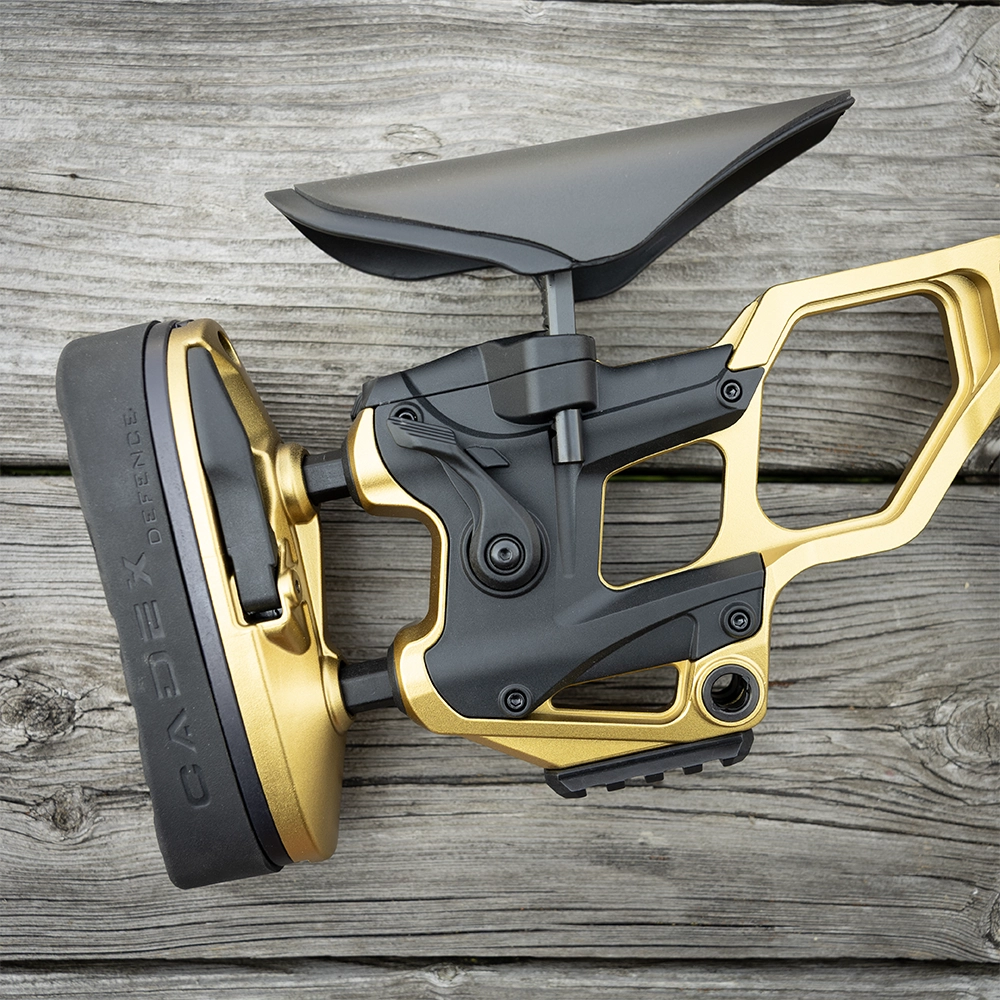

Pro buttstock
Part#: 03127-A205
The Cadex PRO Buttstock features a lightweight, durable design with tool-free adjustment for length of pull, cheek riser height, and butt pad position. Its rigid folding hinge and slim profile provide exceptional stability, comfort, and control.

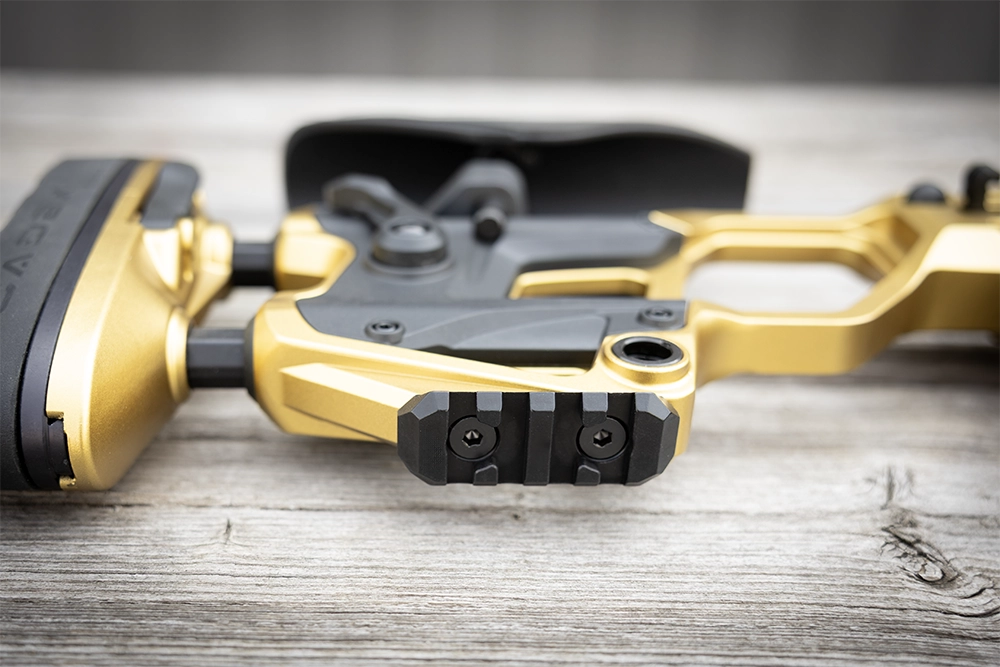

Monopod rails
Part#: 02528-012-K1
This monopod rail from Cadex are engineered for precision shooting where maximum rear support is essential. Whether you’re using this standard monopod or require a flush cup integration, these rails provide a rock-solid foundation to improve your shooting accuracy in both tactical and competition settings.

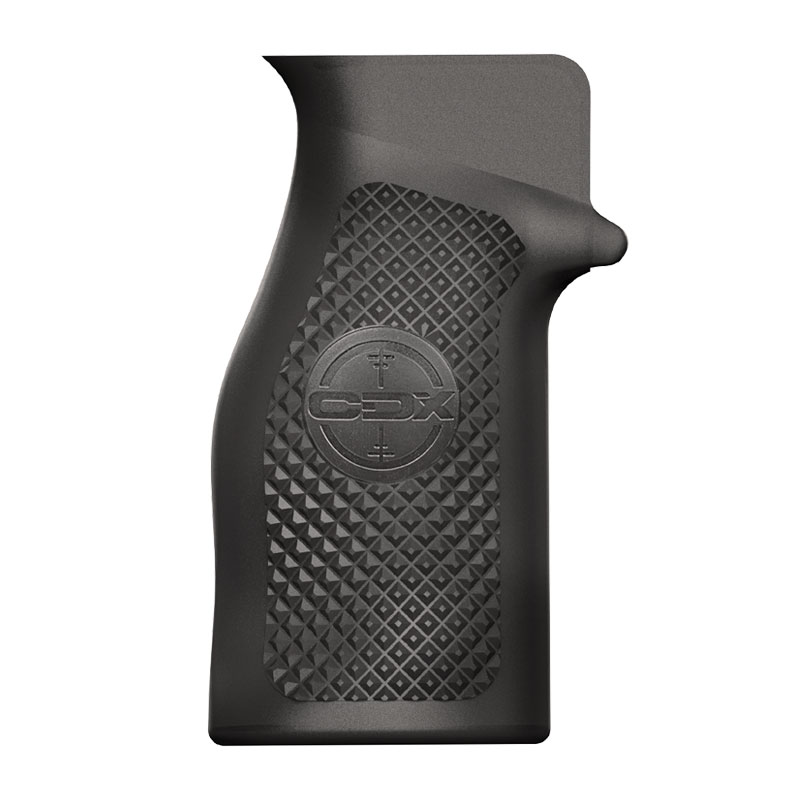

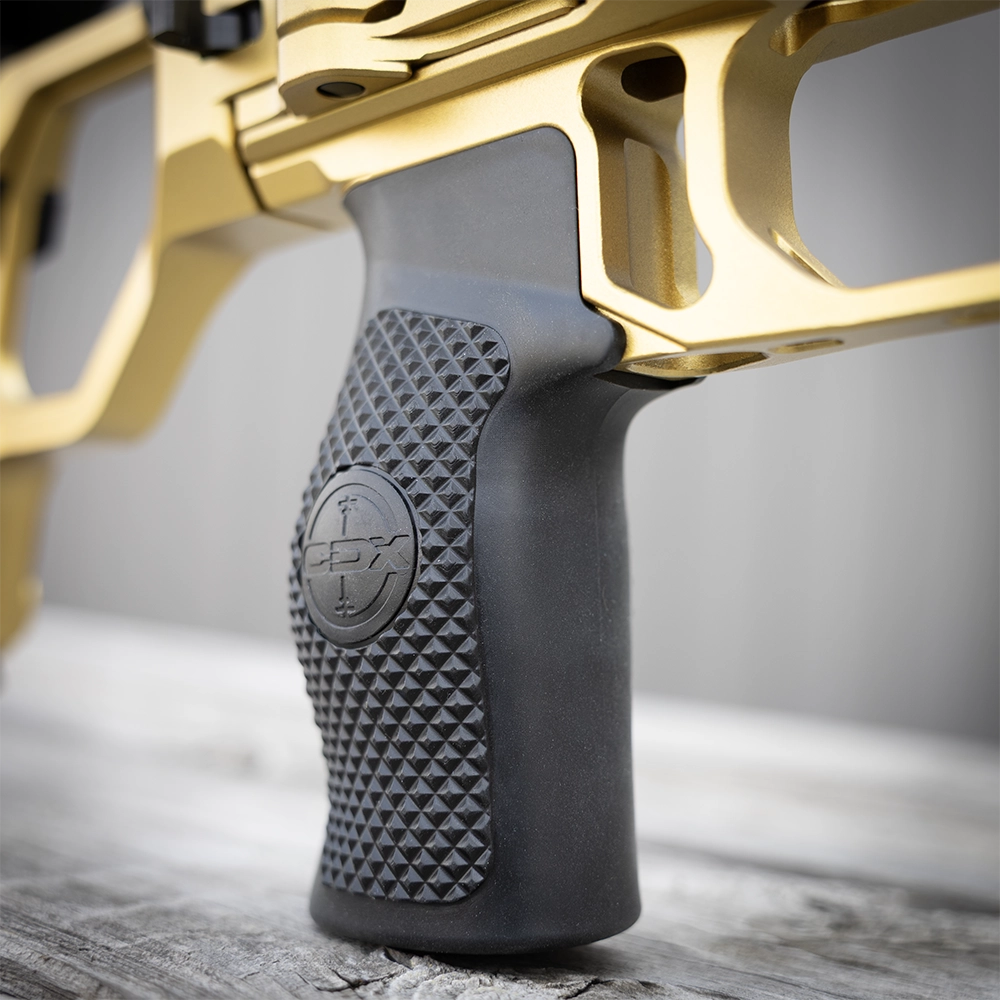

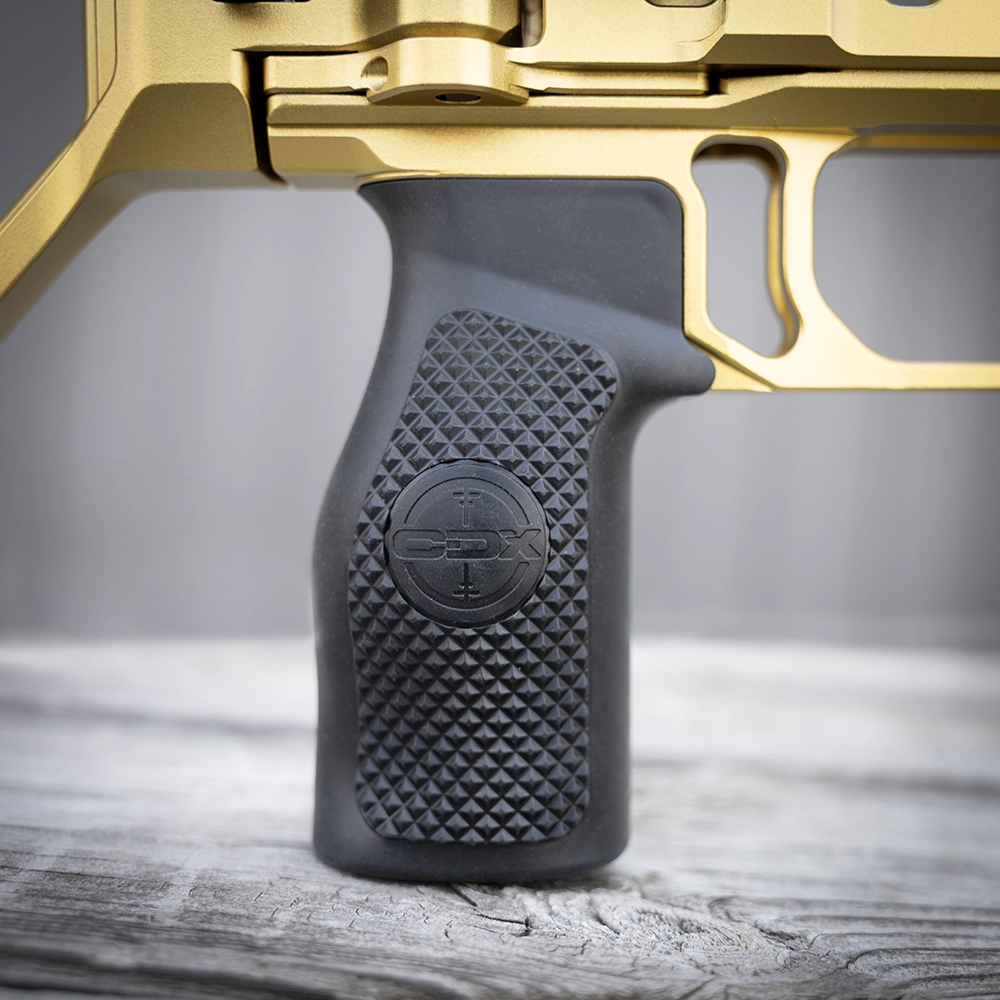

Cadex vertical grip
Part#: 03127-2007-BLK
Cadex Vertical Rubberized Grip delivers a secure, non-slip hold with an ergonomic vertical design that promotes a natural wrist position for improved comfort and control. Its textured rubber surface provides confident handling in all conditions, even with wet or gloved hands.

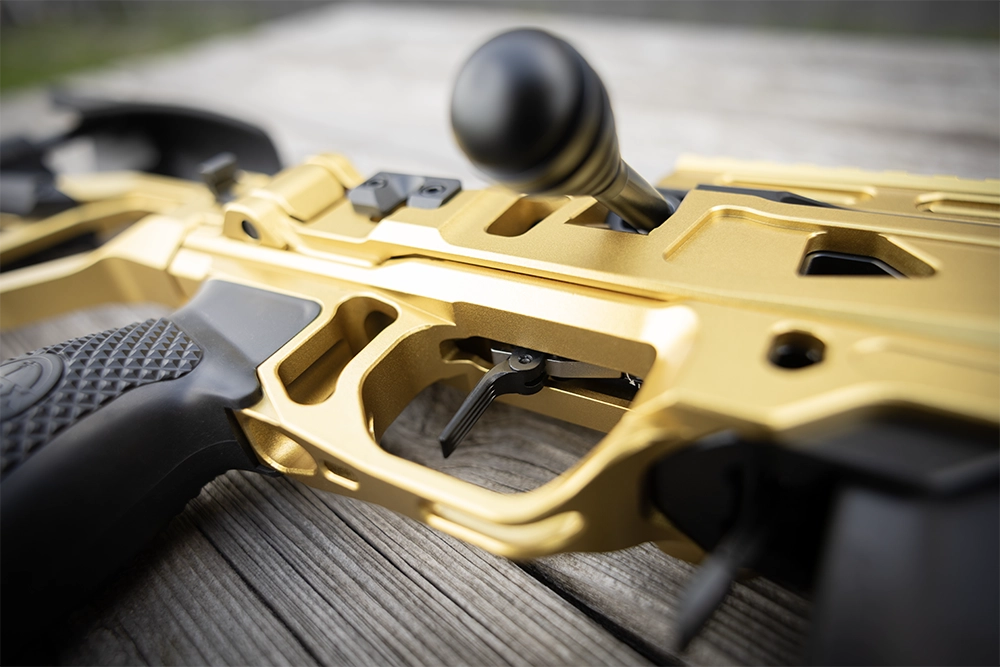

Custom Black DX2 EVO trigger
Single/double-stage convertible trigger
The Custom Black DX2 EVO trigger features a straight trigger shoe and easily converts between single- and two-stage operation. Its trigger pull weight is adjustable from 1.5 to 2.5 lb*, delivering a crisp, consistent break for enhanced control and precision.
*Achievable trigger pull weight can be influenced by multiple factors.
*Achievable trigger pull weight can be influenced by multiple factors.

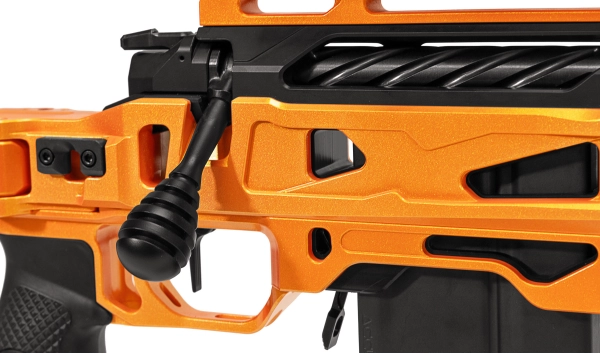

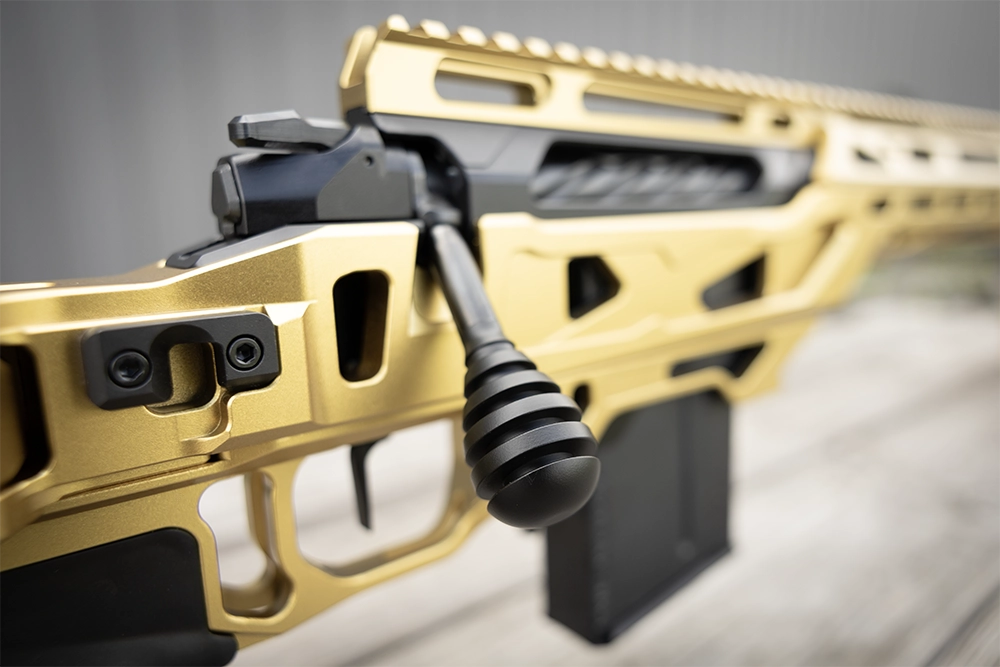

Custom honey stick style bolt knob
The CDX-30 X-LITE features a custom honey stick-style bolt knob designed for a comfortable grip, smooth bolt manipulation, and a distinctive rifle profile. This exclusive bolt knob is only available on X-LITE series rifles and is not sold separately.

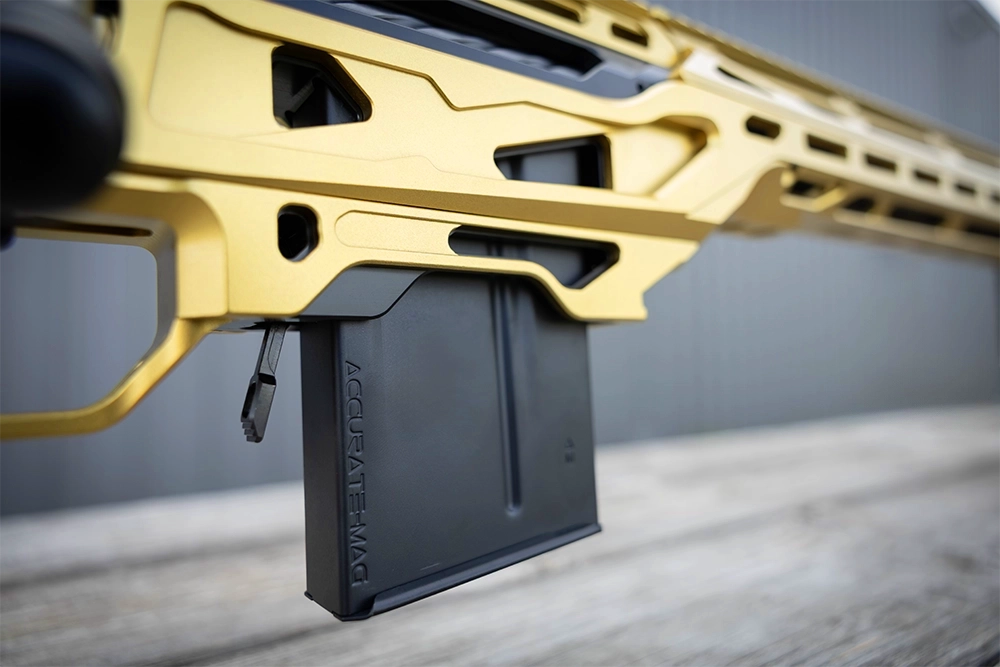

Aics magazines
Part#: AICS-MAG
Accurate-Mag® AICS-pattern magazine offering reliable feeding and multiple caliber, length, and capacity options.

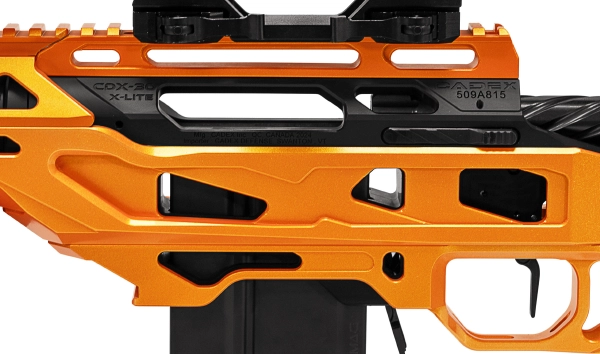

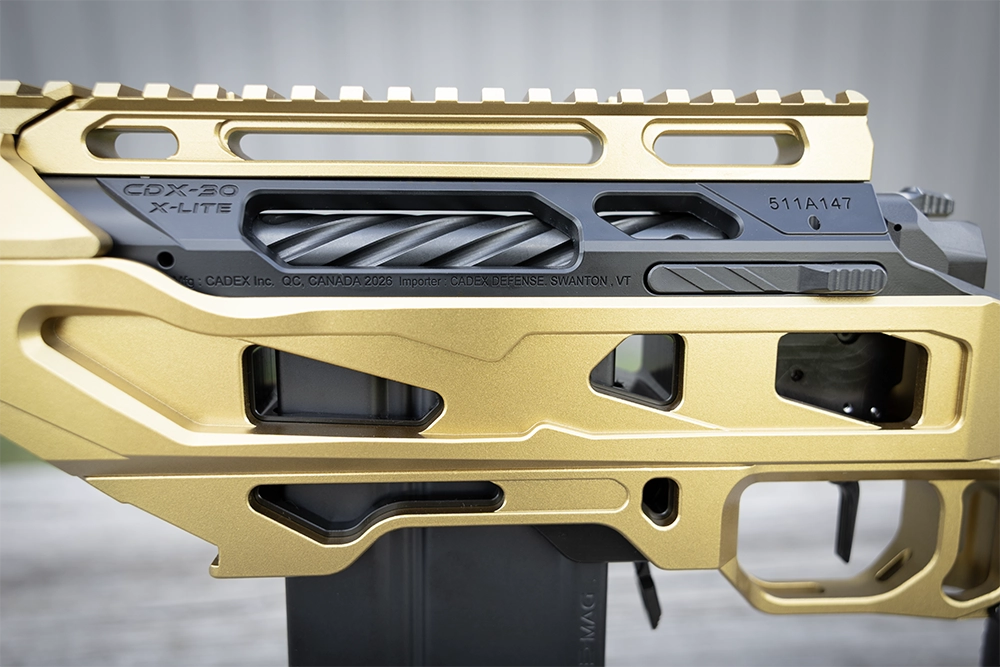

Skeletonized CDX-30 action
416 stainless steel
The CDX-30 X-LITE features a skeletonized CDX-30 action built from 416 stainless steel. This heavy-duty 1.550-inch custom-grade bolt action repeater reduces unnecessary weight while maintaining the strength and rigidity needed for precision rifle performance.

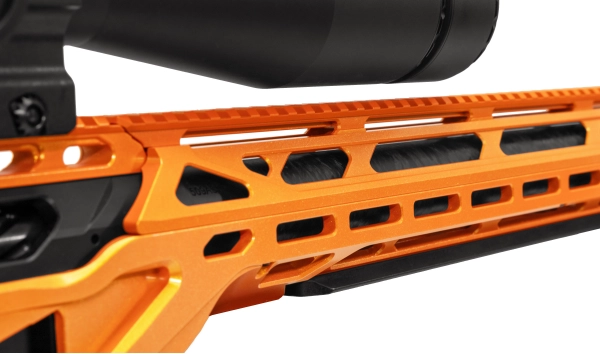

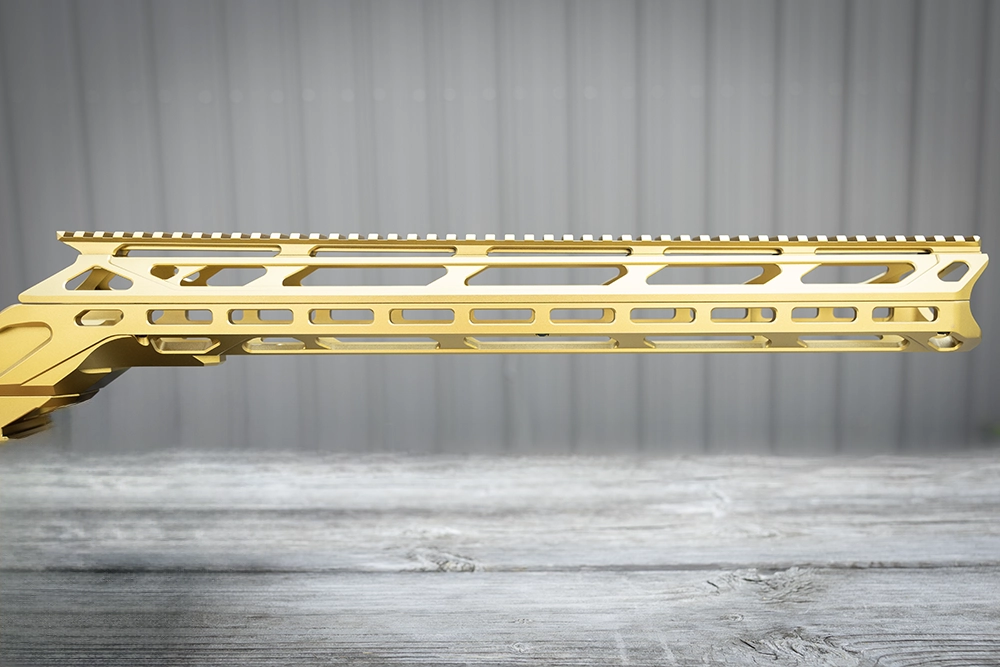

Skeleton M-LOK fore-end tube
The CDX-30 X-LITE features a skeletonized M-LOK fore-end tube designed for lightweight versatility and accessory integration. Its M-LOK interface allows shooters to mount compatible Picatinny rails, bipods, and other accessories while keeping the rifle slim, functional, and easy to configure.

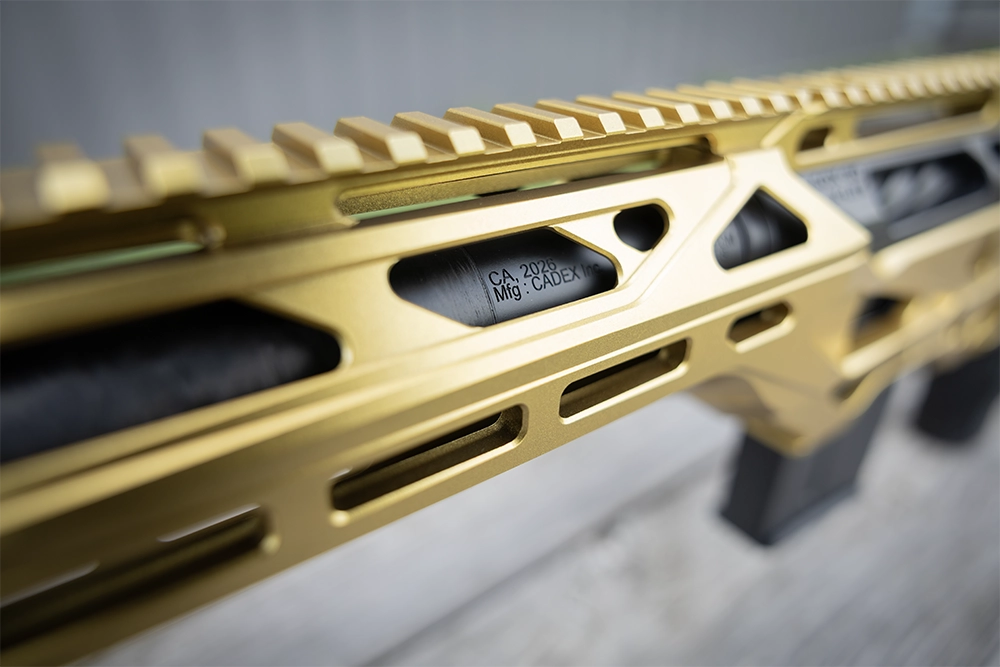

Barrel
The CDX-30 X-LITE is equipped with a 24-inch Bartlein carbon fiber match-grade barrel featuring a 1.300-inch straight profile and 5R single-point cut rifling technology. This premium barrel delivers precision, consistency, and reduced weight, while the new MX5 muzzle brake adds effective recoil control with a distinctive, high-performance design.

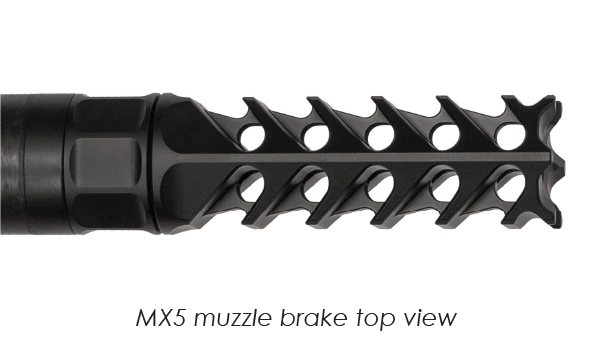

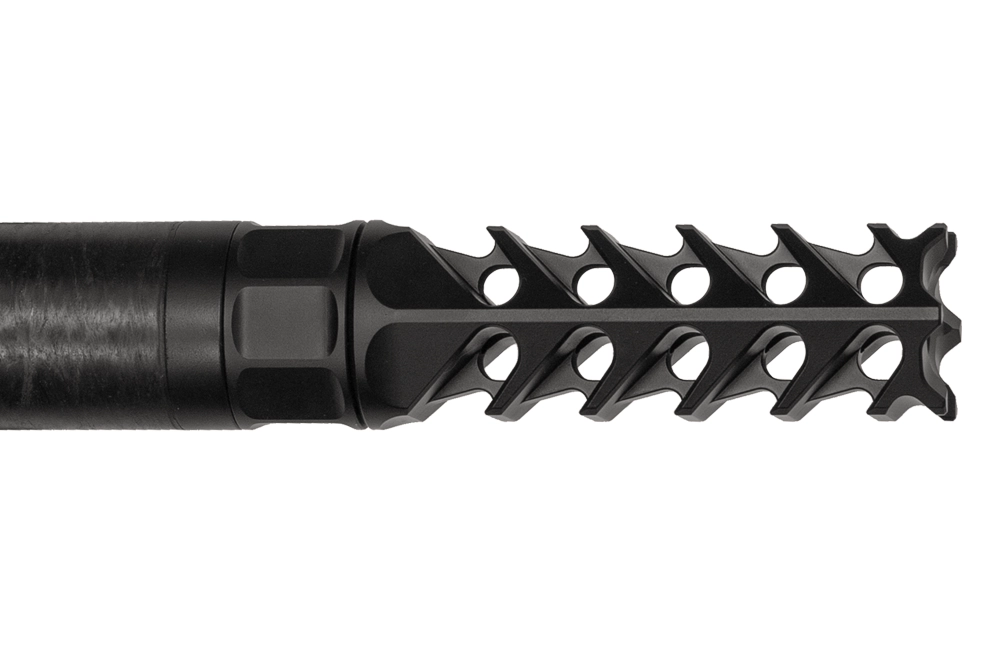

MX5 muzzle brake
The new MX5 muzzle brake on the CDX-30 X-LITE is designed to deliver superior recoil control and enhanced shooting stability. Its aggressive, modern design adds both performance and a distinctive visual signature to the rifle.
Calibers
6.5 creedmoor / 6.5 PRC / 308 win
The new CDX-30 X-LITE was meticulously designed with a singular mission in mind: to be the most visually stunning rifle Cadex has crafted in the last decade. As you know, Cadex has built its reputation on creating firearms with distinctive aesthetics and an unmatched appearance and this model continues that legacy.
SKUs available: CDX30-XL-6.5-24 / CDX30-XL-6PR-24 / CDX30-XL-308-24
Dimensions: 48.28” x 3.66” x 7.94” Folded: 38.48” x 4.31” x 7.94” Weight: ± 13.23 lb | Based on a 24” barrel with an empty magazine. Without riflescope, scope mount and bipod. |
FEATURES AND SPECIFICATIONS
CHASSIS
ACTION
BARREL
ACCESSORIES
CUSTOM SHOP COLORS
CHASSIS
- New skeletonized Strike XS chassis platform built from a rock solid single piece aircraft grade aluminum billet.
- Reverse folding stock mechanism with free-play adjustable hinge system to remove loosening that may develop over time.
- PRO tool-free fully adjustable buttstock and neoprene cheek pad.
- M-LOK fore-end tube capable to adapt various Picatinny rails and accessories.
- Compatible with an infinite selection of M-LOK and aftermarket competition accessories.
ACTION
- New skeletonized CDX-30 heavy duty 1.550” custom grade bolt action repeater, made from 416 stainless steel.
- DLC coated 3 lug fluted bolt with ultra smooth 60° short bolt throw.
- Custom honey stick style bolt knob.
- ¼ turn tool-free bolt disassembly for an easy access to the firing pin.
- Ambidextrous safety lever on shroud.
- Custom Black DX2 Evo single/double stage convertible trigger (not compatible with Remington safety/bolt release).
- Equipped with a straight trigger shoe.
BARREL
- Bartlein 1.300” straight Carbon fiber match grade barrel with single point cut rifling technology.
- 24” long barrel with 5R single point cut rifling technology.
- New MX5 muzzle brake ensuring impressive performance and a striking design.
ACCESSORIES
- Shown with our Falcon Lite bipod, AES rail, tripod adaptor and scope mount (available separately).
- Riflescope not included.
CUSTOM SHOP COLORS
- Currently available in Cerakote FX Orange and FX Gold.
- Contact Cadex customer service team for the latest available colors.
Here’s what makes
the CDX-30 X-LITE stand out:
the CDX-30 X-LITE stand out:
- Our CDX-30 features an “ultra-smooth” DLC coated action, enhanced with thoughtfully placed relief cuts throughout the receiver, effectively reducing weight while maintaining
exceptional rigidity. Additionally, we’ve incorporated a newly lightened round bolt knob, enhancing both functionality and style. - A massive Bartlein 1.300” diameter straight Carbon fiber barrel, coupled with our stunning new MX5 muzzle brake, ensuring superior performance and a striking design.
- A super light variant of our new Strike XS chassis, which boasts a skeletonized mainframe, fore-end tube and a night vision bridge, all designed to minimize weight while offering an aesthetically pleasing look.
- Cerakote FX SERIES coating, featuring color-shifting metallics as well as a captivating pearlescent finish that takes the visual appeal to the next level.
Specifications
Available colors
Optional accessories
Cerakote coating
Specifications
The CDX-30 short action is designed to run standard large rifle primers.
Aftermarket brass using small rifle primers design isn’t recommended
| Model | Caliber | BOLT STYLE | Top Rail MOA | Magazine type | Magazine capacity | Included magazine | Barrel type | Barrel length | Twist rate | THREAD PITCH | O.A.L.* | O.A.L. Folded* | APPROX. WEIGHT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CDX-30 X-LITE | 6.5 Creedmoor | 3 LUG, 60° | 20 | DSSF 3.055" | 10 | MAG100-0040 | Bartlein | 24" | 1:8" | 5/8"-24 | ± 48.3" | ± 38.5" | ± 13.2 lb |
| 6.5 PRC | 3 LUG, 60° | 20 | DSSF 3.055" | 7 | MAG100-0008 | Bartlein | 24" | 1:8" | 5/8"-24 | ± 48.3" | ± 38.5" | ± 13.2 lb | |
| 308 win | 3 LUG, 60° | 20 | DSSF 3.055" | 10 | MAG100-0040 | Bartlein | 24" | 1:10" | 5/8"-24 | ± 48.3" | ± 38.5" | ± 13.2 lb |
*Dimensions do not include the muzzle brake.
DISCLAIMER: Too many components are involved to accurately predict the final weight of a rifle. It is impossible to confirm the weight of our rifles because it varies depending on each caliber.
For more information, please refer to our Catalog (pdf-format or flipbook), or contact us at customerservice@cadexinc.com
Available colors
Cerakote FX Gold
Cerakote FX Orange
Optional accessories
PRO ¼" spacer kit (4)#03127-A2057-K4
Bean Bag Rider#03127-269-K1
ELR Bag Rider#03127-950-K1
Cadex rubberized grip#03127-1075-BLK
CDX rifles curved trigger shoe#6119-213-K1
M-LOK stackable weights (2)#03127-949ML-K2
Spare magazines#AICS-MAG
Scope mount#1556SP
Monopod rail with flush cup#03127-A173-K1
M-LOK flush cup adaptor#03127-A174ML
M-LOK bipod/sling adaptor#03127-957ML
Pro Butt Plate Conversion Kit#03127-A2052-K1
M-LOK 3″ modular rail#03127-A078ML
M-LOK 5″ modular rail#03127-A017ML
M-LOK 3.5" aluminum#03127-A002ML
M-LOK 9" bipod rail#03127-K015ML
Padded rifle sling#3850-K002
Arca tripod adaptor#03127-960-K1
RC2 tripod adaptor#03127-962-K1
AES Picatinny rail kit #AES-PRK435
Hard case#175-0005
Hard case#175-00066
Falcon QD#7431-K015
Falcon Lite SP#7431-K102SP
Cerakote coating
