CDX-R7 CPS Series
The Cadex CDX-R7 CPS Series is designed around the ultra-fast CDX-R7 action. Law Enforcement agencies around the world are in need of a “covert” type short/medium range sniper rifle package, capable to be discreetly carried to their spotting location without alarming the population. The takedown push-button system on the QD Skeleton buttstock makes it very compact and easy to carry. In the case of a threat in crowded areas, the CDX-R7 CPS is a guardian angel.
| Dimensions: | 33.5″ x 4″ x 7.89″ (85.09 x 10.16 x 20.04 cm) |
| Without buttstock: | 26.74″ x 4″ x 7.89″ (67.9 x 10.16 x 20.04 cm) |
| Approx. weight: | 10.49 lbs (4750 grams) |
*Dimensions do not include the muzzle brake.
**The CDX-R7 short and long actions are designed to run standard large rifle primers.
Aftermarket brass using small rifle primers design isn’t recommended**
| Caliber | Barrel length | Twist rate | Thread pitch |
|---|---|---|---|
| 6.5 Creedmoor | 16.5" | 1:8" | 5/8-24 |
| 308 Win | 16.5" | 1:10" | 5/8-24 |
Other configurations, calibers and barrel length available for Military and LE applications
* CIP chambers on demand
For more information, please refer to our Catalog (pdf-format or flipbook), or contact us at customerservice@cadexinc.com
Available Colors

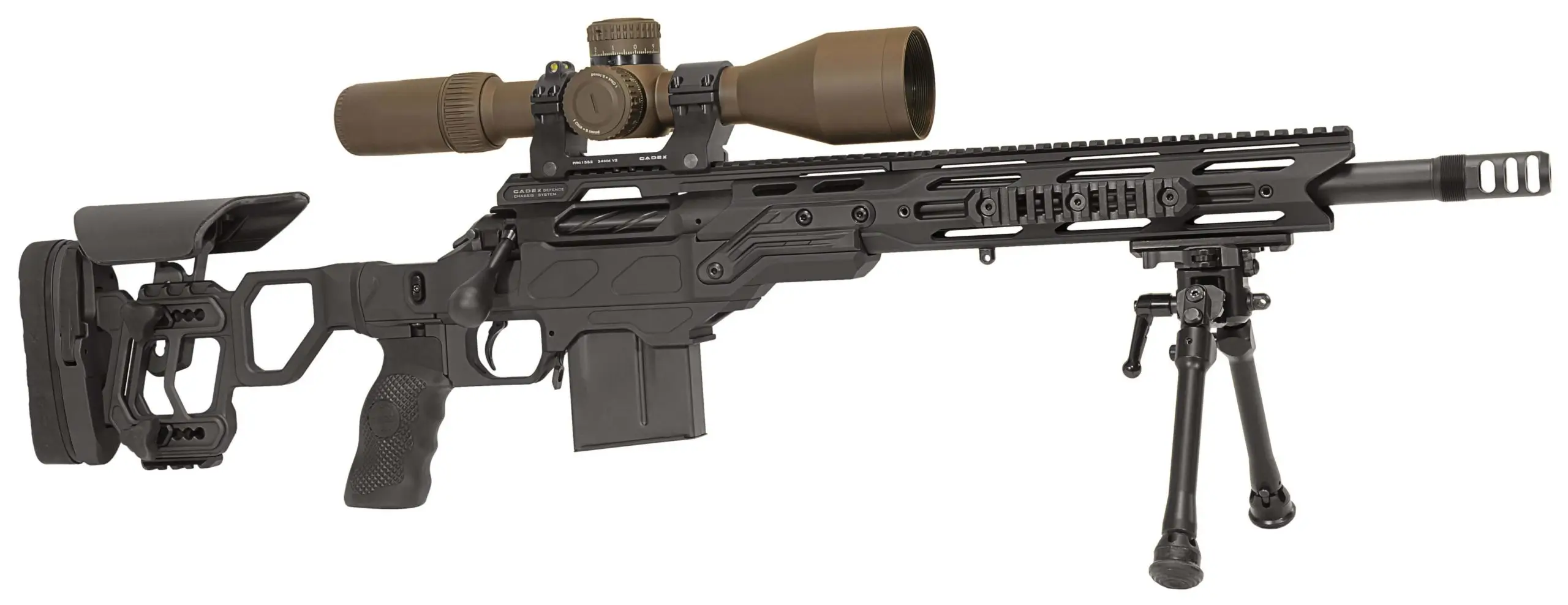

Black (BLK)

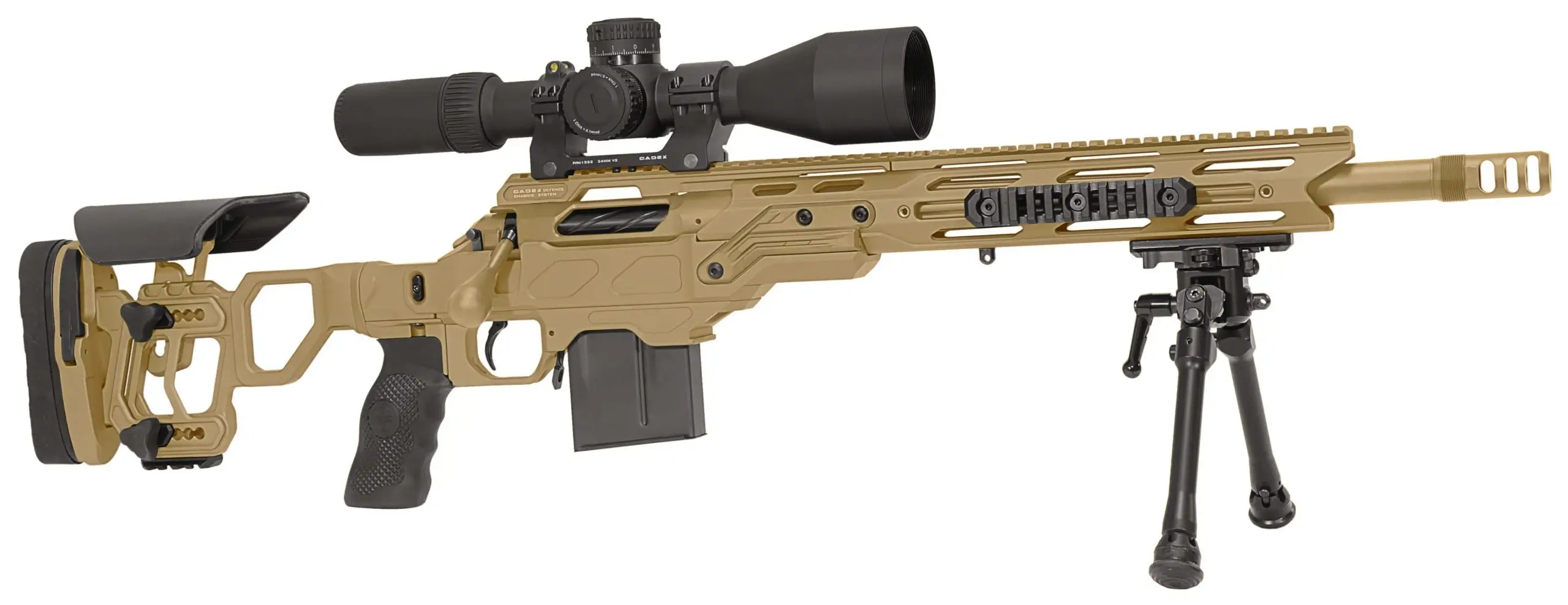

Tan (Tan)
Hybrid Tan/Black (HTB)
O.D. Green (ODG)
Hybrid Green/Black (HOD)

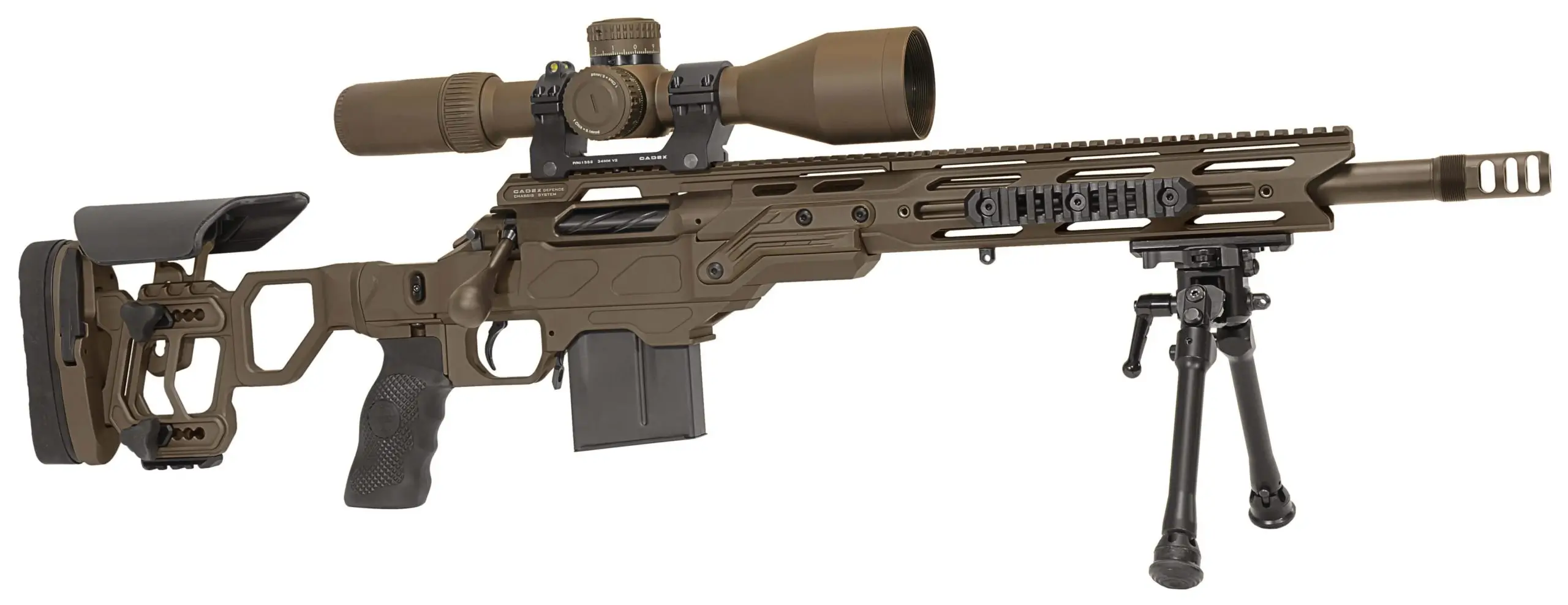

Stealth Shadow Vortex (SSV)
Hybrid Stealth Shadow (HSB)
Sniper Grey (GRY)

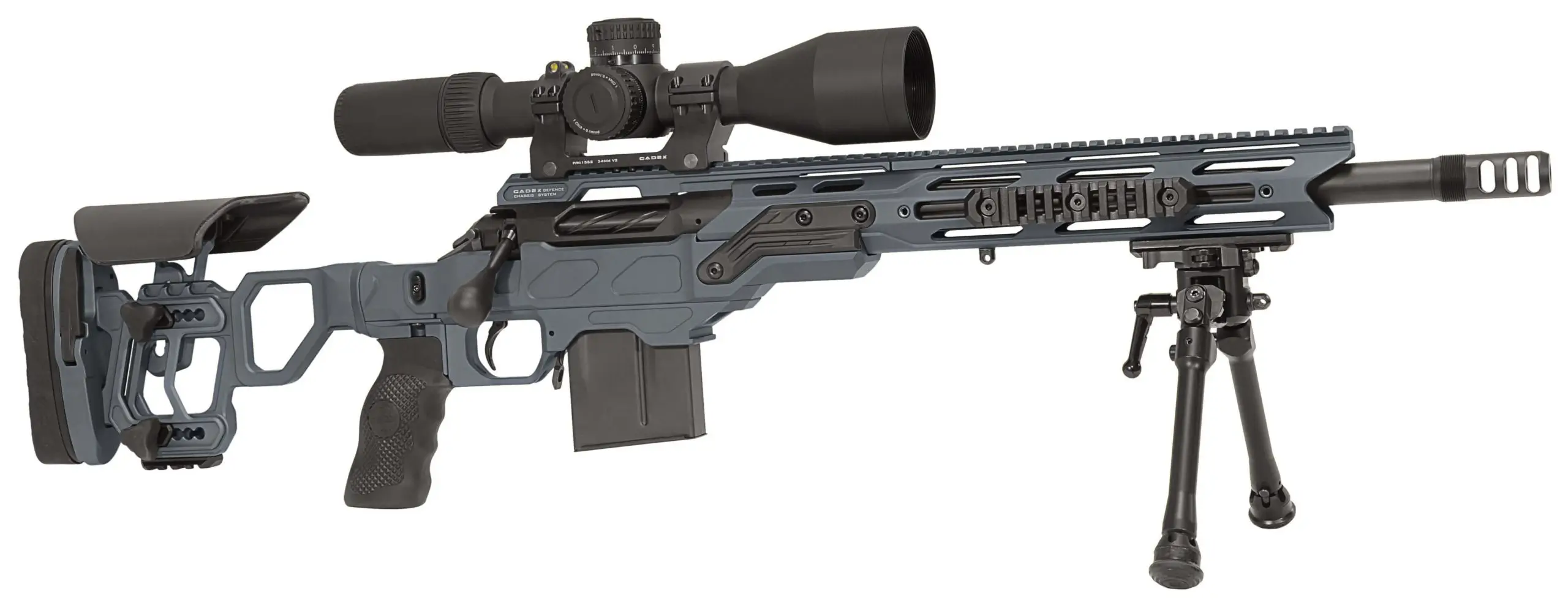

Hybrid Grey/Black (HGB)
Hunter Orange (ORG)
Hybrid Orange/Black (HOB)
Stormtrooper White (WHT)

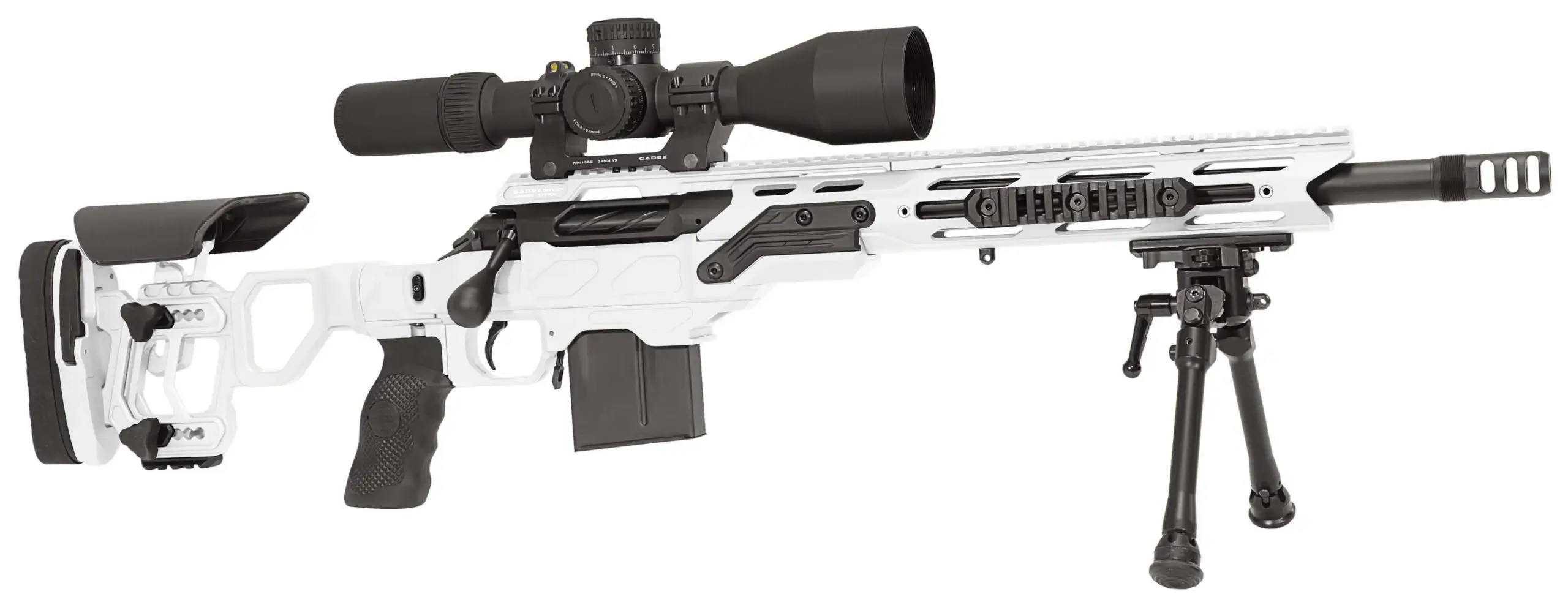

Hybrid White/Black (HWB)
Specifications
Included a MX2 Tactical Muzzle Brake. Ready to accommodate a suppressor.
Small contour fore-end tube providing rail placement at 3, 6 and 9 O’clock.
Spiral fluted bolt 4 lug with 50° bolt throw.
Material : Stainless 416
A: Tactical knob (0.85″ x 2.97″)
D: Rounded knob (0.98″ x 2.98″)
In order for Cadex to offer the best extreme long range sub-MOA precision rifle, we selected Bartlein Barrels. Teamed with our Cadex designed 1.238” heavy barrel straight taper with barrel band and threaded muzzle for slip on suppressor or muzzle brake. All Cadex barrels are 5R Mil-Spec Match Grade Single point-cut rifling with an optimized twist rate.
Heavy duty recoil lug.
DX2 Evo Straight Shoe Trigger: The Cadex DX2 Evo trigger is a Double Stage Trigger capable to be rapidly converted into a Single Stage Trigger by its operator. Its trigger pull weight can be easily adjusted between 1.5 to 2.5 lbs. If you haven’t figured yet if you prefer a Single Stage or Double Stage Trigger, you can’t go wrong with the DX2 Evo.
Ultra-fast takedown push-button mechanism.
Fully tool-free adjustable QD Skeleton Buttstock.
Multiple magazine sleeves are available to fit most magazine types on the market.
Removable for trigger maintenance or tuning without need to remove your action and lose your zero.
Finger grooved rubberized Cadex grip
Oversized trigger guard and magazine release for easy manipulation with gloves.
Compatible optional accessories
Cerakote Coating
