Cadex Carbon Tripod

3 SECTIONS EXTENDED
± 78″ | 198.12 cm

2 SECTIONS EXTENDED
± 60.25″ | 153.04 cm

1 SECTION EXTENDED
± 43.75″ | 111.13 cm

NO SECTION EXTENDED
± 28.75″ | 73.03 cm

If you have never experienced shooting from a tripod, you have yet to experience the best-kept secret in the shooting sports industry. Tripods are not just a PRS shooting trend, they completely revolutionized hunting and long-range shooting by providing hunters and shooters with unprecedented versatility. Being able to engage targets without ever being worried about finding a suitable shooting stance is a game changer. The tremendous clamping power of the 55mm ball head is capable of securing rifles up to 55 pounds. Its 360º adjustable ball head with a quick-release lever allows for rapid installation and removal of the rifle. The 40mm diameter carbon fiber legs can support a weight of up to 110 pounds, making it the strongest and most rigid portable tripod. The CDX tripod offers the ultimate adjustability, versatility and stability a tripod could offer. Whether for hunting, photography or for reconnaissance operations, the CDX carbon fiber tripod with ball head is a must.

click to buy

Tripod Features

  • Aircraft grade aluminum with hard anodized finish.

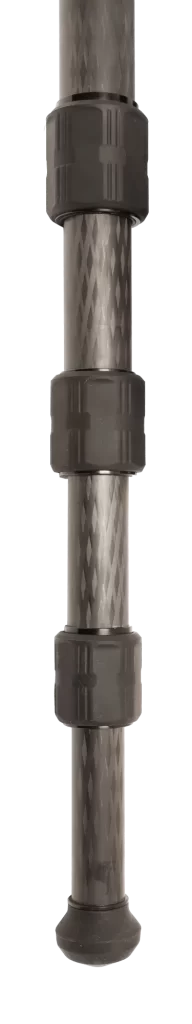

  • 40mm diameter, 10-layer carbon fiber, 4 segment legs with rapid ¼ turn leg
    lock system that rise to a maximum height of 78”.
  • 3 position articulated legs (basic 25º, wide 55º and prone 85º positions).
  • 100mm quick-release plate with universal 3/8-16 mounting screw.
  • 50 kg / 110 lbs max weight.
  • Interchangeable rubber feet and steel spikes are included.
  • Underbelly counterweight hook.

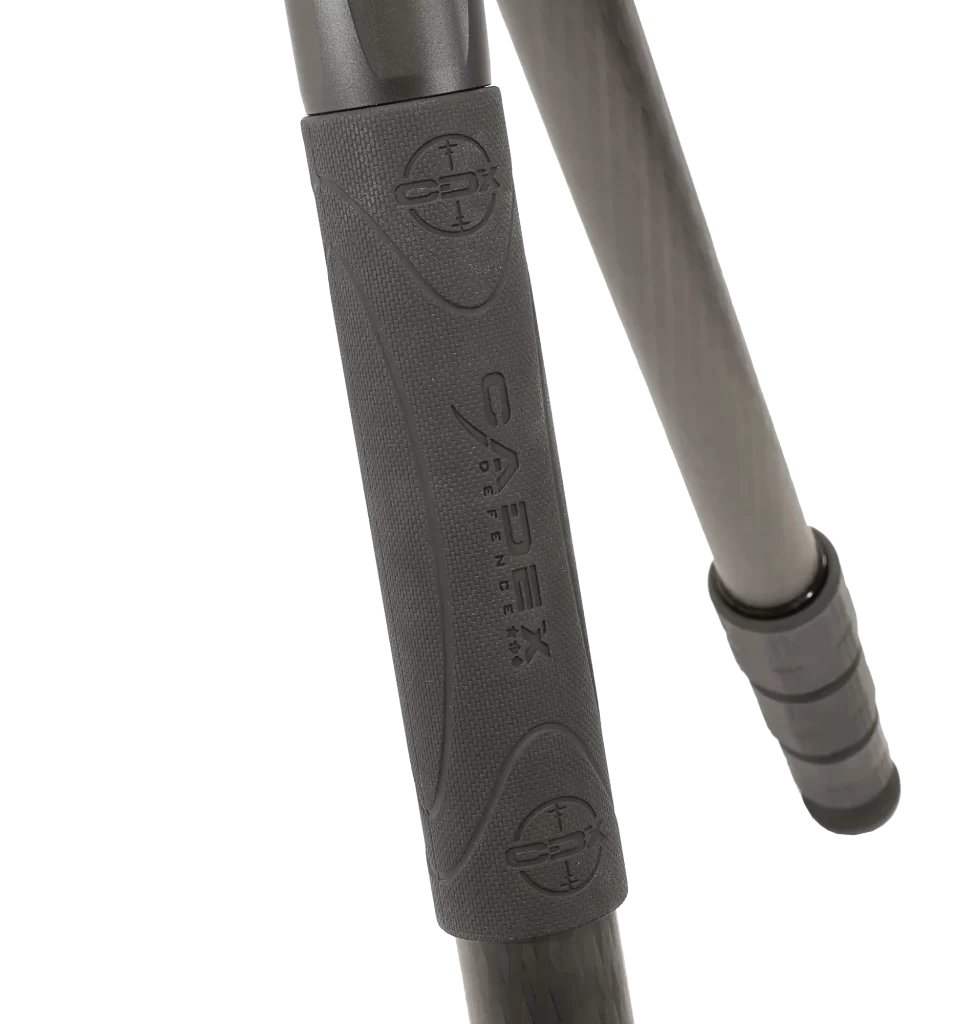

  • Cadex rubberized handle.

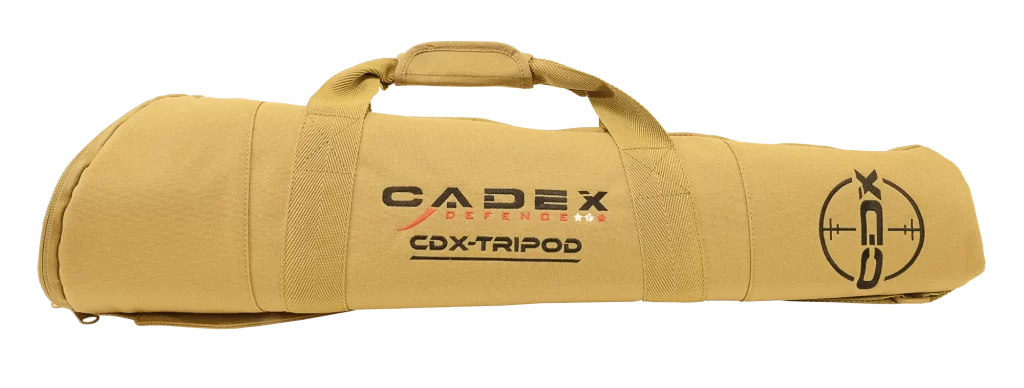

  • Tan color padded transport bag with Cadex embroidered logos.

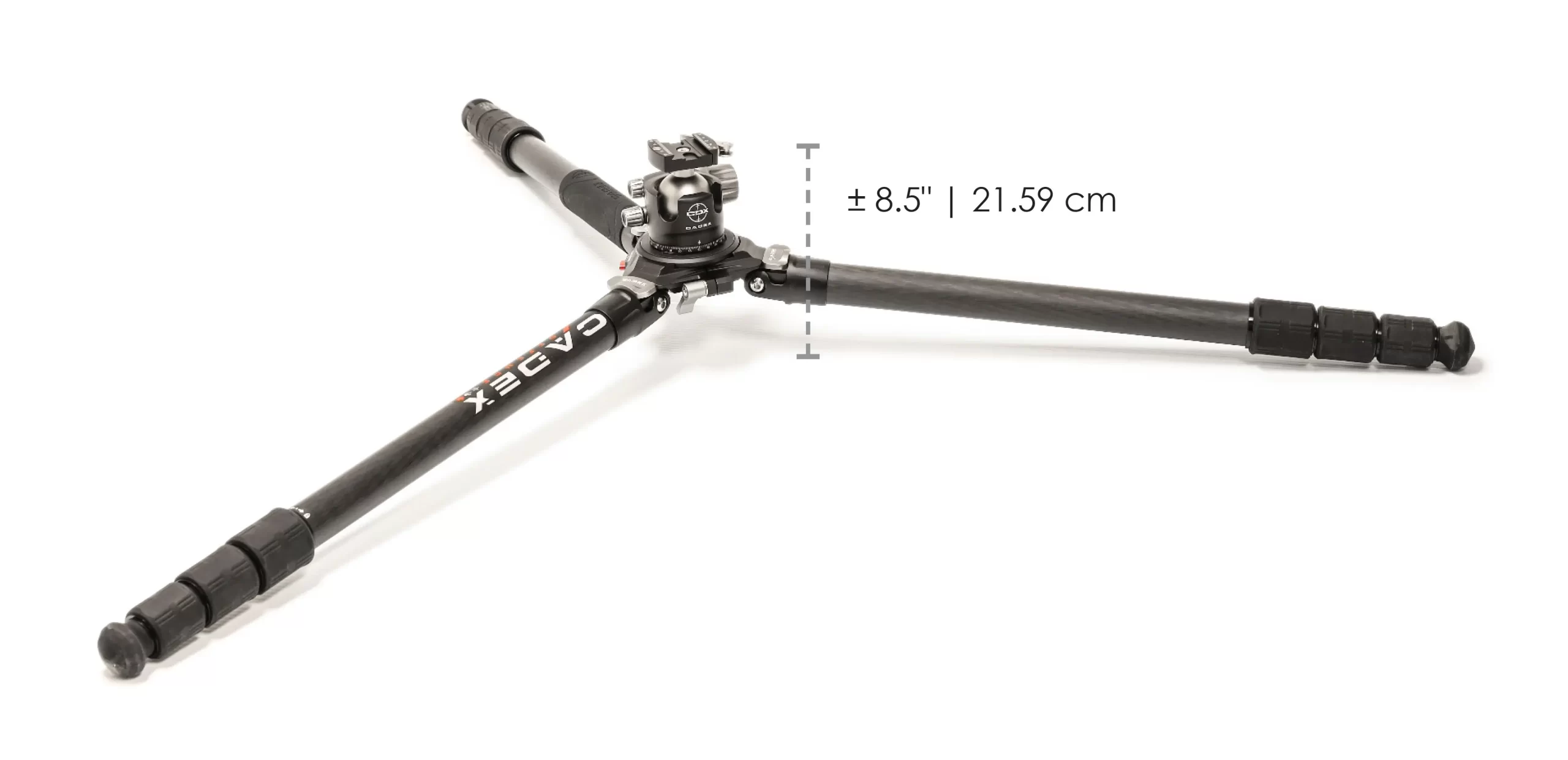

8.5" ground clearance when fully collapsed for prone shooting

For more information, please refer to our Catalog (pdf-format or flipbook), or contact us at customerservice@cadexinc.com

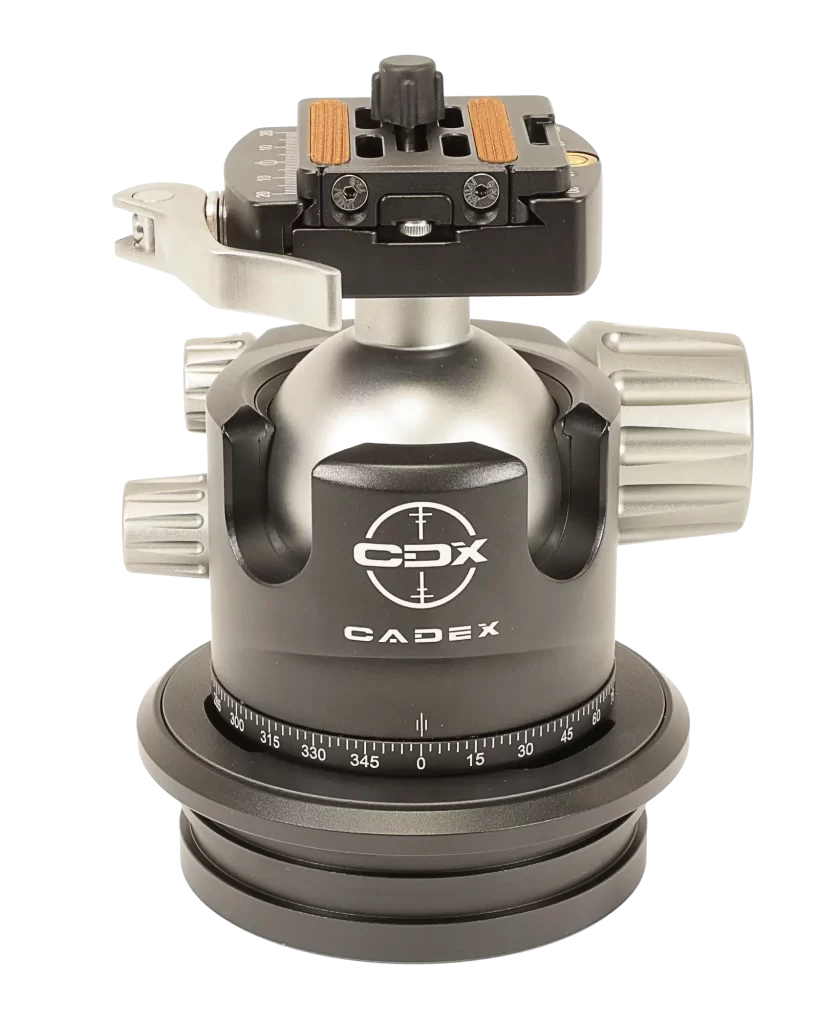

Ball Head Features

  • Aircraft grade aluminum with hard anodized finish.
  • Silky smooth 55mm diameter heavy-duty ball head.
  • 25 kg / 55 lbs max weight.
  • 3 tension lock knobs (rotation, panning/canting).
  • Arca-Swiss clamp with quick-release lever and 1/4-20 screw Q-R plate.
  • Also compatible with CDX Arca Elite System (AES).
  • Tooling included.
Fast takedown head

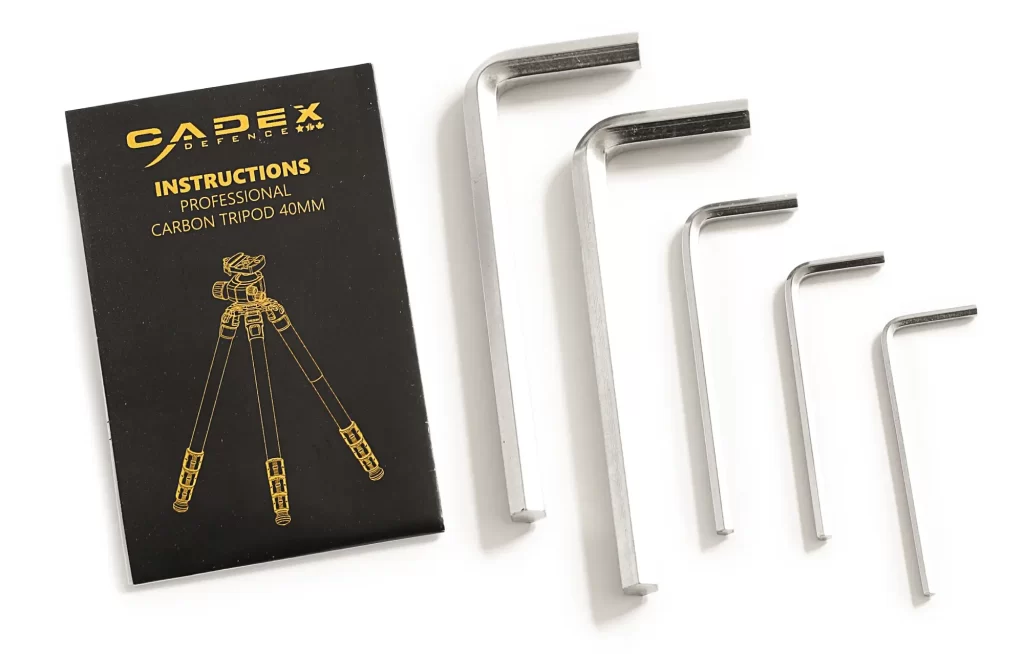

Instructions and tooling included

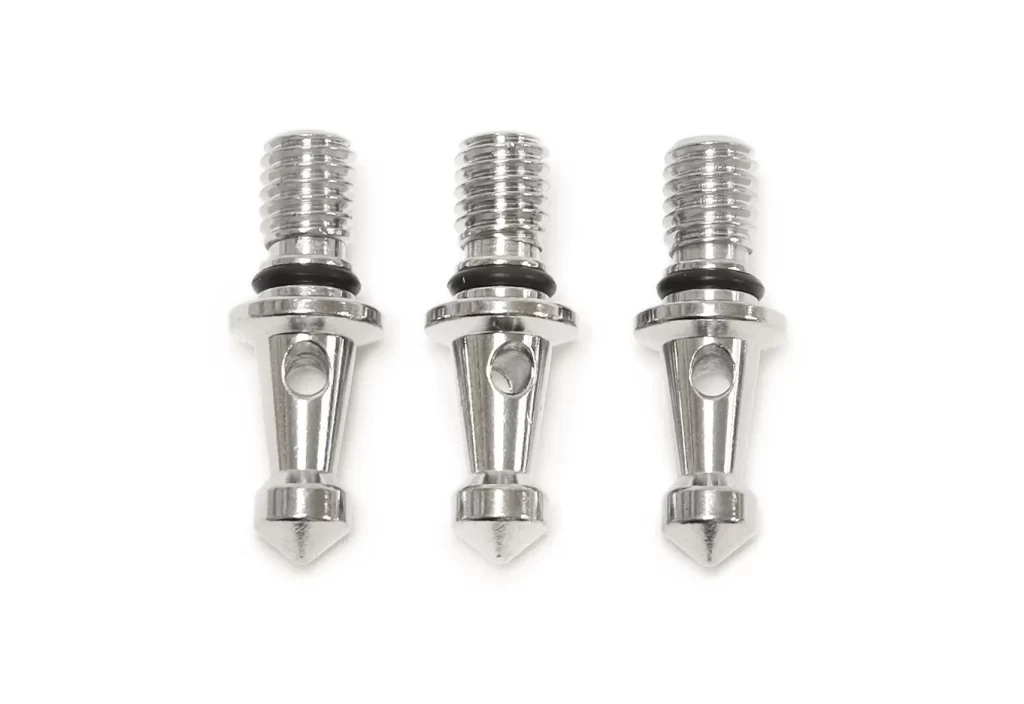

Interchangeable steel spikes included

Configuration

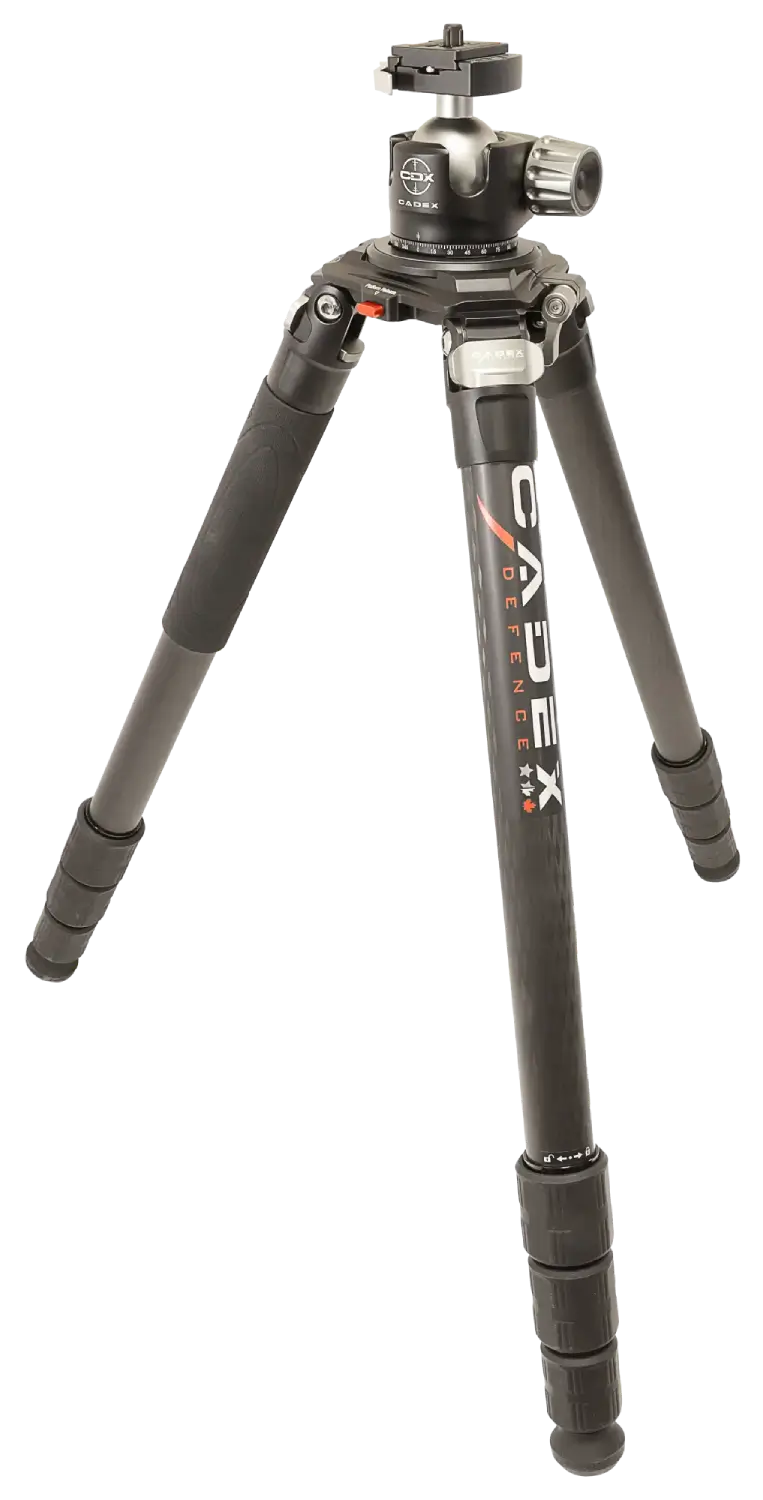

CDX Carbon Tripod

Part#: CDX-TRIPOD

Minimum height: 8.5″ | 21.59 cm
Maximum height: 78″ | 198.12 cm
Tripod weight (±) : 6.83 lbs | 3098 grams
Ball head weight (±) : 2.16 lbs | 980 grams
Total weight (±) : 8.99 lbs | 4078 grams

40mm diameter, 10-layer carbon fiber, 4 segment legs with rapid ¼ turn leg lock system

Please see your local dealer/distributor for pricing and details.
