CDX-LITE SERIES
The CDX-30 LITE, CDX-300 LITE, and CDX-33 LITE precision rifles combine all mandatory features that an operator needs in the field. Nothing is left to chance and every detail has been designed to offer the best long-range sub-minute sniper system on the market. The CDX-LITE precision rifles will be your most reliable partner. Often imitated but never equaled. One-shot, one kill… Then extract safely.
| Model | Caliber | Barrel length | Twist rate | Rifling | Magazine capacity | O.A.L.* | O.A.L. FOLDED* | APPROX. WEIGHT |
|---|---|---|---|---|---|---|---|---|
| CDX-30 LITE | 6 Creedmoor | 26" | 1:7½" | 5R | 10 | 45.9" | 37.4" | 14.3 lb |
| 6.5 Creedmoor | 24" / 26" | 1:8" | 5R | 10 | 43.9" / 45.9" | 35.4" / 37.4" | 14.1 lb / 14.3 lb | |
| 6.5 PRC | 24" / 26" | 1:8" | 5R | 7 | 43.9" / 45.9" | 35.4" / 37.4" | 14.1 lb / 14.3 lb | |
| 308 Win | 20" / 24" / 26" | 1:11¼" or (1:10") | 5R | 10 | 39.9" / 43.9" / 45.9" | 31.4" / 35.4" / 37.4" | 13.7 lb / 14.1 lb / 14.3 lb | |
| CDX-300 LITE | 300 Win Mag NEW | 26" | 1:10" | 5R | 5 | 45.9" | 37.4" | 14.3 lb |
| 300 PRC | 26" | 1:8" | 5R | 5 | 45.9" | 37.4" | 14.3 lb | |
| 300 RUM | 26" | 1:8" | 5R | 5 | 45.9" | 37.4" | 14.3 lb | |
| CDX-33 LITE | 300 Norma Mag | 26" / 32" NEW | 1:8" | 5R | 5 | 45.9" / 51.9" | 37.4" / 43.4" | 14.3 lb / 14.9 lb |
| 338 Lapua Mag | 27"/ 32" NEW | 1:9½" | 5R | 5 | 46.9" / 51.9" | 38.4" / 43.4" | 14.4 lb / 14.9 lb |
*Dimensions do not include the muzzle brake.
DISCLAIMER: Too many components are involved to accurately predict the final weight of a rifle. It is impossible to confirm the weight of all our rifle models because it varies depending on each caliber.
For more information, please refer to our Catalog (pdf-format or flipbook), or contact us at customerservice@cadexinc.com
Available Colors
Black (BLK)
Tan (Tan)
Hybrid Tan/Black (HTB)
O.D. Green (ODG)
Hybrid Green/Black (HOD)
Stealth Shadow Vortex (SSV)
Hybrid Stealth Shadow (HSB)
Sniper Grey (GRY)
Hybrid Grey/Black (HGB)
Stormtrooper White (WHT)
Hybrid White/Black (HWB)
Burnt Bronze (BRZ)
Hybrid BRONZE/Black (HBB)
Hunter Orange (ORG)
Hybrid Orange/Black (HOr)
ROBIN'S EGG BLUE (EGG)
Hybrid ROBIN'S EGG BLUE (HEB)
NRA Blue (NRA)
Hybrid NRA BLUE (HNR)
USMC red (RED)
Hybrid USMC RED (HUS)
Chassis Features and Specifications
Hover over the numbers in the picture and have a tooltip with a description.
- Tool-free fully adjustable stock for length of pull, cheek piece and recoil pad height. Includes a
neoprene cheek pad. - Monopod rail or optional bean bag riders.
- Reverse folding buttstock offers bolt handle protection and ultra-compact transport.
- Finger-grooved Cadex rubberized grip.
- Oversized trigger guard and magazine release for easy manipulation with gloves.
- 20 MOA full length top rail.
- Made from aircraft grade 6061-T6 aluminum billets, anodized and painted with a military grade
non-reflective paint.
- Detachable base provides easy trigger access for maintenance and trigger adjustment. This allows the platform to maintain zero. Made of aluminum.
- Optional centre accessory rail kit (2) – Not shown.
- Spare screws.
- Optional centre bipod rail or tripod adaptor.
- Heavy Duty fore-end tube providing rail placement at 3, 6 and 9 o’clock (included with a flush cup).
- Maximum barrel diameter 1.350″.
Specifications
Ready to accommodate a muzzle brake or suppressor. (Muzzle brake included)
Provides a stable platform that eliminates any movement of the action in the chassis.
Reduces image distortion from barrel heat.
3 lug bolt with 60o bolt throw.

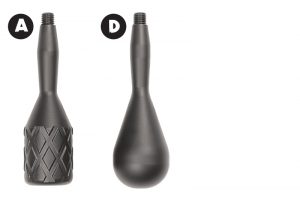

A: Tactical knob (0.85″ x 2.97″)
D: Rounded knob (0.98″ x 2.98″)
In order for Cadex to offer the best extreme long range sub-MOA precision rifle, we selected Bartlein Barrels. Teamed with our Cadex designed 1.300” straight taper, fluted barrel and a threaded muzzle. All Cadex barrels are 5R Mil-Spec Match Grade Single point-cut rifling with an optimized twist rate.
Heavy duty recoil lug.
DX2 Evo Selectable Single/Double Stage: The Cadex DX2 Evo trigger is a Double Stage Trigger capable to be rapidly converted into a Single Stage Trigger by its operator. Its trigger pull weight can be easily adjusted between 1.5 to 2.5 lbs. If you haven’t figured yet if you prefer a Single Stage or Double Stage Trigger, you can’t go wrong with the DX2 Evo.
Reverse folding butt stock offers bolt handle protection and ultra compact transport.
Rattle free locking mechanism. Easy manipulation with gloves.
Offset cam to remove any free play.
Multiple magazine sleeves are available to fit most magazine types on the market.
Removable for trigger maintenance or tuning without need to remove your action and lose your zero.
Full length lite top rail. Available in 20 MOA, 30 MOA, or 45 MOA depending on the model.
Finger grooved rubberized Cadex grip.
Oversized trigger guard and magazine release for easy manipulation with gloves.
