The CDX-R7 XS is the latest evolution of our long-range shooting platforms. It incorporates most features requested by positional shooting competitors without sacrificing any features an operator needs during field operations. This rifle is equipped with our most recent chassis design; a one-piece lower receiver and fore-end tube carved out of a solid aluminum billet. The fore-end tube features 11 side and 9 bottom M-LOK slots, was lengthened to 15.5″ and was reinforced at critical areas making it our most rigid chassis yet. An optional extra-long NVD bridge is available for a perfect alignment of thermal imaging, night vision devices, Nightforce® prism or “ballistic periscopes” such as the Charlie Tarac®. This rifle is also equipped with our PRO tool-free fully adjustable and foldable buttstock. If you are looking for a rifle capable of doing all types of shooting, such as prone, tripod or even building roof top, the CDX-R7 XS will fulfill your needs.
| Model | Caliber | Bolt body type | Bolt style | Magazine type | Include magazine | Barrel length | Twist rate | Rifling | Magazine capacity | O.A.L.* | O.A.L. FOLDED* | APPROX. WEIGHT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CDX-R7 XS (SA) | 6.5 Creedmoor | GROUP B (.480") | 4 LUG, 50° | DSSF 3.055" | MAG100-0040 | 26" | 1:8" | 5R | 10 | 45.5" | 36.5" | 13.7 lb |
| 6.5 PRC | GROUP C (.550") | 4 LUG, 50° | DSSF 3.055" | MAG100-0008 | 26" | 1:8 | 5R | 7 | 45.5" | 36.5" | 13.7 lb | |
| 308 Win | GROUP B (.480") | 4 LUG, 50° | DSSF 3.055" | MAG100-0040 | 26" | 1:10 | 5R | 10 | 45.5" | 36.5" | 13.7 lb | |
| CDX-R7 XS (LA) | 7 PRC | GROUP C (.550") | 4 LUG, 50° | SSSF 3.850" CIP | MDT-3PR | 26" | 1:8 | 5R | 5 | 46.3" | 37.3" | 14 lb |
| 300 Win Mag | GROUP C (.550") | 4 LUG, 50° | SSSF 3.715" | MAG100-0001 | 26" | 1:10 | 5R | 5 | 46.3" | 37.3" | 14 lb | |
| 300 PRC | GROUP C (.550") | 4 LUG, 50° | SSSF 3.850" CIP | MDT-3PR | 26" | 1:8 | 5R | 5 | 46.3" | 37.3" | 14 lb | |
| 300 Norma Mag | GROUP D (.600") | 4 LUG, 50° | SSSF 3.850" CIP | MAG100-0022 | 26" | 1:8 | 5R | 5 | 46.3" | 37.3" | 14 lb | |
| 338 Lapua Mag | GROUP D (.600") | 4 LUG, 50° | SSSF 3.850" CIP | MAG100-0022 | 27" | 1:9½ | 5R | 5 | 47.3" | 38.3" | 14 lb |
*Dimensions do not include the muzzle brake.
DISCLAIMER: Too many components are involved to accurately predict the final weight of a rifle. It is impossible to confirm the weight of all our rifle models because it varies depending on each caliber.
For more information, please refer to our Catalog (pdf-format or flipbook), or contact us at customerservice@cadexinc.com
Black (BLK)
Tan (Tan)

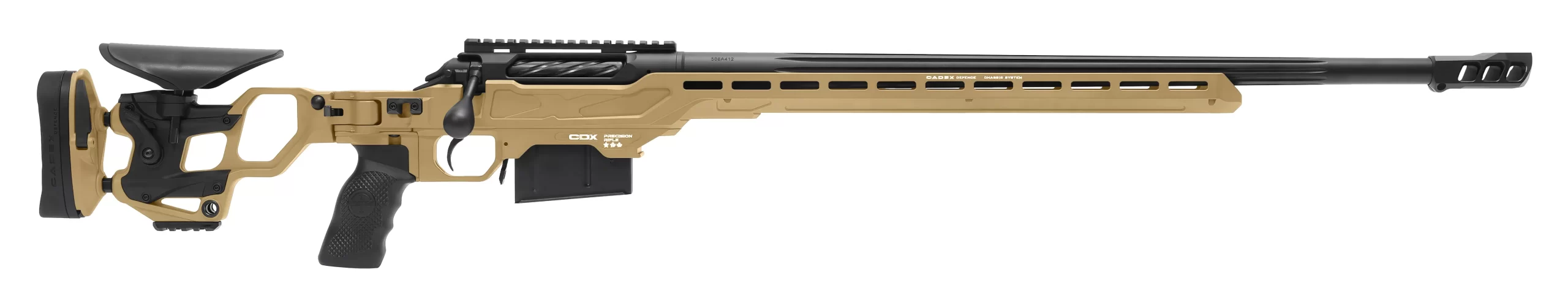

Hybrid Tan/Black (HTB)
O.D. Green (ODG)
Hybrid Green/Black (HOD)
Stealth Shadow Vortex (SSV)
Hybrid Stealth Shadow (HSB)
Sniper Grey (GRY)
Hybrid Grey/Black (HGB)

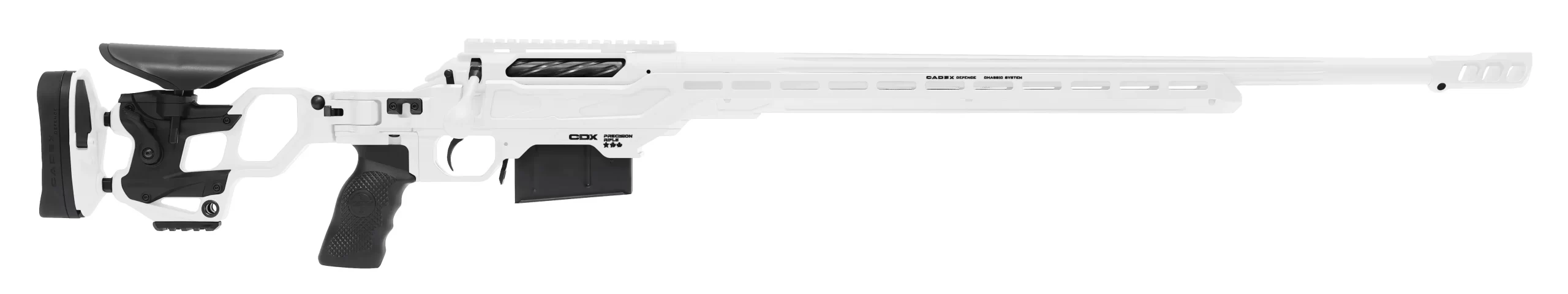

Stormtrooper White (WHT)

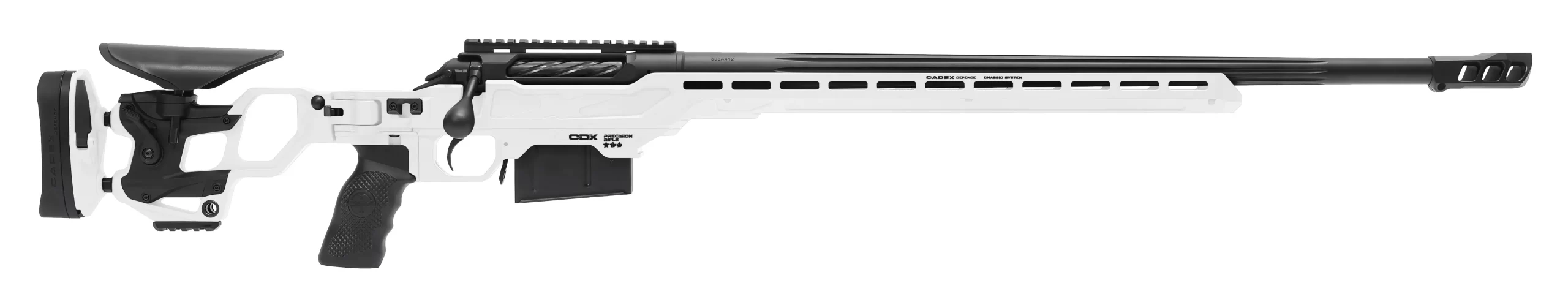

Hybrid White/Black (HWB)

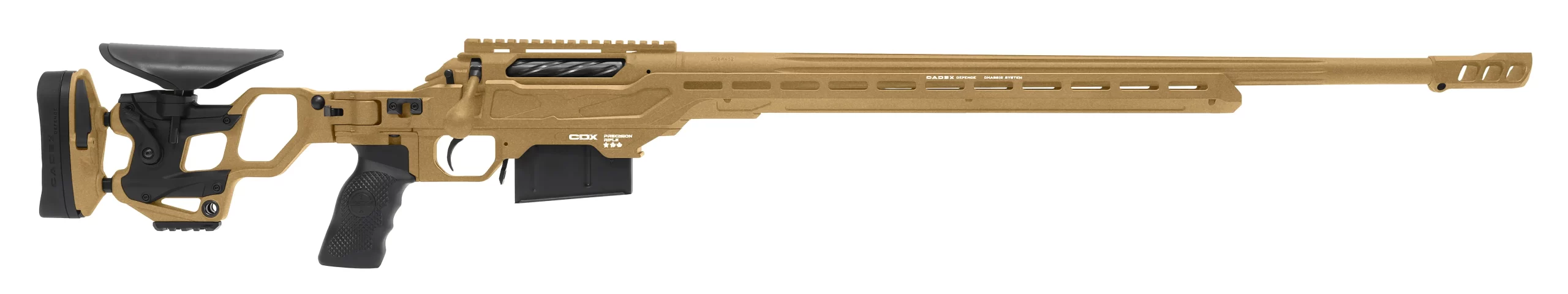

Burnt Bronze (BRZ)
Hybrid BRONZE/Black (HBB)

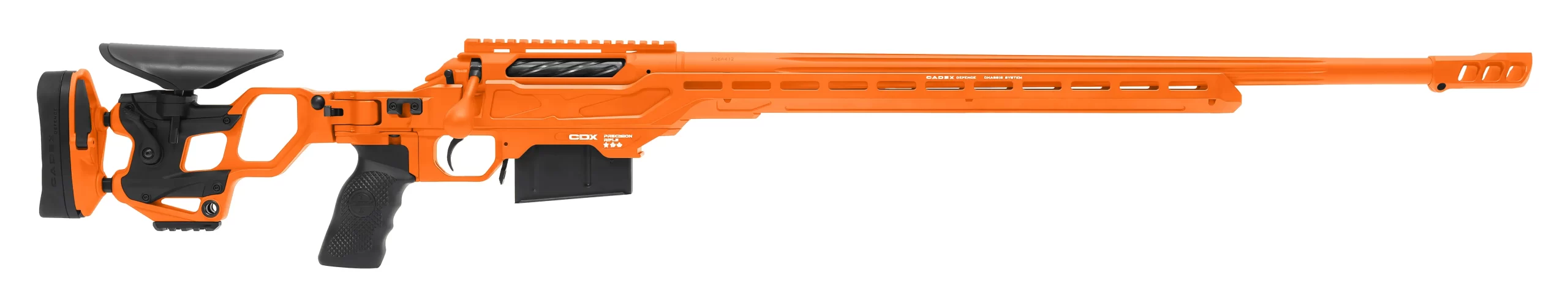

Hunter Orange (ORG)

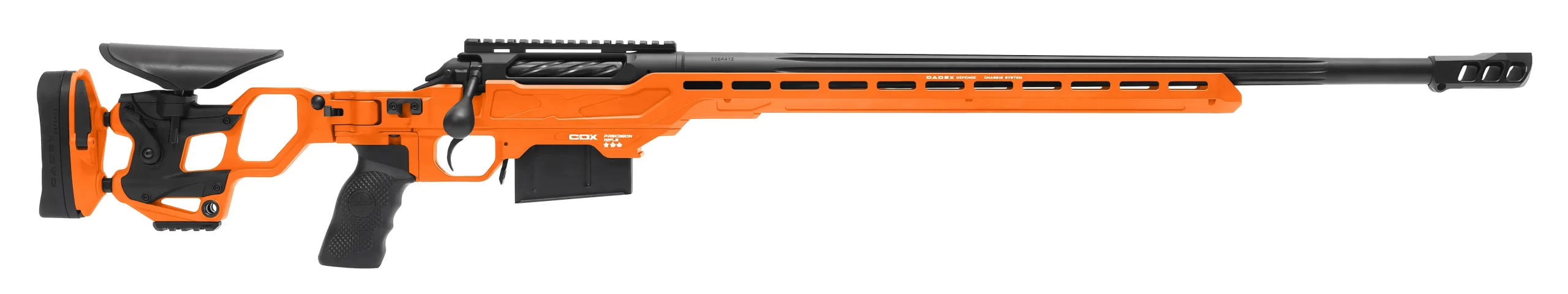

Hybrid Orange/Black (HOr)

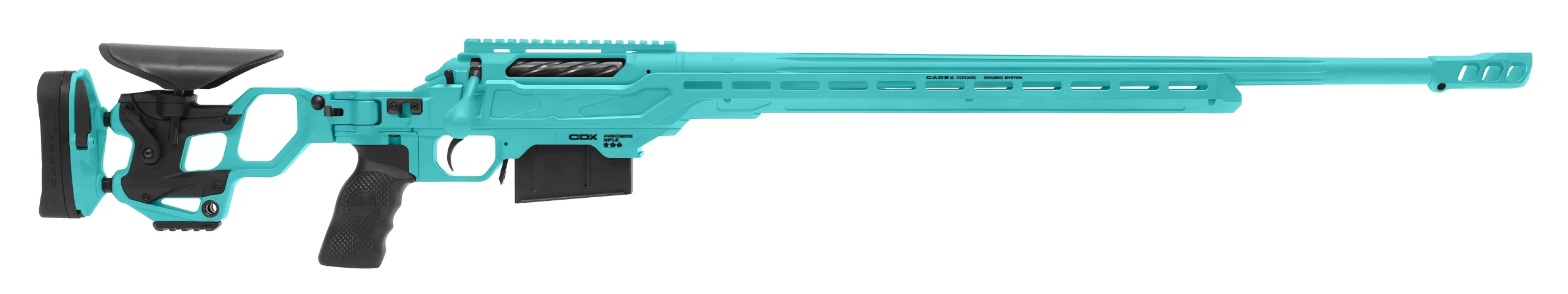

ROBIN'S EGG BLUE (EGG)

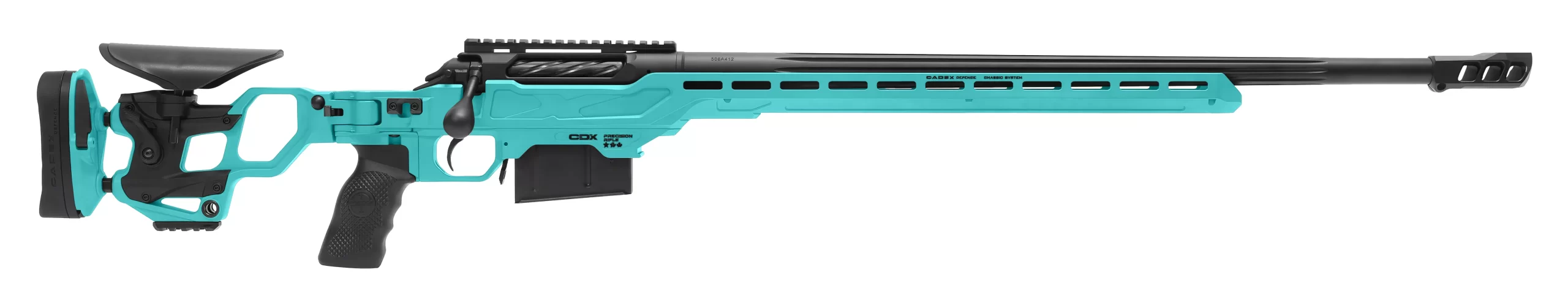

Hybrid ROBIN'S EGG BLUE (HEB)

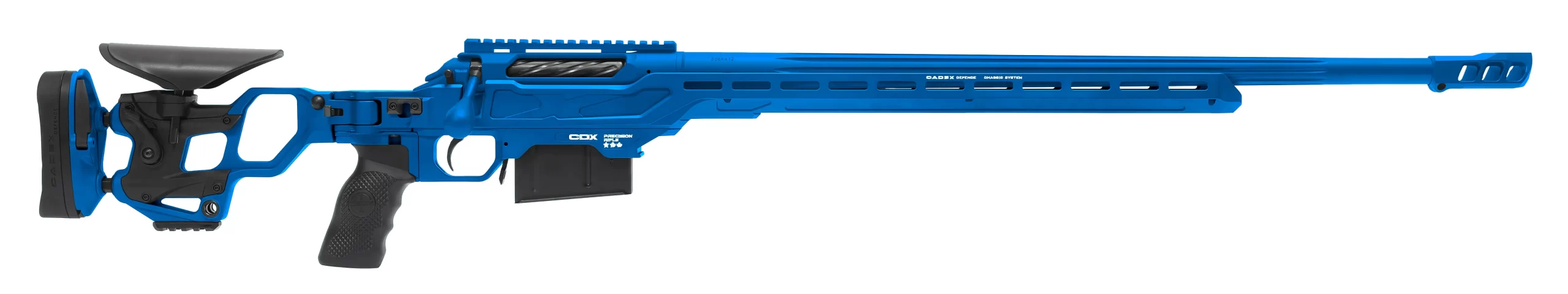

NRA Blue (NRA)
Hybrid NRA BLUE (HNR)

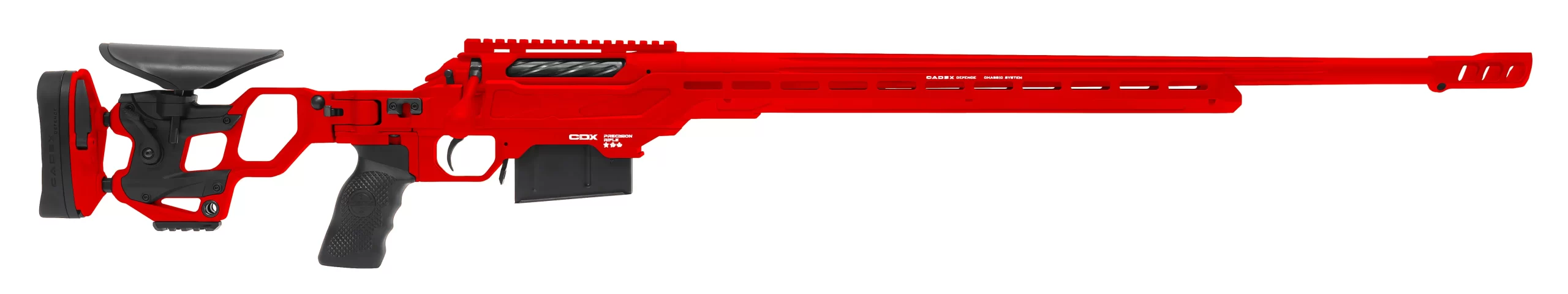

USMC red (RED)
Hybrid USMC RED (HUS)

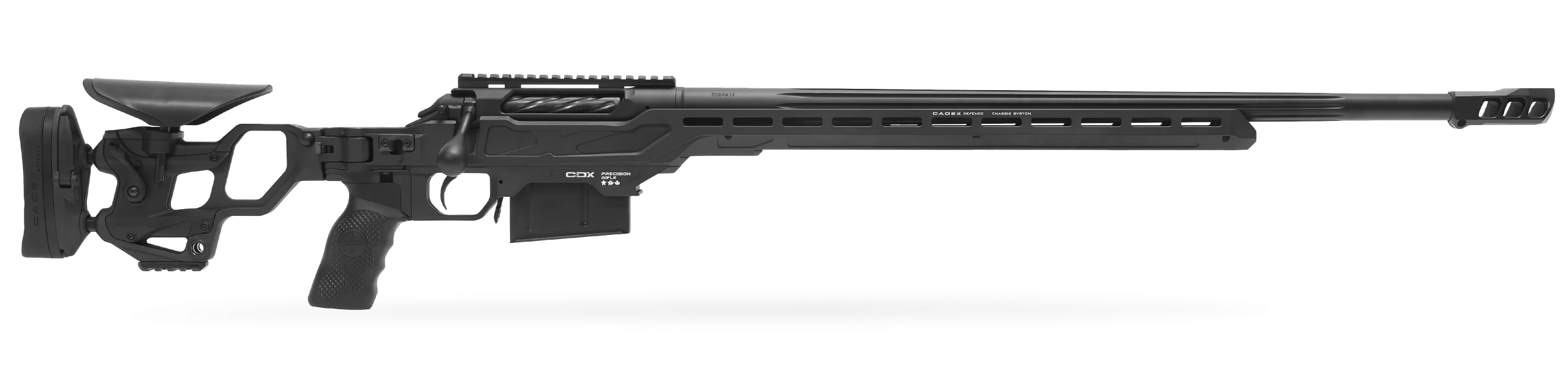

Hover over the numbers in the picture and have a tooltip with a description.
- PRO tool-free fully adjustable stock for length of pull, cheek piece and recoil pad height. Includes
a neoprene cheek pad. - Monopod rail or optional bean bag riders.
- Rock solid reverse folding stock mechanism with free-play adjustable hinge system to remove
loosening that may develop over time. - Finger-grooved Cadex rubberized grip.
- Oversized trigger guard and magazine release for easy manipulation with gloves.
- Made from aircraft grade 6061-T6 aluminum billets, anodized and painted with a military grade
non-reflective paint.
- Detachable base provides easy trigger access for maintenance and trigger adjustment. This allows the platform to maintain zero. Made of aluminum.
- Optional centre bipod rail or tripod adaptor.

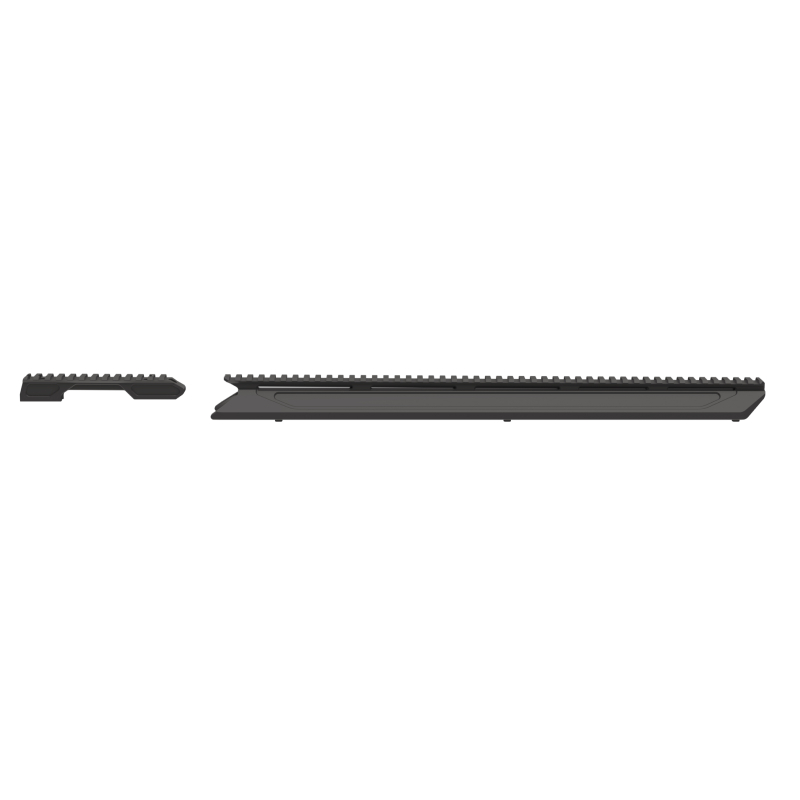

- Fully open top chassis with extra-long 15.5″ M-LOK fore-end with 11 side and 9 bottom M-LOK slots. Optional 20 MOA full length XS NVD bridge available (not shown).
- Maximum barrel diameter 1.350″.
