CDX-R7 CRBN Series
After spending years perfecting our multiple tactical and long range platforms, it was time for Cadex to diversify its selection. This is why we added two rifles oriented towards the performance hunter. The CDX-R7 CRBN rifle is designed with back country hunters in mind. Unlike other manufacturers out there aiming at the absolute lightest materials available, Cadex oriented this rifle towards a perfect balance between weight reduction and no compromise on stability. We equipped the CDX-R7 CRBN model with the best carbon fiber barrel on the market: Bartlein®. If you are looking for a reliable hunting rifle of a superior craftsmanship, fit and finish than what is offered from mass production gun makers, the CDX-R7 CRBN is what you’ve been searching for.
Compatibility chart
Available colors
Chassis features and specifications
Specifications
Compatible optional accessories
Cerakote coating
Compatibility chart
| Model | Caliber | BOLT STYLE | Top Rail MOA | Magazine type | Magazine capacity* | Included magazine | Barrel type | Barrel length | Twist rate | THREAD PITCH | O.A.L.* | O.A.L. FOLDED* | APPROX. WEIGHT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CDX-R7 CRBN SA (short action) | 6.5 Creedmoor | 4 LUG, 50° | 0 (20, 30) | DSSF 3.055" | 5 | MAG100-0041 | Bartlein carbon fiber | 24" | 1:8" | 5/8"-24 | ± 44" | N/A | ± 8.1 lb |
| 6.5 PRC | 4 LUG, 50° | 0 (20, 30) | DSSF 3.055" | 3 | MAG100-0006 | Bartlein carbon fiber | 24" | 1:8" | 5/8"-24 | ± 44" | N/A | ± 8.1 lb | |
| 308 Win | 4 LUG, 50° | 0 (20, 30) | DSSF 3.055" | 5 | MAG100-0041 | Bartlein carbon fiber | 24" | 1:10" | 5/8"-24 | ± 44" | N/A | ± 8.1 lb | |
| 270 WSM | 4 LUG, 50° | 0 (20, 30) | DSSF 3.055" | 3 | MAG100-0006 | Bartlein carbon fiber | 24" | 1:9" | 5/8"-24 | ± 44" | N/A | ± 8.1 lb | |
| 300 WSM | 4 LUG, 50° | 0 (20, 30) | DSSF 3.055" | 3 | MAG100-0006 | Bartlein carbon fiber | 24" | 1:10 | 5/8"-24 | ± 44" | N/A | ± 8.1 lb | |
| CDX-R7 CRBN LA (long action) | 270 Win | 4 LUG, 50° | 0 (20, 30) | SSSF 3.715" | 5 | MAG100-0039 | Bartlein carbon fiber | 24" | 1:9" | 5/8"-24 | ± 44.9" | N/A | ± 8.2 lb |
| 7 PRC | 4 LUG, 50° | 0 (20, 30) | SSSF 3.850" CIP | 5 | MDT-3PR | Bartlein carbon fiber | 24" | 1:8" | 5/8"-24 | ± 44.9" | N/A | ± 8.2 lb | |
| 300 Win Mag NEW | 4 LUG, 50° | 0 (20, 30) | SSSF 3.715 | 5 | MAG100-0001 | Bartlein carbon fiber | 26" | 1:10" | 5/8"-24 | ± 46.9" | N/A | ± 8.4 lb | |
| 28 Nosler | 4 LUG, 50° | 0 (20, 30) | SSSF 3.850" CIP | 5 | MDT-3PR | Bartlein carbon fiber | 26" | 1:9" or (1:8") | 5/8"-24 | ± 46.9" | N/A | ± 8.4 lb | |
| 300 PRC | 4 LUG, 50° | 0 (20, 30) | SSSF 3.850" CIP | 5 | MDT-3PR | Bartlein carbon fiber | 26" | 1:8" | 5/8"-24 | ± 46.9" | N/A | ± 8.4 lb | |
| 300 RUM | 4 LUG, 50° | 0 (20, 30) | SSSF 3.850" CIP | 5 | MAG100-0043 | Bartlein carbon fiber | 26" | 1:8" | 5/8"-24 | ± 46.9" | N/A | ± 8.4 lb | |
| 338 Lapua Mag | 4 LUG, 50° | 0 (20, 30) | SSSF 3.850" CIP | 5 | MAG100-0022 | Bartlein carbon fiber | 26" | 1:9 1/2" | 5/8"-24 | ± 46.9" | N/A | ± 8.4 lb |
*Higher capacity magazines sold separately
Dimensions do not include the muzzle brake.
DISCLAIMER: Too many components are involved to accurately predict a rifle’s final weight. It is impossible to confirm the weight of all our rifle models because it varies depending on each caliber.
For more information, please refer to our Catalog (pdf-format or flipbook), or contact us at customerservice@cadexinc.com
Available colors
Black (BLK)
Tan (Tan)
Hybrid Tan/Black (HTB)
O.D. Green (ODG)
Hybrid Green/Black (HOD)
Stealth Shadow Vortex (SSV)
Hybrid Stealth Shadow (HSB)
Sniper Grey (GRY)
Hybrid Grey/Black (HGB)
Stormtrooper White (WHT)

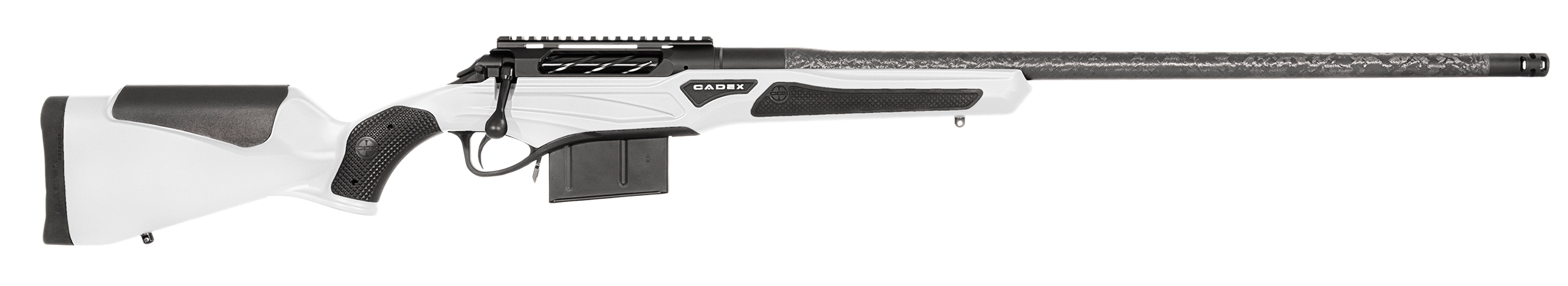

Hybrid White/Black (HWB)
Burnt Bronze (BRZ)

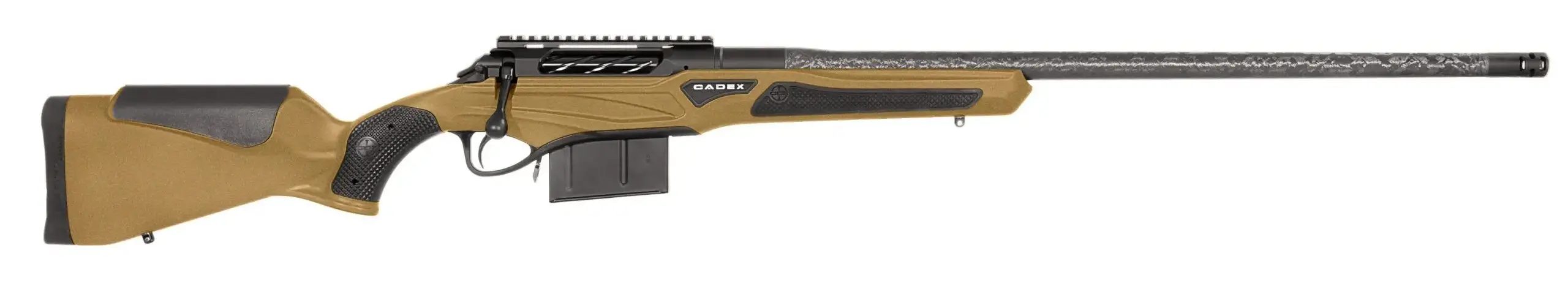

Hybrid BRONZE/Black (HBB)
Hunter Orange (ORG)
Hybrid Orange/Black (HOr)
ROBIN'S EGG BLUE (EGG)
Hybrid ROBIN'S EGG BLUE (HEB)
NRA Blue (NRA)
Hybrid NRA BLUE (HNR)
USMC red (RED)
Hybrid USMC RED (HUS)
Chassis features and specifications
Hover over the numbers in the picture and have a tooltip with a description.
- Cadex recoil pad.
- Neoprene cheek pad.
- Front and rear sling stud.
- Rubberized grip insert.
- Oversized trigger guard and magazine release for easy manipulation with gloves.
- AICS magazine type:
– Short Action: DSSF 3.055″
– Long Action: SSSF 3.715″, 3775″ and 3.850″ CIP - Front rubberized grip insert.
- Fore-end inserts for sporter and heavy barrel included.
Specifications
Hard Case included
Cadex Hunter Series hard case with foam included with the rifle.
Hunting Style Muzzle Brake
Hunting style muzzle brake included.
Aluminum bedding blocks
Aluminum bedding blocks. No bedding required.
Receiver
Action rail
Available in 0, 20 or 30 MOA.
Unique top rail localization system with integrated recoil groove machined into the action upper section.
Bolt
Spiral fluted bolt 4 lug with 50° bolt throw.
Material : Stainless 416
Hunting style bolt knob
Low profile slim round blot knob.
Barrel
Bartlein carbon fiber match grade barrel (stainless steel inner core).
Recoil lug
Heavy duty recoil lug.
Triggers
DX2 Evo Straight Shoe Trigger: The Cadex DX2 Evo trigger is a Double Stage Trigger capable to be rapidly converted into a Single Stage Trigger by its operator. Its trigger pull weight can be easily adjusted between 1.5 to 2.5 lbs. If you haven’t figured yet if you prefer a Single Stage or Double Stage Trigger, you can’t go wrong with the DX2 Evo.
Buttstock
Cadex recoil pad and neoprene cheek pad.
Grip
Rubberized grip insert.
Trigger guard
Oversized trigger guard and magazine release for easy manipulation with gloves.
