LOW PROFILE FLIP-UP MOUNT
Home — Products — Helmet Electro-Optic Mount & Accessories — Low Profile Flip Up mount


The Cadex low-profile flip-up mount is a ruggedized aluminum NVG mount that combines lightness and a low-profile design with a maximum range of adjustability.
Features
- Ergonomic “one touch” height adjustment allows the operator to adjust the height with one hand.
- Low profile design follows helmet contour when folded.
- Six positions adjustable mounting plate fits numerous facial profiles and helmet mounting systems.
- Locked in a stowed position.
- Force overcome in down/deployed position.
- If the NVG is bumped or impacted, the low-profile flip-up mount will fold and lock in an upright position protecting the NVG and operator.


6 position adjustable mounting plate

Compatible with Ops-Core helmets

Compatible with universal shrouds

Stowed position
For more information, please refer to our Catalog (pdf-format or flipbook), or contact us at customerservice@cadexinc.com
Configuration
CONFIGURATION | PART # | MATERIAL | DOVETAIL CARRIAGE | BAYONET CARRIAGE | BREAK-AWAY FEATURE | COLOR |
---|---|---|---|---|---|---|
DOVETAIL | 643-5878-DV-BLK | Aluminum | Included | N/A | N/A | Black |
643-5878-DV-BA-BLK | Aluminum | Included | N/A | Break-Away | Black | |
643-5878-DV-TAN | Aluminum | Included | N/A | N/A | Tan | |
643-5878-DV-BA-TAN | Aluminum | Included | N/A | Break-Away | Tan | |
BAYONET | 643-5878-BY-BLK | Aluminum | N/A | Included | N/A | Black |
643-5878-BY-BA-BLK | Aluminum | N/A | Included | N/A | Black | |
643-5878-BY-TAN | Aluminum | N/A | Included | N/A | Tan | |
643-5878-BY-BA-TAN | Aluminum | N/A | Included | Break-Away | Tan |

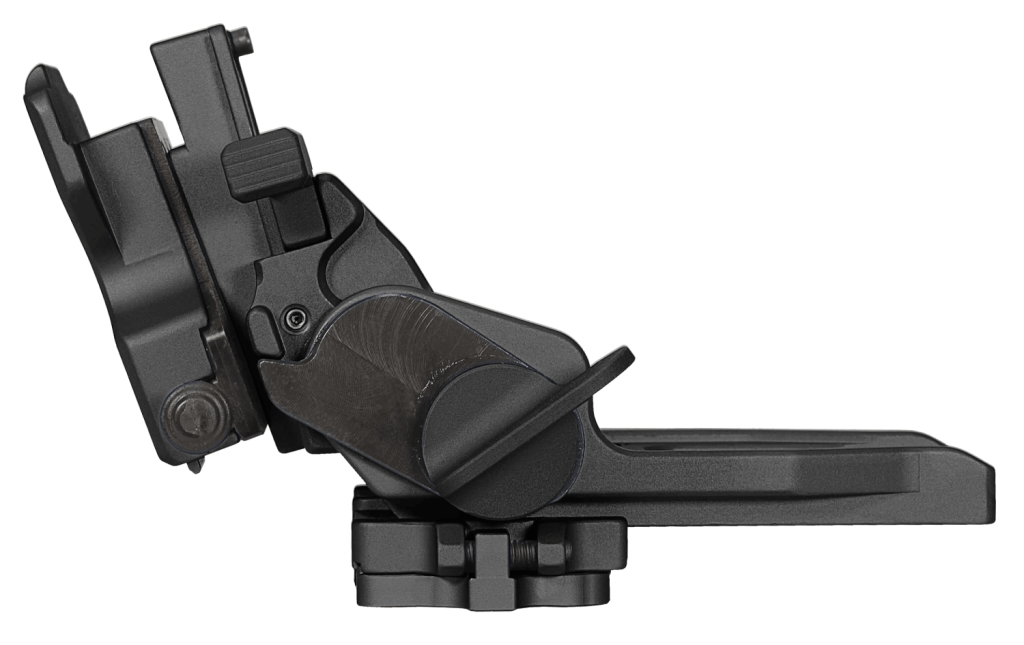

Black color variant

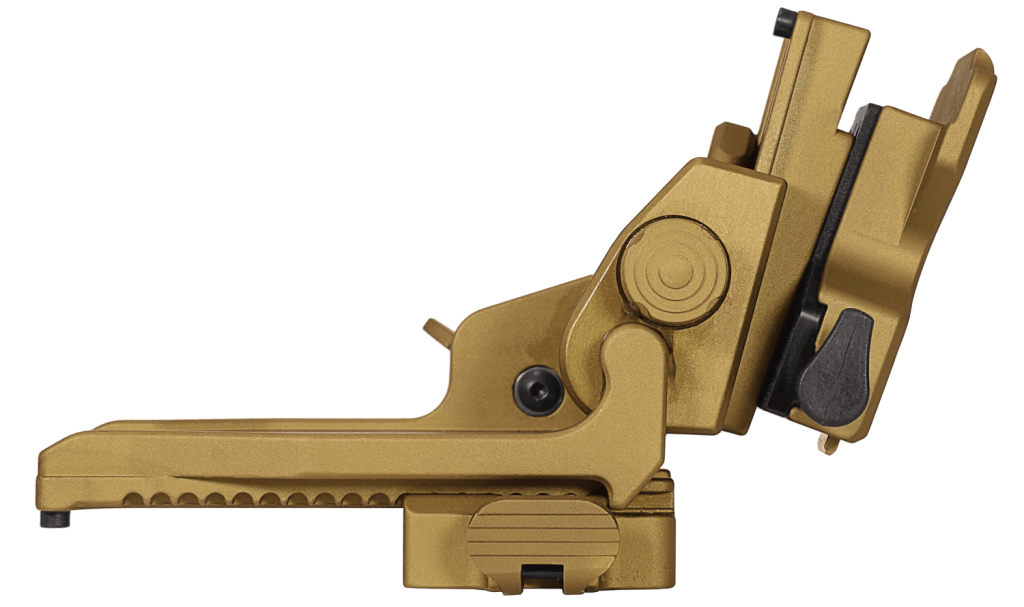

Tan color variant


Disclaimer:
Aluminum parts react differently depending on their alloy composition, shape geometry, surface finish and temper. For these reasons, Tan color anodization may vary slightly from run to run and is not considered a defect
Our break-away feature allows the operator to select between the locked position (which requires pushing a button to remove the mount) or the unlocked position (which allows it to break-away under stress so as to prevent injury).
Our break-away feature allows the operator to select between the locked position (which requires pushing a button to remove the mount) or the unlocked position (which allows it to break-away under stress so as to prevent injury).
BREAK-AWAY FEATURE

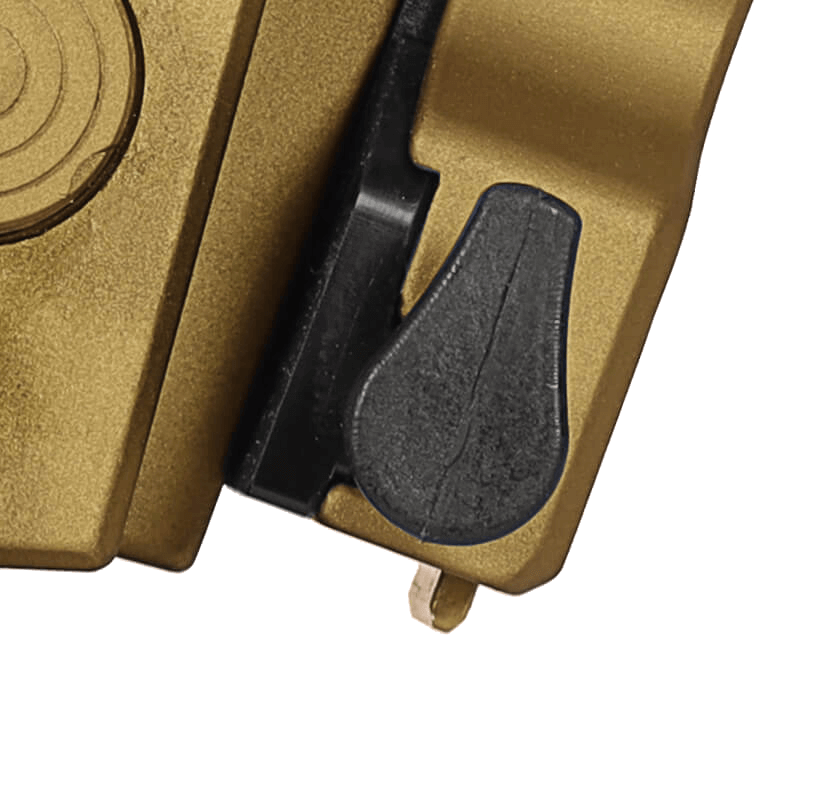

Break-Away deactivated

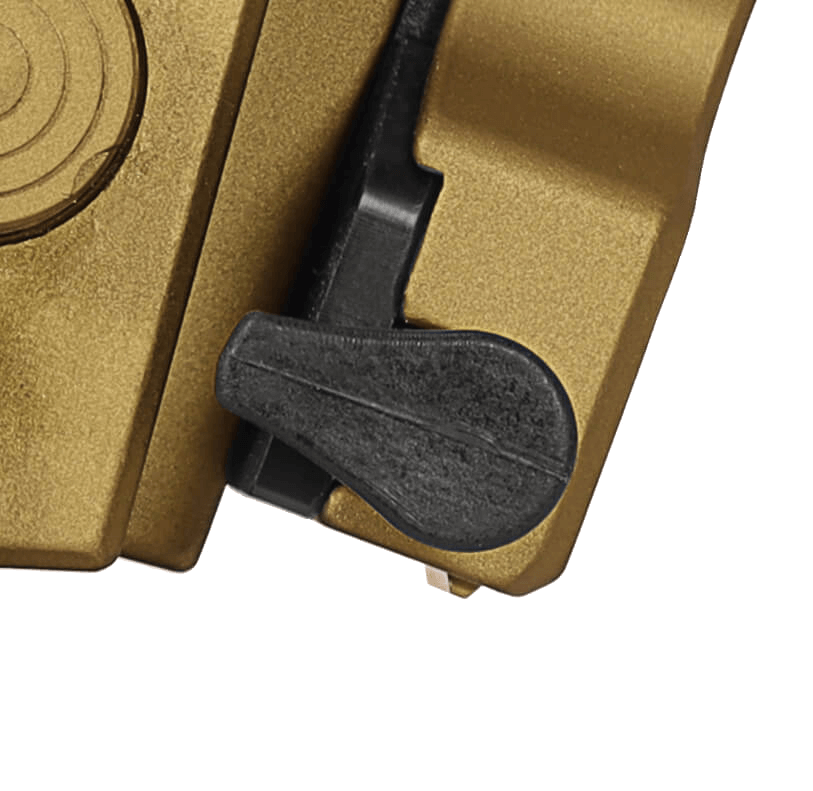

Break-Away activated
Break-Away activated

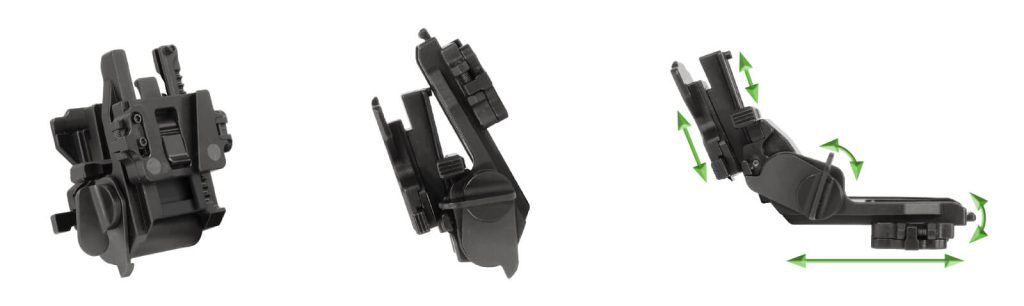

Dovetail Configuration
DOVETAIL Configuration

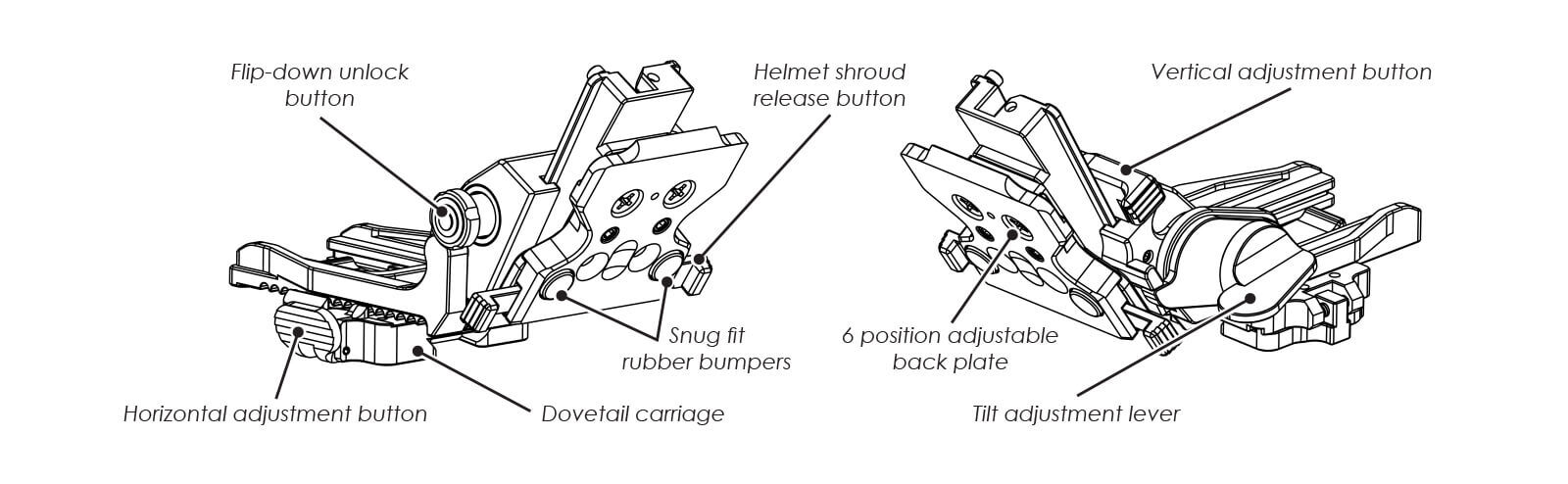

Mechanism Features

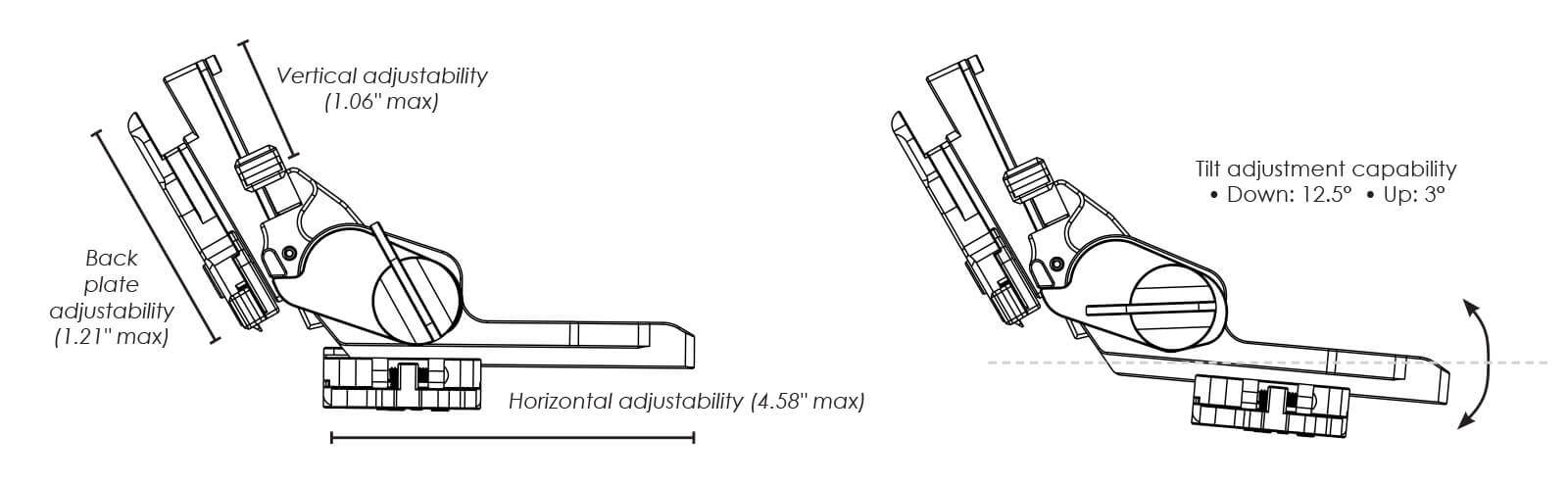

ADJUSTMENT CAPABILITY

DOVETAIL CARRIAGE
(Part#: 643-5878-A003)

Bayonet Configuration
Bayonet Configuration

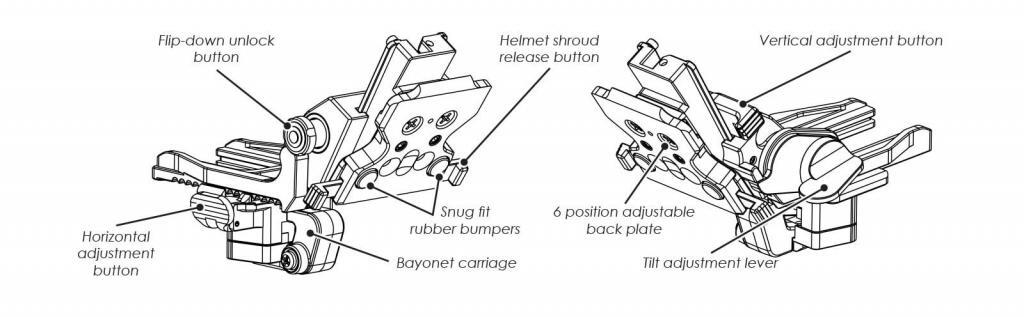

Mechanism Features

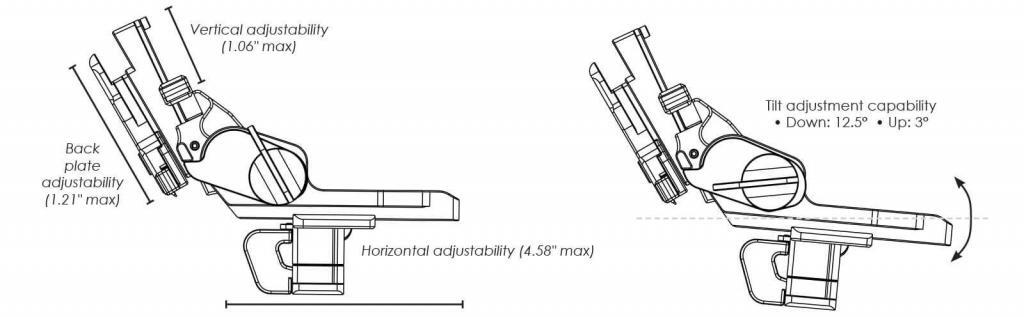

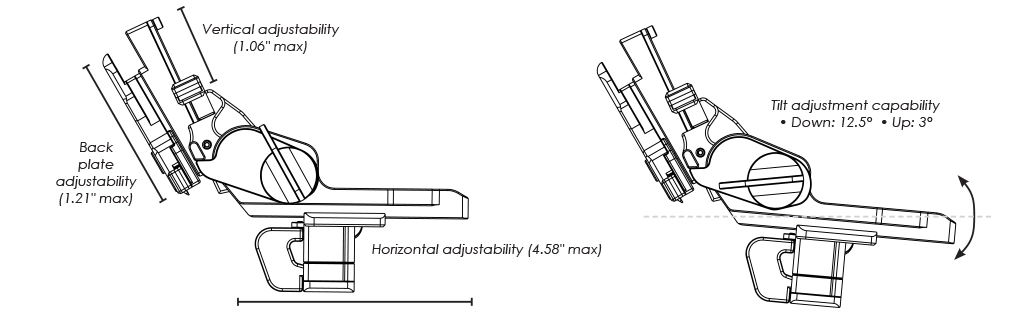

ADJUSTMENT CAPABILITY

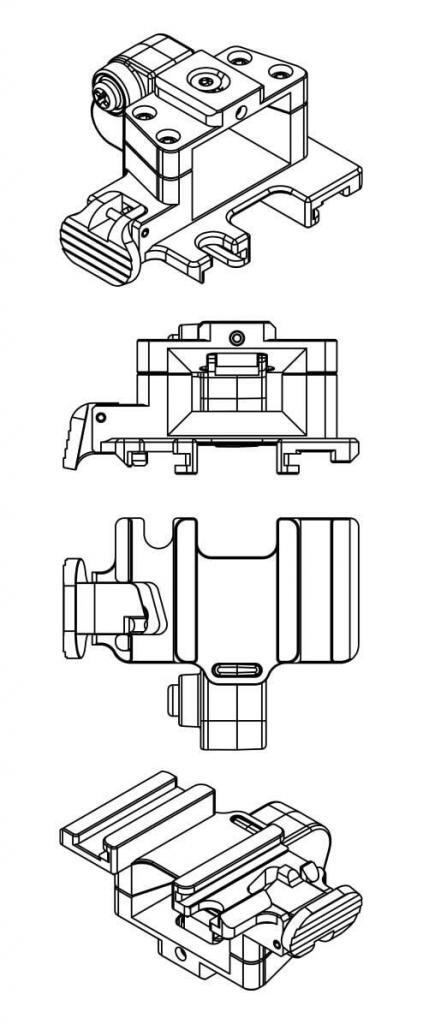

DOVETAIL CARRIAGE
(Part#: 643-5878-A007)
