Cadex Carbon Tripod

3 SECTIONS EXTENDED
± 78″ | 198.12 cm

2 SECTIONS EXTENDED
± 60.25″ | 153.04 cm

1 SECTION EXTENDED
± 43.75″ | 111.13 cm

NO SECTION EXTENDED
± 28.75″ | 73.03 cm

If you have never experienced shooting from a tripod, you have yet to experience the best-kept secret in the shooting sports industry. Tripods are not just a PRS shooting trend, they completely revolutionized hunting and long-range shooting by providing hunters and shooters with unprecedented versatility. Being able to engage targets without ever being worried about finding a suitable shooting stance is a game changer. The tremendous clamping power of the 55mm ball head is capable of securing rifles up to 55 pounds. Its 360º adjustable ball head with a quick-release lever allows for rapid installation and removal of the rifle. The 40mm diameter carbon fiber legs can support a weight of up to 110 pounds, making it the strongest and most rigid portable tripod. The CDX tripod offers the ultimate adjustability, versatility and stability a tripod could offer. Whether for hunting, photography or for reconnaissance operations, the CDX carbon fiber tripod with ball head is a must.

click to buy

Tripod Features

  • Aircraft grade aluminum with hard anodized finish.

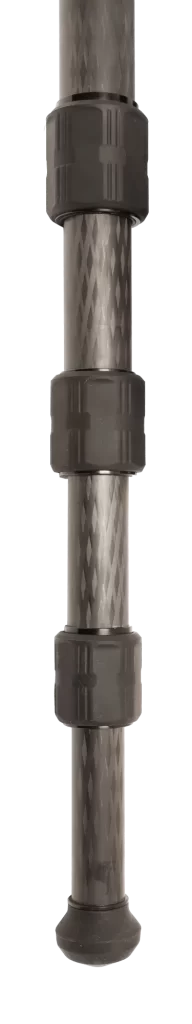

  • 40mm diameter, 10-layer carbon fiber, 4 segment legs with rapid ¼ turn leg
    lock system that rise to a maximum height of 78”.
  • 3 position articulated legs (basic 25º, wide 55º and prone 85º positions).
  • 100mm quick-release plate with universal 3/8-16 mounting screw.
  • 50 kg / 110 lbs max weight.
  • Interchangeable rubber feet and steel spikes are included.
  • Underbelly counterweight hook.

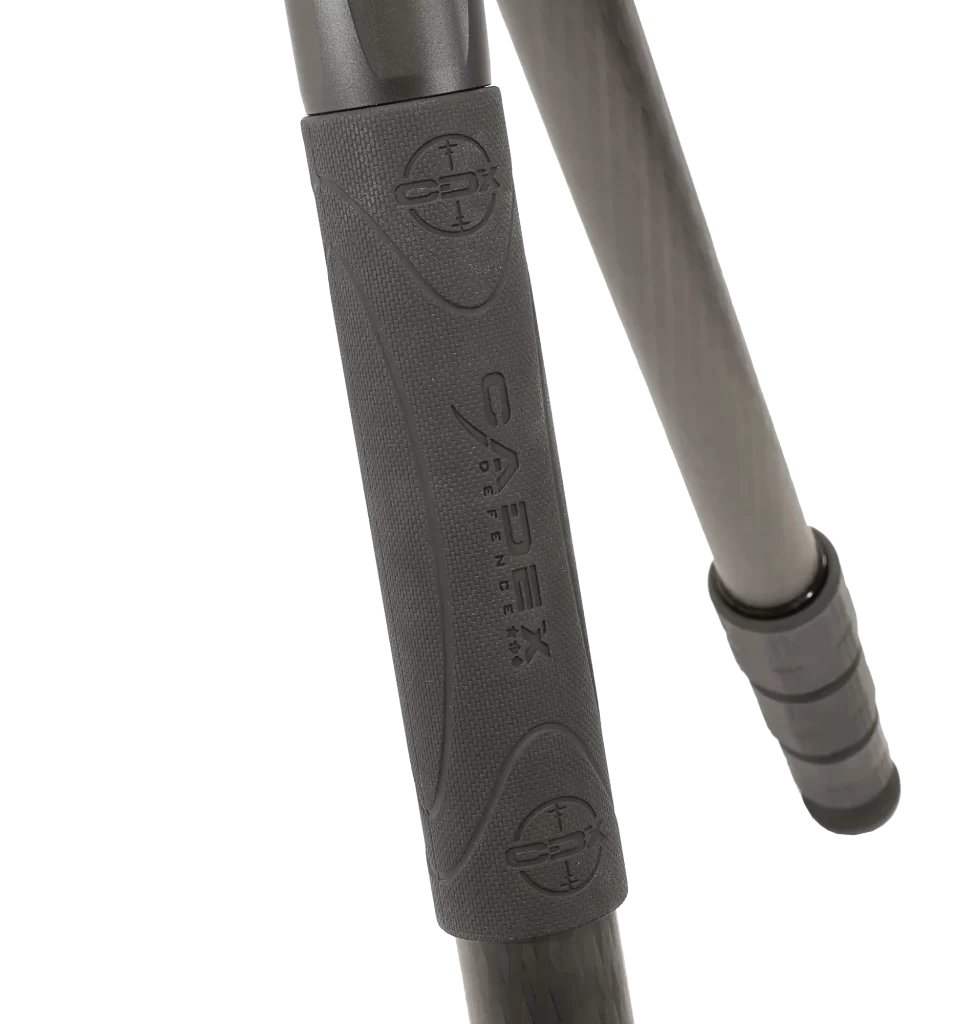

  • Cadex rubberized handle.

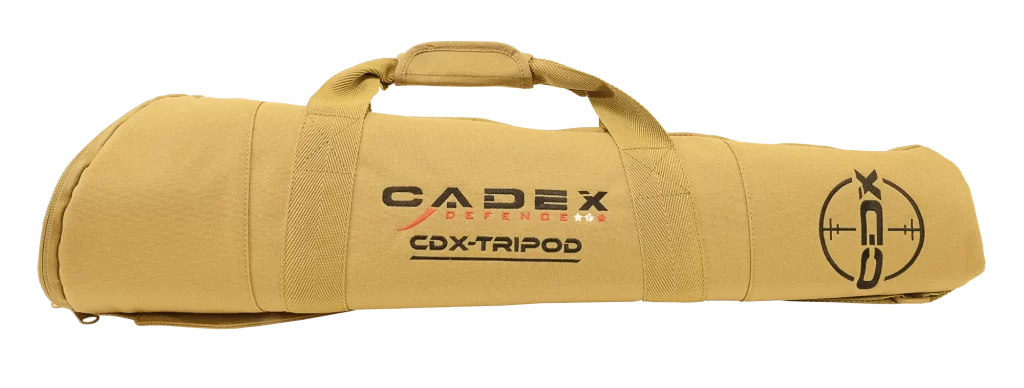

  • Tan color padded transport bag with Cadex embroidered logos.

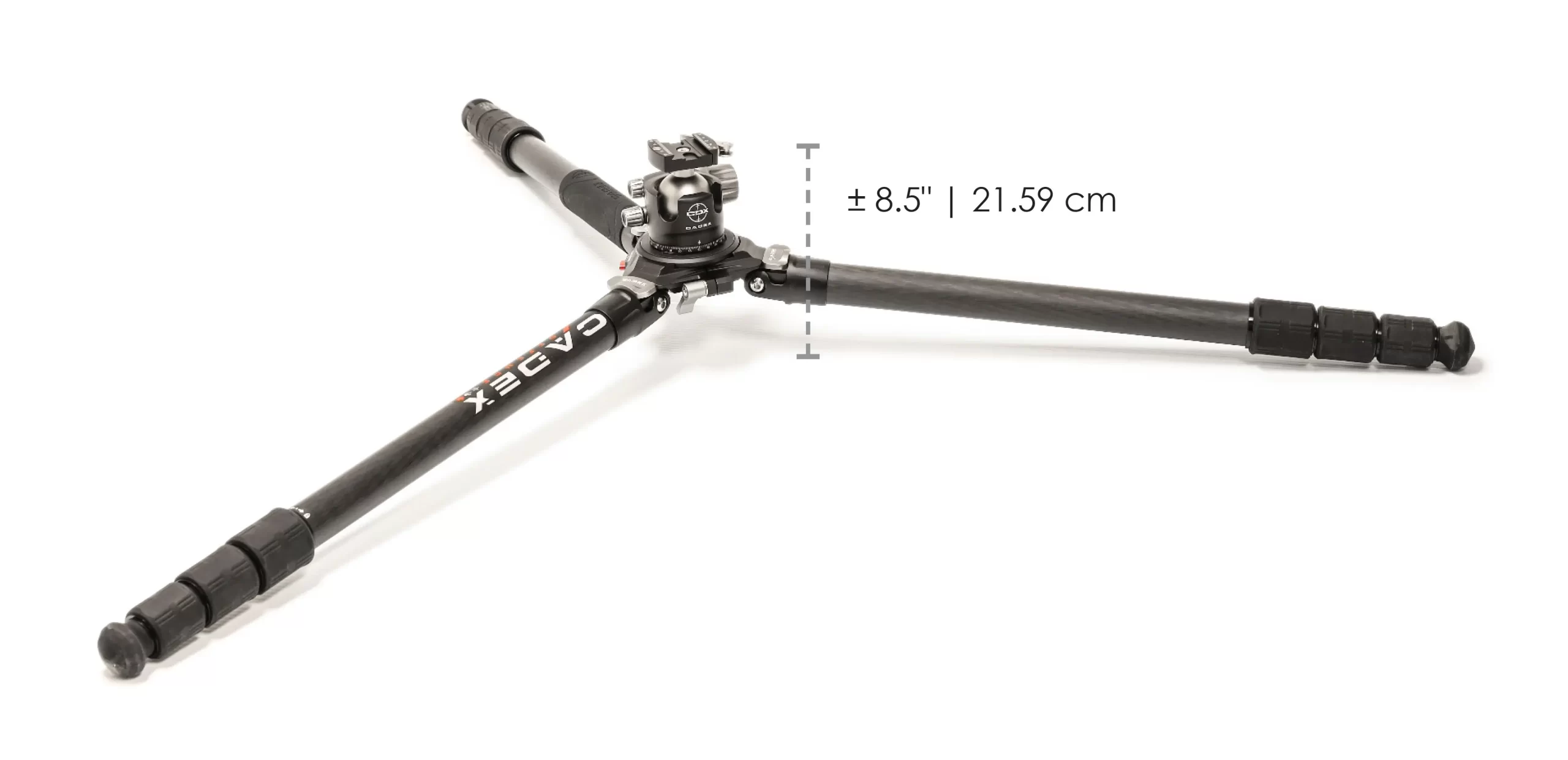

8.5" ground clearance when fully collapsed for prone shooting
For more information, please refer to our catalog or contact us at customerservice@cadexinc.com

For more information, please refer to our Catalog (pdf-format or flipbook), or contact us at customerservice@cadexinc.com

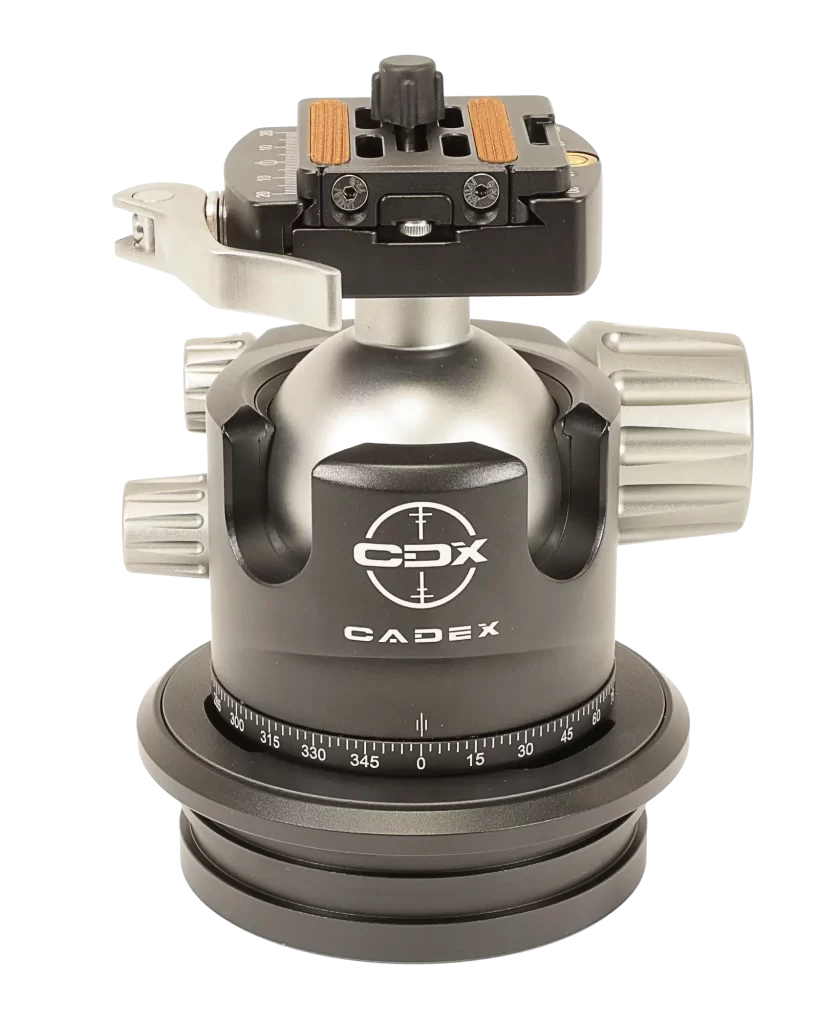

Ball Head Features

  • Aircraft grade aluminum with hard anodized finish.
  • Silky smooth 55mm diameter heavy-duty ball head.
  • 25 kg / 55 lbs max weight.
  • 3 tension lock knobs (rotation, panning/canting).
  • Arca-Swiss clamp with quick-release lever and 1/4-20 screw Q-R plate.
  • Also compatible with CDX Arca Elite System (AES).
  • Tooling included.
Fast takedown head

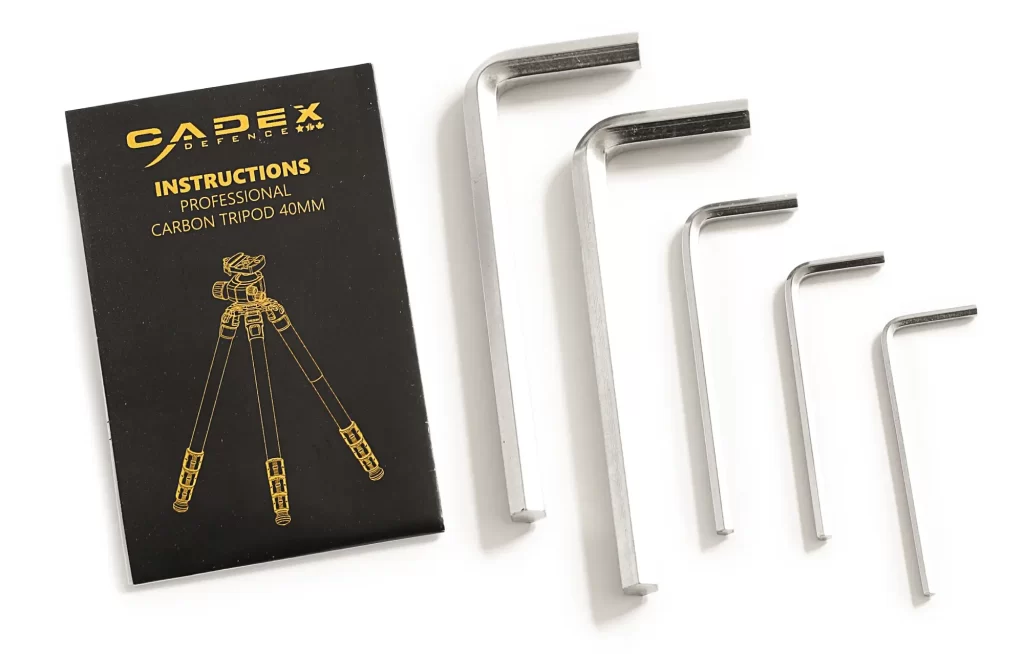

Instructions and tooling included

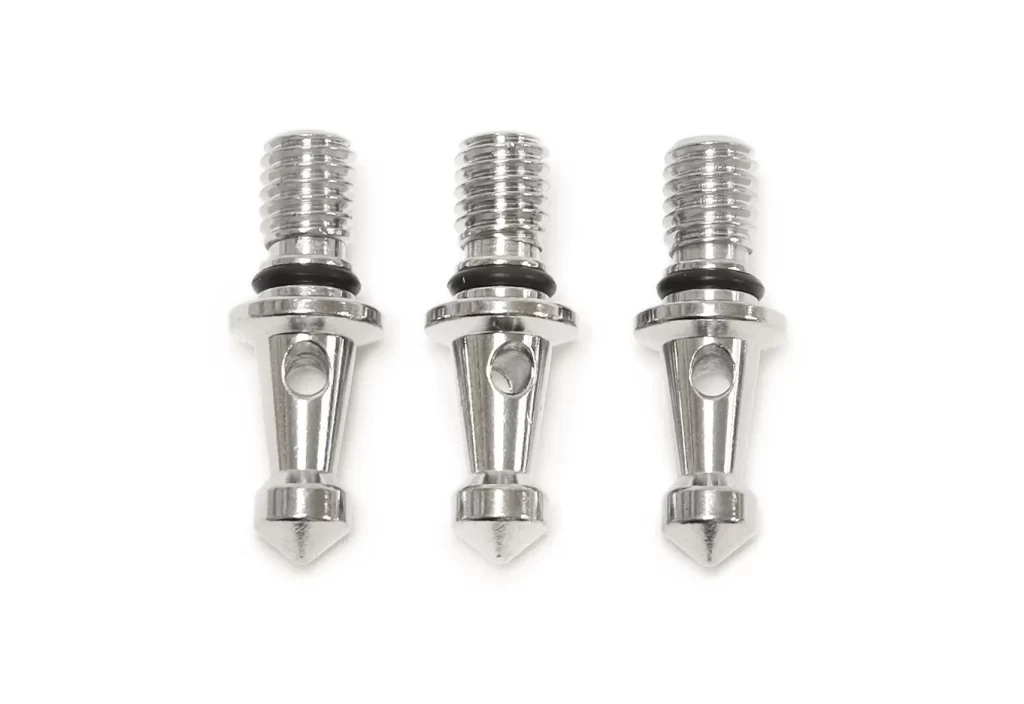

Interchangeable steel spikes included

Configuration

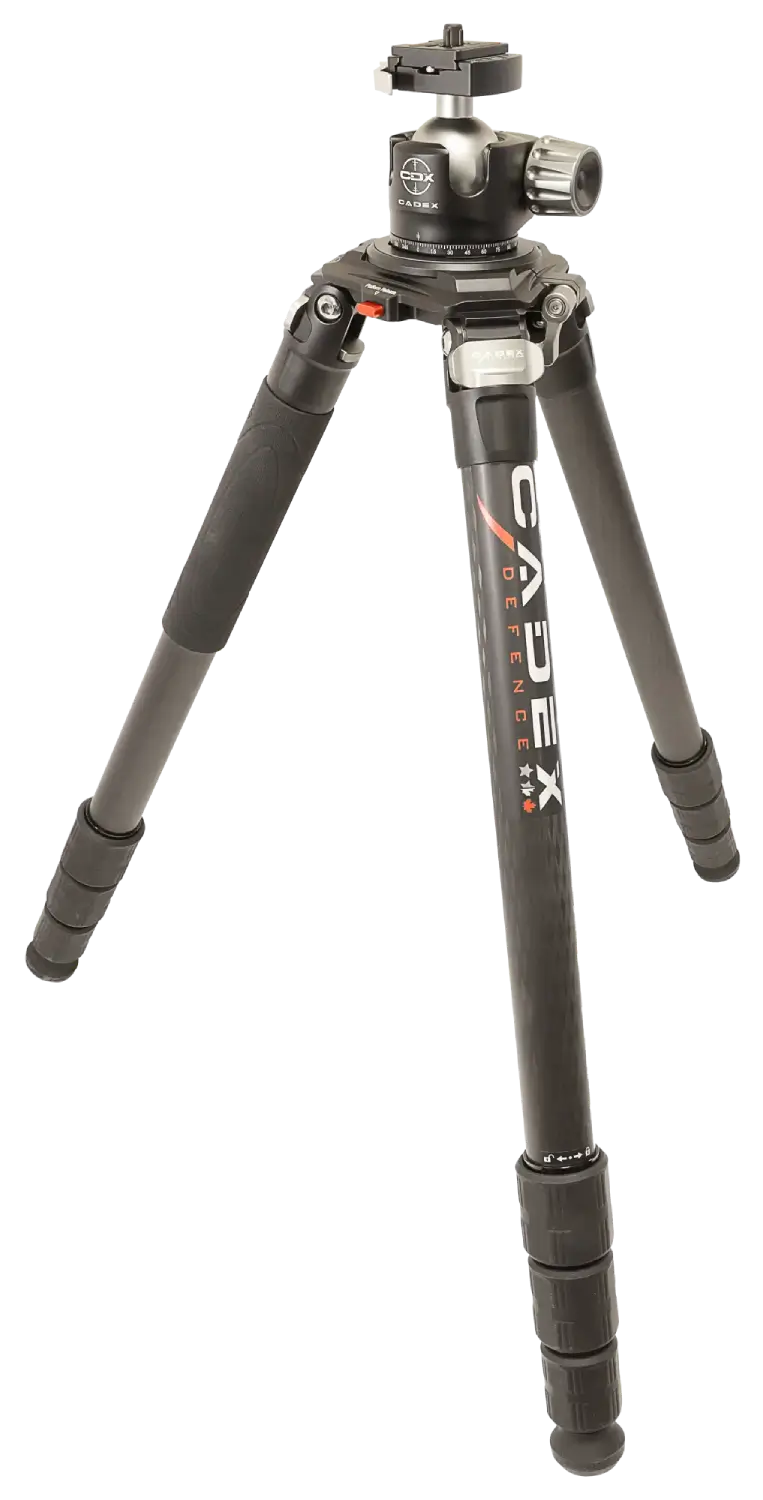

CDX Carbon Tripod

Part#: CDX-TRIPOD

Minimum height: 8.5″ | 21.59 cm
Maximum height: 78″ | 198.12 cm
Tripod weight (±) : 6.83 lbs | 3098 grams
Ball head weight (±) : 2.16 lbs | 980 grams
Total weight (±) : 8.99 lbs | 4078 grams

40mm diameter, 10-layer carbon fiber, 4 segment legs with rapid ¼ turn leg lock system

Please see your local dealer/distributor for pricing and details.
