GEN 2 UNITIZED SCOPE MOUNTS
The Cadex Gen 2 unitized scope mounts provide a rock-solid optic mounting solution for precision rifles. These are machined from a solid one-piece aluminum billet for maximum rigidity and perfect alignment between the front and rear rings. The Gen2 models use a 6-screw pattern and are modular so that you can interchange front and rear top rings. We offer these mounts in both standard and quick-detachable (QD) variants.
Target distances are getting farther, calibers are more powerful than ever and riflescopes are constantly getting heavier. For these reasons, a top-quality scope mount is arguably the most important element of a precision rifle package. If the mount does not hold the scope perfectly aligned with your point of aim, and moves even just a hair, you will never hit that long range target.
FEATURES
- CNC machined for precise alignment of the front and rear scope bearing surfaces.
- The base incorporates a high-grade steel cross lug and nuts to secure the ring to the weapon rail.
- The dovetail is machined to fit all Mil-Std M1913 rails.
- A Unitized body ensures that the scope is secured with no twisting of the optical tube assembly and no shifting under heavy recoil.
- Customers may request different ring diameters and heights to fill their particular requirements.
BUILD YOUR UNITIZED SCOPE RINGS
STANDARD UNITIZED SCOPE MOUNT
QUICK-DETACH UNITIZED SCOPE MOUNT
QD CANTILEVER UNITIZED SCOPE MOUNT
For more information, please refer to our Catalog (pdf-format or flipbook), or contact us at customerservice@cadexinc.com
All Steps
Step #1
Select base model:
Standart base
QUICK-DETACH BASE
QD CANTILEVER BASE (NEW)
QD CANTILEVER BASE (NEW)
with dual lever locking system
| Part # | Height | Diameter | Type |
|---|---|---|---|
| STANDARD BASE | |||
| 1556-B30SL | 1.000" | 30mm | Super Low |
| 1556-B30L | 1.250" | 30mm | Low |
| 1556-B30H | 1.500" | 30mm | High |
| 1556-B34SL | 1.000" | 34mm | Super Low |
| 1556-B34L | 1.250" | 35mm | Low |
| 1556-B34H | 1.500" | 34mm | High |
| 1556-B35L | 1.250" | 35mm | Low |
| 1556-B35H | 1.500" | 35mm | High |
| 1556-B36H | 1500" | 36mm | High |
| QUICK-DETACH BASE | |||
| 1556-QD-B30H | 1.500" | 30mm | High |
| 1556-QD-B34H | 1.500" | 34mm | High |
| 1556-QD-B35H | 1.500" | 35mm | High |
| QD CANTILEVER BASE (with dual lever locking system) | |||
| 1556-QD-CANT30H | 1.500" | 30mm | High |
| 1556-QD-CANT34H | 1.500" | 34mm | High |
Step #2
Select rear top ring model:
STANDARD TOP RING
(R130, R134, R135)
BUBBLE LEVEL TOP RING
(R230, R234, R235, R236)
BUBBLE LEVEL TOP RING WITH ANGLE COSINE INDICATOR
(R330, R334, R335)
Step #3
Select front top ring model:
STANDARD TOP RING
(F130, F134. F135)
PICATINNY TOP RING (HIGH) (bore height: 1.3")
(F230H, F234H, F235H)

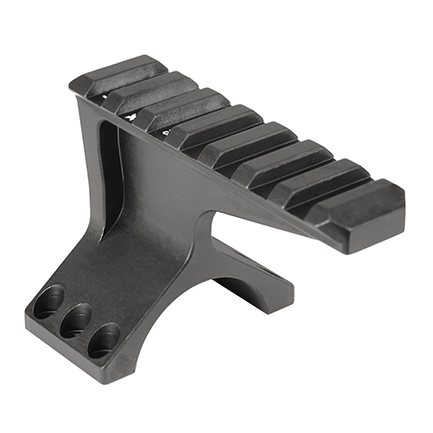

PICATINNY DIVING BOARD (EXTRA HIGH) (bore height: 2.2")
(F230H, F234H, F235H, F236EH)
