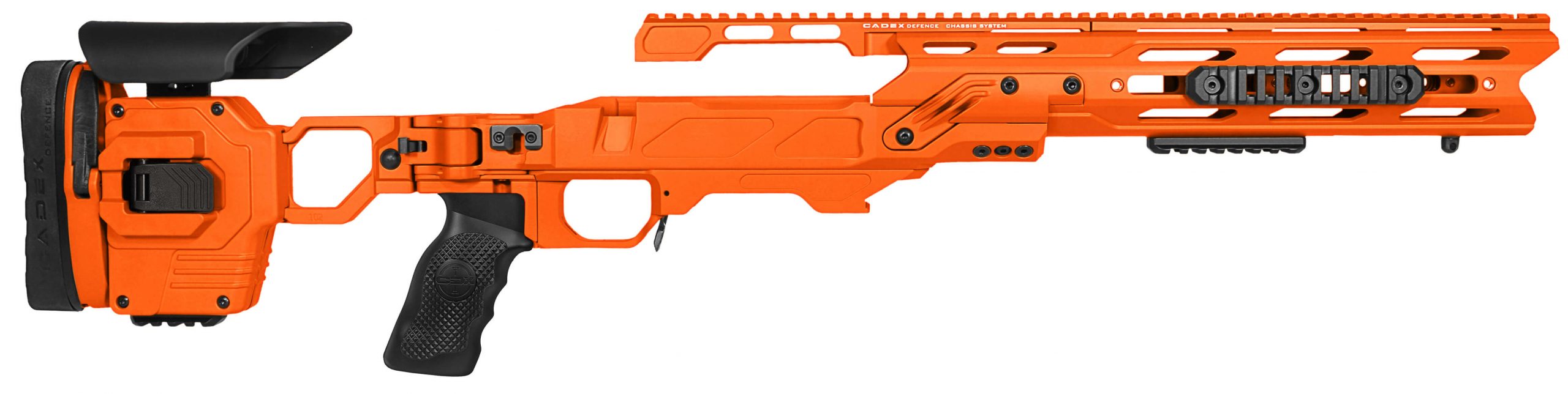

Dual Strike
Home — Products — Chassis Systems — Dual Strike Chassis



Ultimate chassis system currently in use worldwide by Special Forces units and long range shooters. This is the most stable and ruggedized chassis system on the market. The Dual Strike chassis is built from aluminum billets to avoid any weakness commonly found in cheaper products using aluminum castings. It is the chassis model that holds the record for the longest sniper kill ever reported and the one against all other chassis are measured.
SHORT ACTION
Dimensions: | 33.5″ x 3.1″ x 8.13″ (85.09 x 7.87 x 20.65 cm) |
Dimensions (folded): | 24.73″ x 4.92″ x 8.13″ (62.9 x 12.5 x 20.65 cm) |
Weight (±) : | 7.27 lbs (3300 grams) |
LONG ACTION
Dimensions: | 34.25″ x 3.1″ x 8.13″ (86.99 x 7.87 x 20.65 cm) |
Dimensions (folded): | 25.27″ x 4.68″ x 8.13″ (64.2 x 11.9 x 20.65 cm) |
Weight (±) : | 7.43 lbs (3372 grams) |
50 BMG
Dimensions: | 34″ x 3.03″ x 8.34″ (86.36 x 7.71 x 21.18 cm) |
Dimensions (folded): | 24.76″ x 5.07″ x 8.34″ (62.9 x 12.9 x 21.18 cm) |
Weight (±) : | 8.15 lbs (3697 grams) |

Available with skeleton stock

* Other platforms & calibers are available upon request.
* Cadex chassis does not include any magazine. Magazines must be ordered separately.
* CheyTac is a registered trademark of CheyTac USA Inc. Cadex Defence is not affiliated with, endorsed by, or sponsored by CheyTac USA.
For more information, please refer to our Catalog (pdf-format or flipbook), or contact us at customerservice@cadexinc.com
Available Colors
Features and Specifications

Fully adjustable stock for length of pull, cheek piece and recoil pad height. (L.O.P.: 12.95" - 14.57")
Monopod rail or optional bean bag riders.
Reverse folding buttstock offers bolt handle protection and ultra-compact transport.
Finger-grooved Cadex rubberized grip.
Oversized trigger guard and magazine release for easy manipulation with gloves.
20 MOA full-length dual top rail.
20 MOA full-length dual top rail.
Made from aircraft grade 6061-T6 aluminum billets, anodized and painted with a military-grade non-reflective paint.
Detachable base provides easy trigger access for maintenance and trigger adjustment. This allows the platform to maintain zero. Made of aluminum.
Optional center accessory rail kit (2) - Not shown.
Spare screws.
Optional centre bipod rail.
Heavy Duty fore-end tube providing rail placement at 3, 6 and 9 o’clock (included with a flush cup).
Maximum barrel diameter 1.800".
- Tool-free fully adjustable stock for length of pull, cheek piece and recoil pad height. Includes a
neoprene cheek pad. - Monopod rail or optional bean bag riders.
- Reverse folding buttstock offers bolt handle protection and ultra-compact transport.
- Finger-grooved Cadex rubberized grip.
- Oversized trigger guard and magazine release for easy manipulation with gloves.
- 20 MOA full length dual top rail.
- Made from aircraft grade 6061-T6 aluminum billets, anodized and painted with a military grade
non-reflective paint.
- Detachable base provides easy trigger access for maintenance and trigger adjustment. This allows the platform to maintain zero. Made of aluminum.
- Optional centre accessory rail kit (2) – Not shown.
- Spare screws.
- Optional centre bipod rail or tripod adaptor.
- Heavy Duty fore-end tube providing rail placement at 3, 6 and 9 o’clock (included with a flush cup).
- Maximum barrel diameter 1.800″.
Specifications
From the top of the 20 MOA top rail to the center of the bore : approx. 1.60″ where indicated by the red arrow. From the lower receiver to the fore-end tube end : approx. 10.5″ where indicated by the blue arrow. Maximum barrel diameter: 1.800″
Reverse folding butt stock offers bolt handle protection and ultra compact transport
Rattle free locking mechanism. Easy manipulation with gloves.
Offset cam to remove any free play.
Multiple magazine sleeves are available to fit most magazine types on the market.
Removable for trigger maintenance or tuning without need to remove your action and lose your zero.
20 MOA full length dual top rail. Except .50 BMG model that comes with 40 MOA top rail.
Heavy Duty Fore-end tube providing rail placement at 3, 6 and 9 O’Clock.
Finger grooved rubberized Cadex grip
Oversized trigger guard and magazine release for easy manipulation with gloves.
Barreled action sits on 4 rollers to provide a stable platform that reduce barrel vibrations.
