Strike XS

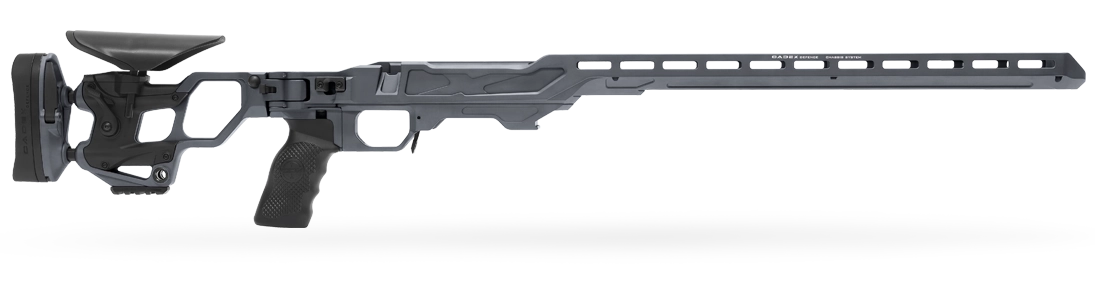

The STRIKE XS is the latest evolution of our long-range chassis systems. It incorporates most features requested by positional shooting competitors without sacrificing any features an operator needs during field operations. This chassis is built from a one-piece lower receiver and fore-end tube carved out of a solid aluminum billet. The fore-end tube features 11 side and 9 bottom M-LOK slots, was lengthened to 15.5″ and was reinforced at critical areas making it our most rigid chassis yet. An optional extra-long NVD bridge is available for a perfect alignment of thermal imaging, night vision devices, Nightforce® prism or “ballistic periscopes” such as the Charlie Tarac®. This chassis is also equipped with our PRO tool-free fully adjustable and foldable buttstock. If you are looking for a chassis capable of doing all types of shooting, such as prone, tripod or even building roof top, the STRIKE XS will fulfill your needs.
SHORT ACTION
| Dimensions: | 38.7″ x 2.26″ x 6.76″ (98.29 x 5.74 x 17.17 cm) |
| Dimensions (folded): | 29.65″ x 4.3″ x 6.76″ (75.31 x 10.92 x 17.17 cm) |
| Weight (±) : | 4.69 lb (2127 grams) |
LONG ACTION
| Dimensions: | 39.55″ x 2.26″ x 6.76″ (100.45 x 5.74 x 17.17 cm) |
| Dimensions (folded): | 30.5″ x 4.3″ x 6.76″ (77.47 x 10.92 x 17.17 cm) |
| Weight (±) : | 4.73 lb (2145 grams) |
For more information, please refer to our Catalog (pdf-format or flipbook), or contact us at customerservice@cadexinc.com
Black (BLK)

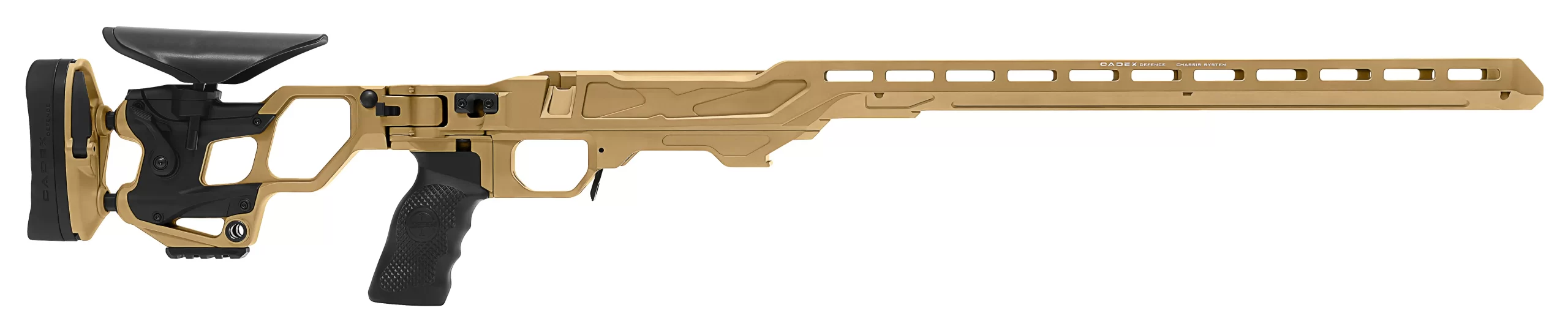

Tan (Tan)
O.D. Green (ODG)
Stealth Shadow Vortex (SSV)

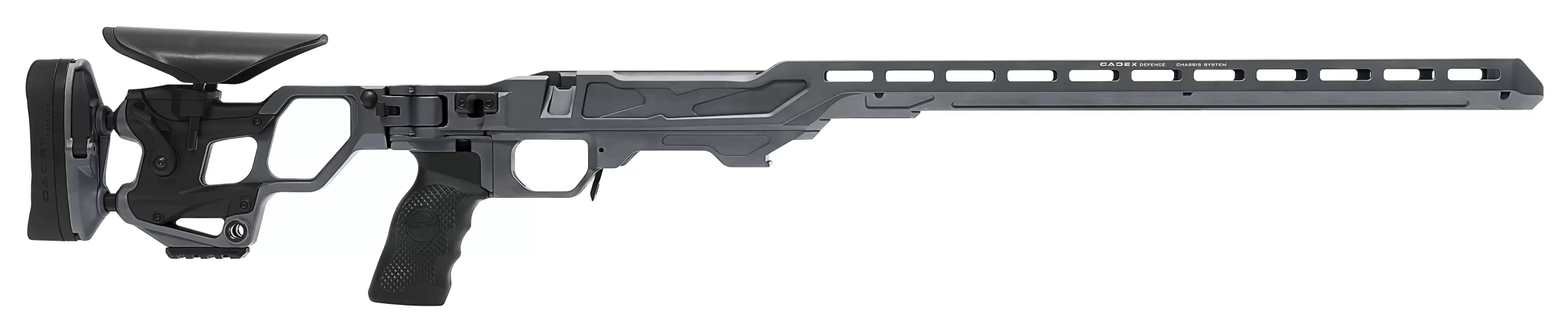

Sniper Grey (GRY)

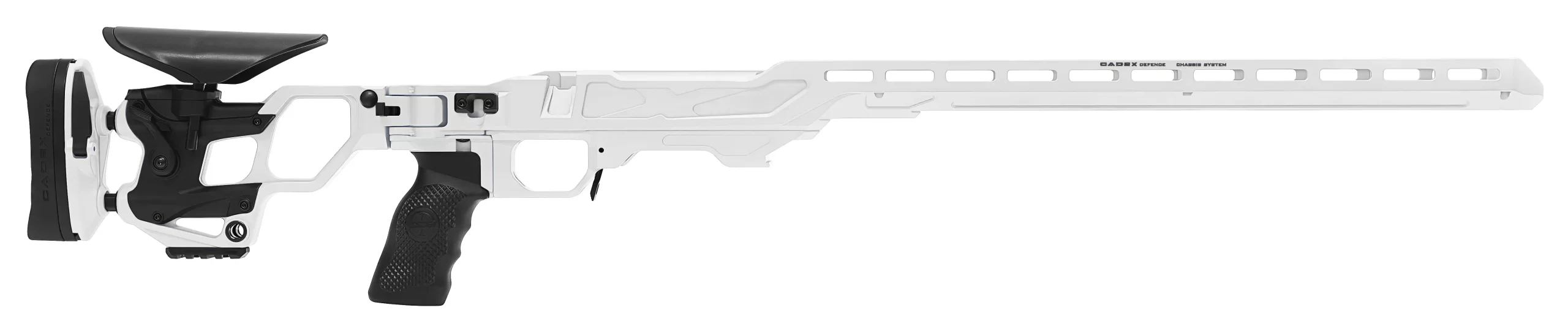

Stormtrooper White (WHT)
Burnt Bronze (BRZ)
Hunter Orange (ORG)

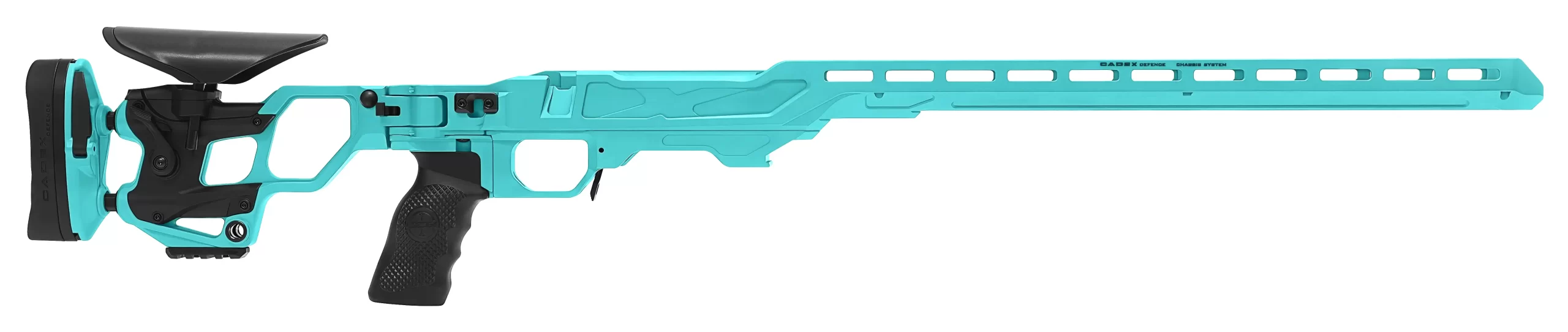

Robin's Egg Blue (EGG)
NRA Blue (NRA)
USMC red (RED)
- PRO tool-free fully adjustable stock for length of pull, cheek piece and recoil pad height. Includes a neoprene cheek pad.
- Monopod rail or optional bean bag riders.
- Rock solid reverse folding stock mechanism with free-play adjustable hinge system to remove loosening that may develop over time.
- Finger-grooved Cadex rubberized grip.
- Oversized trigger guard and magazine release for easy manipulation with gloves.
- Made from aircraft grade 6061-T6 aluminum billets, anodized and painted with a military grade non-reflective paint.
- Detachable base provides easy trigger access for maintenance and trigger adjustment. This allows the platform to maintain zero. Made of aluminum.
- Optional centre bipod rail or tripod adaptor.

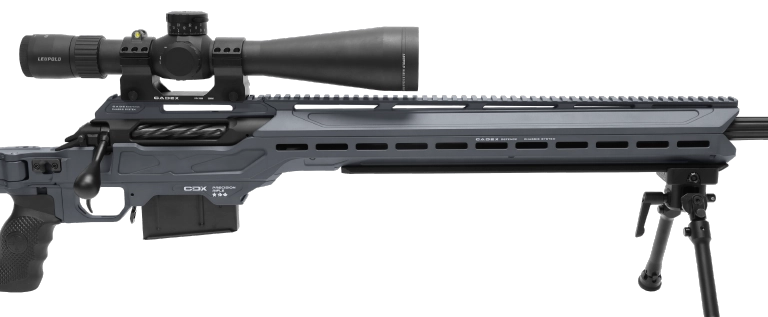

- Fully open top chassis with extra-long 15.5″ M-LOK fore-end with 11 side and 9 bottom M-LOK slots. Optional 20 MOA full length XS NVD bridge available (not shown).
- Maximum barrel diameter 1.250″.
From the lower receiver to the fore-end tube end: approx. 15.8″ where indicated by the blue arrow. Maximum barrel diameter: 1.250″

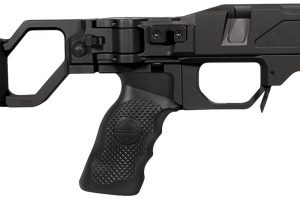

Reverse folding buttstock offers bolt handle protection and ultra compact transport.

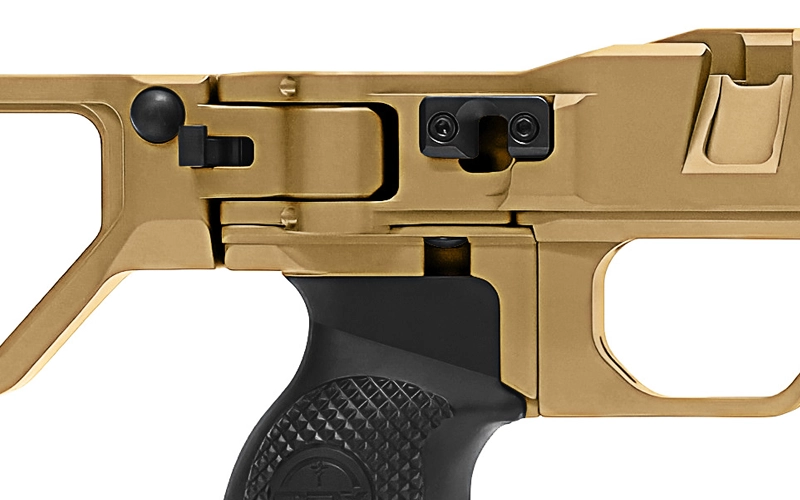

Rattle free locking mechanism. Easy manipulation with gloves.

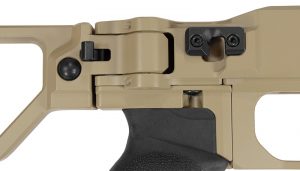

Offset cam to remove any free play.

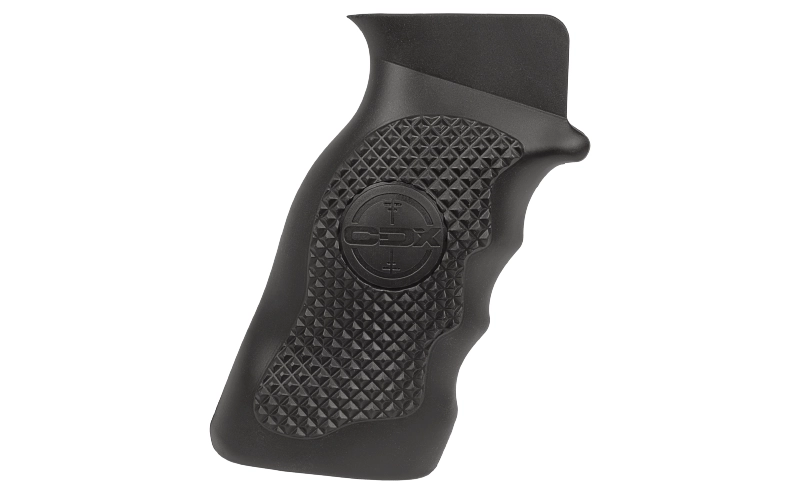

Finger grooved rubberized Cadex grip

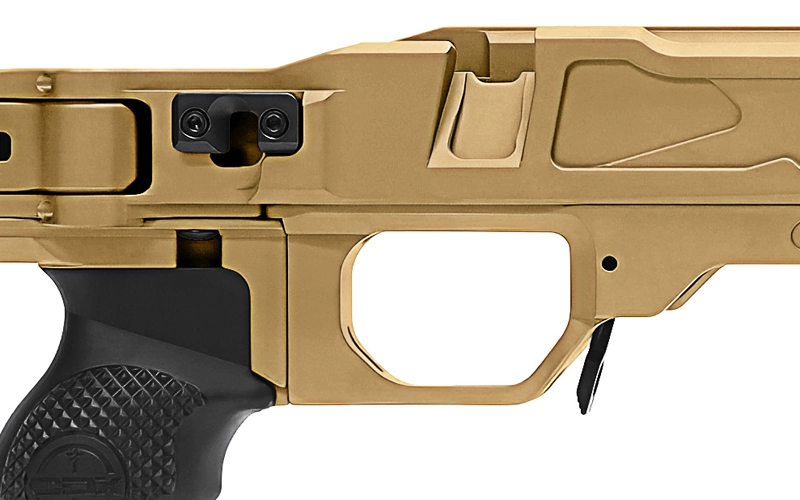

Oversized trigger guard and magazine release for easy manipulation with gloves.
* Other platforms & calibers are available upon request.
* Cadex chassis does not include any magazine. Magazines must be ordered separately.
FAQ
Question : Is the Cadex Strike XS Long Action chassis compatible with .338 Lapua, and what magazine length is required?
Answer : Yes, the Cadex Strike XS chassis is available in a long action configuration compatible with .338 Lapua Magnum.
For .338 Lapua Magnum setups, the required magazine length is typically 3.850 inches. Users should select the appropriate long action Strike XS configuration and ensure their rifle action, magazine system, and cartridge overall length are compatible with the 3.850″ magazine well.
Question : Can the Cadex Strike XS Long Action chassis use a 10-round DSSF CIP-length magazine for cartridges such as .300 PRC or .338 Lapua?
Answer : No, the Cadex Strike XS Long Action chassis is not compatible with DSSF magazines.
The Strike XS Long Action chassis is designed to run SSSF magazines. DSSF magazines are significantly wider and do not fit the Strike XS magazine well. For reference, the SSSF magazine width is approximately 0.7120″, while the DSSF magazine width is approximately 1.0665″.
Because of this width difference, a 10-round DSSF CIP-length magazine cannot be used in the Strike XS Long Action chassis, even if minor modifications are considered. Users should select the appropriate SSSF AICS-pattern magazine for their Strike XS Long Action configuration.
Question : What thumb rest, chassis weights, and ARCA rail accessories are compatible with the Cadex Strike XS chassis?
Answer : The Cadex Strike XS chassis uses its own accessory setup, and some accessories may differ from the Strike Pro chassis.
For the thumb rest, the Strike XS does not use a dedicated thumb rest in the same way as some other chassis models. Most users use the folding hinge area as a “thumbs-up” rest.
For chassis weights, the Strike XS can use side M-LOK weights as well as internal chassis weights, depending on the desired balance and configuration.
For ARCA mounting, Cadex offers both a short ARCA rail option and a longer M-LOK ARCA rail option. These accessories allow users to add ARCA compatibility for tripod, barricade, or positional shooting setups.
